CCI Overview

CUBRID CCI (C Client Interface) driver implements an interface to enable access from C-based application to CUBRID database server through broker. It is also used as back-end infrastructure for creating tools (PHP, ODBC, etc.) which use the CAS application servers. In this environment, the CUBRID broker sends queries received from applications to a database and transfers the result to applications.

It is automatically installed upon CUBRID installation and can be found in the $CUBRID/lib directory. A header file as well as library files is required to use the driver.

Windows

UNIX/Linux

C header file

include/cas_cci.h

include/cas_cci.h

Static library

lib/cascci.lib

lib/libcascci.a

Dynamic library

bin/cascci.dll

lib/libcascci.so

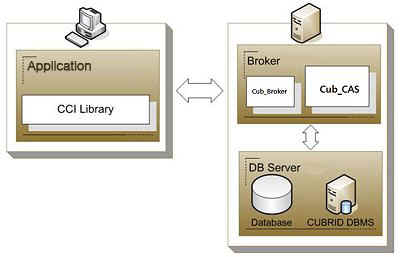

Because CUBRID CCI driver is connected through the CUBRID broker, you can manage it the same way as other interfaces such as JDBC, PHP, ODBC, etc. In fact, CCI provides back-end infrastructure to implement PHP, ODBC, Python, and Ruby interfaces.

../_images/image54.jpg

CCI Programming

Writing CCI Applications

The applications using CCI interact with CUBRID in the process of connecting to CAS, preparing queries, executing queries, handling response, and disconnecting. In each process, CCI communicates with applications through connection handle, query handle, and response handle.

The default value of auto-commit mode can be configured by using CCI_DEFAULT_AUTOCOMMIT which is a broker parameter. If it is omitted, the default value is set to ON. To change auto-commit mode within applications, you should use the cci_set_autocommit() function. If auto-commit mode is OFF, you should explicitly commit or roll back transactions by using the cci_end_tran() function.

General process for writing applications is as follows. For using the prepared statement, additional step binding data to a variable is required; the examples 1 and 2 show the way to implement this.

Note

  • If you want to compile the CCI application on Windows, “WINDOWS” should be defined. Therefore, “-DWINDOWS” option should be defined on the compiler.

  • The database connection in thread-based programming must be used independently each other.

  • In autocommit mode, the transaction is not committed if all results are not fetched after running the SELECT statement. Therefore, although in autocommit mode, you should end the transaction by calling cci_end_tran() if some error occurs during fetching for the resultset.

Example 1

// Example to execute a simple query
// In Linux: gcc -o simple simple.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include "cas_cci.h"
#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR cci_error;
    T_CCI_COL_INFO *col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *query = "select * from code";

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //getting column information when the prepared statement is the SELECT query
    col_info = cci_get_result_info (req, &stmt_type, &col_count);
    if (col_info == NULL)
    {
        printf ("get_result_info error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }
    while (1)
    {

        //Moving the cursor to access a specific tuple of results
        error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
        if (error == CCI_ER_NO_MORE_DATA)
        {
            break;
        }
        if (error < 0)
        {
            printf ("cursor error: %d, %s\n", cci_error.err_code,
                    cci_error.err_msg);
            goto handle_error;
        }

        //Fetching the query result into a client buffer
        error = cci_fetch (req, &cci_error);
        if (error < 0)
        {
            printf ("fetch error: %d, %s\n", cci_error.err_code,
                    cci_error.err_msg);
            goto handle_error;
        }
        for (i = 1; i <= col_count; i++)
        {

            //Getting data from the fetched result
            error = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind);
            if (error < 0)
            {
                printf ("get_data error: %d, %d\n", error, i);
                goto handle_error;
            }
            printf ("%s\t|", data);
        }
        printf ("\n");
    }

    //Closing the request handle
    error = cci_close_req_handle (req);
    if (error < 0)
    {
        printf ("close_req_handle error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Disconnecting with the server
    error = cci_disconnect (con, &cci_error);
    if (error < 0)
    {
        printf ("error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }

    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
    cci_disconnect (con, &cci_error);

    return 1;
}

Example 2

// Example to execute a query with a bind variable
// In Linux: gcc -o cci_bind cci_bind.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include <string.h>
#include "cas_cci.h"
#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR cci_error;
    T_CCI_COL_INFO *col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *query = "select * from nation where name = ?";
    char namebuf[128];

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Binding date into a value
    strcpy (namebuf, "Korea");
    error =
    cci_bind_param (req, 1, CCI_A_TYPE_STR, namebuf, CCI_U_TYPE_STRING,
                    CCI_BIND_PTR);
    if (error < 0)
    {
        printf ("bind_param error: %d ", error);
        goto handle_error;
    }

    //getting column information when the prepared statement is the SELECT query
    col_info = cci_get_result_info (req, &stmt_type, &col_count);
    if (col_info == NULL)
    {
        printf ("get_result_info error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    while (1)
    {

        //Moving the cursor to access a specific tuple of results
        error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
        if (error == CCI_ER_NO_MORE_DATA)
        {
            break;
        }
        if (error < 0)
        {
            printf ("cursor error: %d, %s\n", cci_error.err_code,
                  cci_error.err_msg);
            goto handle_error;
        }

        //Fetching the query result into a client buffer
        error = cci_fetch (req, &cci_error);
        if (error < 0)
        {
            printf ("fetch error: %d, %s\n", cci_error.err_code,
                  cci_error.err_msg);
            goto handle_error;
        }
        for (i = 1; i <= col_count; i++)
        {

            //Getting data from the fetched result
            error = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind);
            if (error < 0)
            {
                printf ("get_data error: %d, %d\n", error, i);
                goto handle_error;
            }
            if (ind == -1)
            {
                printf ("NULL\t");
            }
            else
            {
                printf ("%s\t|", data);
            }
        }
            printf ("\n");
    }

    //Closing the request handle
    error = cci_close_req_handle (req);
    if (error < 0)
    {
        printf ("close_req_handle error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Disconnecting with the server
    error = cci_disconnect (con, &cci_error);
    if (error < 0)
    {
        printf ("error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }

    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
        cci_disconnect (con, &cci_error);
    return 1;
}

Example 3

// Example to use connection/statement pool in CCI
// In Linux: gcc -o cci_pool cci_pool.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include "cas_cci.h"

int main ()
{
    T_CCI_PROPERTIES *ps = NULL;
    T_CCI_DATASOURCE *ds = NULL;
    T_CCI_ERROR err;
    T_CCI_CONN cons;
    int rc = 1, i;

    ps = cci_property_create ();
    if (ps == NULL)
    {
        fprintf (stderr, "Could not create T_CCI_PROPERTIES.\n");
        rc = 0;
        goto cci_pool_end;
    }

    cci_property_set (ps, "user", "dba");
    cci_property_set (ps, "url", "cci:cubrid:localhost:33000:demodb:::");
    cci_property_set (ps, "pool_size", "10");
    cci_property_set (ps, "max_wait", "1200");
    cci_property_set (ps, "pool_prepared_statement", "true");
    cci_property_set (ps, "login_timeout", "300000");
    cci_property_set (ps, "query_timeout", "3000");

    ds = cci_datasource_create (ps, &err);
    if (ds == NULL)
    {
        fprintf (stderr, "Could not create T_CCI_DATASOURCE.\n");
        fprintf (stderr, "E[%d,%s]\n", err.err_code, err.err_msg);
        rc = 0;
        goto cci_pool_end;
    }

    for (i = 0; i < 3; i++)
    {
        cons = cci_datasource_borrow (ds, &err);
        if (cons < 0)
        {
            fprintf (stderr,
                    "Could not borrow a connection from the data source.\n");
            fprintf (stderr, "E[%d,%s]\n", err.err_code, err.err_msg);
            continue;
        }
        // put working code here.
        cci_work (cons);
        cci_datasource_release (ds, cons, &err);

    }

cci_pool_end:
  cci_property_destroy (ps);
  cci_datasource_destroy (ds);

  return 0;
}

// working code
int cci_work (T_CCI_CONN con)
{
    T_CCI_ERROR err;
    char sql[4096];
    int req, res, error, ind;
    int data;

    cci_set_autocommit (con, CCI_AUTOCOMMIT_TRUE);
    cci_set_lock_timeout (con, 100, &err);
    cci_set_isolation_level (con, TRAN_REP_CLASS_COMMIT_INSTANCE, &err);

    error = 0;
    snprintf (sql, 4096, "SELECT host_year FROM record WHERE athlete_code=11744");
    req = cci_prepare (con, sql, 0, &err);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", err.err_code, err.err_msg);
        return error;
    }

    res = cci_execute (req, 0, 0, &err);
    if (res < 0)
    {
        printf ("execute error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    while (1)
    {
    error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &err);
    if (error == CCI_ER_NO_MORE_DATA)
    {
        break;
    }
    if (error < 0)
    {
        printf ("cursor error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    error = cci_fetch (req, &err);
    if (error < 0)
    {
        printf ("fetch error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    error = cci_get_data (req, 1, CCI_A_TYPE_INT, &data, &ind);
    if (error < 0)
    {
        printf ("get data error: %d\n", error);
        goto cci_work_end;
    }
    printf ("%d\n", data);
    }

    error = 1;
cci_work_end:
    cci_close_req_handle (req);
    return error;
}

Configuring Library

Once you have written applications using CCI, you should decide, according to its features, whether to execute CCI as static or dynamic link before you build it. See the table in CCI Overview to decide which library will be used.

The following is an example of Makefile, which makes a link by using the dynamic library on UNIX/Linux.

CC=gcc
CFLAGS = -g -Wall -I. -I$CUBRID/include
LDFLAGS = -L$CUBRID/lib -lcascci -lnsl
TEST_OBJS = test.o
EXES = test
all: $(EXES)
test: $(TEST_OBJS)
    $(CC) -o $@ $(TEST_OBJS) $(LDFLAGS)

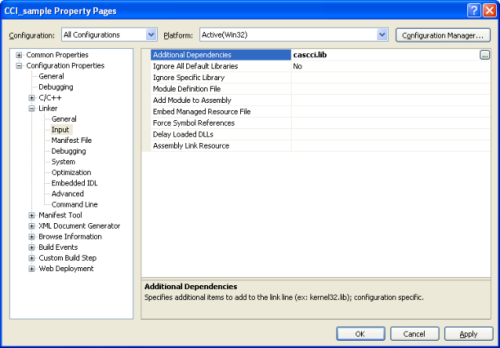

The following image shows configuration to use static library on Windows.

../_images/image55.png

Using BLOB/CLOB

Storing LOB Data

You can create LOB data file and bind the data by using the functions below in CCI applications.

Example

int con = 0; /* connection handle */
int req = 0; /* request handle */
int res;
int n_executed;
int i;
T_CCI_ERROR error;
T_CCI_BLOB blob = NULL;
char data[1024] = "bulabula";

con = cci_connect ("localhost", 33000, "tdb", "PUBLIC", "");
if (con < 0) {
    goto handle_error;
}
req = cci_prepare (con, "insert into doc (doc_id, content) values (?,?)", 0, &error);
if (req< 0)
{
    goto handle_error;
}

res = cci_bind_param (req, 1 /* binding index*/, CCI_A_TYPE_STR, "doc-10", CCI_U_TYPE_STRING, CCI_BIND_PTR);

/* Creating an empty LOB data file */
res = cci_blob_new (con, &blob, &error);
res = cci_blob_write (con, blob, 0 /* start position */, 1024 /* length */, data, &error);

/* Binding BLOB data */
res = cci_bind_param (req, 2 /* binding index*/, CCI_A_TYPE_BLOB, (void *)blob, CCI_U_TYPE_BLOB, CCI_BIND_PTR);

n_executed = cci_execute (req, 0, 0, &error);
if (n_executed < 0)
{
    goto handle_error;
}

/* Commit */
if (cci_end_tran(con, CCI_TRAN_COMMIT, &error) < 0)
{
    goto handle_error;
}

/* Memory free */
cci_blob_free(blob);
return 0;

handle_error:
if (blob != NULL)
{
    cci_blob_free(blob);
}
if (req > 0)
{
    cci_close_req_handle (req);
}
if (con > 0)
{
    cci_disconnect(con, &error);
}
return -1;

Retrieving LOB Data

You can retrieve LOB data by using the following functions in CCI applications. Note that if you enter data in the LOB type column, the actual LOB data is stored in the file located in external storage and Locator value is stored in the LOB type column. Thus, to retrieve the LOB data stored in the file, you should call the cci_blob_read() function but the cci_get_data() function.

  • Retrieving meta data (Locator) in the the LOB type column (related function: cci_get_data())

  • Retrieving the LOB data (related function: cci_blob_read())

  • Freeing memory for the LOB struct: (related function: cci_blob_free())

Example

int con = 0; /* connection handle */
int req = 0; /* request handle */
int ind; /* NULL indicator, 0 if not NULL, -1 if NULL*/
int res;
int i;
T_CCI_ERROR error;
T_CCI_BLOB blob;
char buffer[1024];

con = cci_connect ("localhost", 33000, "image_db", "PUBLIC", "");
if (con < 0)
{
    goto handle_error;
}
req = cci_prepare (con, "select content from doc_t", 0 /*flag*/, &error);
if (req< 0)
{
    goto handle_error;
}

res = cci_execute (req, 0/*flag*/, 0/*max_col_size*/, &error);

while (1) {
    res = cci_cursor (req, 1/* offset */, CCI_CURSOR_CURRENT/* cursor position */, &error);
    if (res == CCI_ER_NO_MORE_DATA)
    {
        break;
    }
    res = cci_fetch (req, &error);

    /* Fetching CLOB Locator */
    res = cci_get_data (req, 1 /* colume index */, CCI_A_TYPE_BLOB,
    (void *)&blob /* BLOB handle */, &ind /* NULL indicator */);
    /* Fetching CLOB data */
    res = cci_blob_read (con, blob, 0 /* start position */, 1024 /* length */, buffer, &error);
    printf ("content = %s\n", buffer);
}

/* Memory free */
cci_blob_free(blob);
res=cci_close_req_handle(req);
res = cci_disconnect (con, &error);
return 0;

handle_error:
if (req > 0)
{
    cci_close_req_handle (req);
}
if (con > 0)
{
    cci_disconnect(con, &error);
}
return -1;

CCI Error Codes and Error Messages

CCI API functions return a negative number as CCI or CAS (broker application server) error codes when an error occurs. The CCI error codes occur in CCI API functions and CAS error codes occur in CAS.

  • All error codes are negative.

  • All error codes and error messages of functions which have “T_CCI_ERROR err_buf” as a parameter can be found on err_buf.err_code and err_buf.err_msg.

  • All error messages of functions which have no “T_CCI_ERROR err_buf” as a parameter can output by using cci_get_err_msg().

  • If the value of error code is between -20002 and -20999, it is caused by CCI API functions.

  • If the value of error code is between -10000 and -10999, it is caused by CAS and transferred by CCI API functions. For CAS errors, see CAS Error.

  • If the value of error code is CCI_ER_DBMS (-20001), it is caused by database server. You can check server error codes in err_buf.err_code of the database error buffer (err_buf). For database server errors, see Database Server Errors.

Warning

If an error occurs in server, the value of CCI_ER_DBMS, which is error code returned by a function may be different from the value of the err_buf.err_code. Except server errors, every error code stored in err_buf is identical to that returned by a function.

Note

CCI and CAS error codes have different values between the earlier version of CUBRID 9.0 and the version of CUBRID 9.0 or later. Therefore, the users who developed the applications by using the error code names must recompile them and the users who developed them by directly assigning error code numbers must recompile them after changing the number values.

The database error buffer (err_buf) is a struct variable of T_CCI_ERROR defined in the cas_cci.h header file. For how to use it, see the example below.

CCI error codes which starting with CCI_ER are defined in enum called T_CCI_ERROR_CODE under the $CUBRID/include/cas_cci.h file. Therefore, to use this error code name in program code, you should include a header file in the upper side of code by entering #include “cas_cci.h”.

The following example shows how to display error messages. In the example, the error code value (req) returned by cci_prepare() is CCI_ER_DBMS. -493 (server error code) is stored in cci_error.err_code and the error message, ‘Syntax: Unknown class “notable”. select * from notable’ is stored in cci_error.err_msg of the database error buffer.

// gcc -o err err.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread
#include <stdio.h>
#include "cas_cci.h"

#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR err_buf;
    char *query = "select * from notable";

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &err_buf);
    if (req < 0)
    {
        if (req == CCI_ER_DBMS)
        {
            printf ("error from server: %d, %s\n", err_buf.err_code, err_buf.err_msg);
        }
        else
        {
            printf ("error from cci or cas: %d, %s\n", err_buf.err_code, err_buf.err_msg);
        }
        goto handle_error;
    }
    // ...
}

The following list shows CCI error codes. For CAS errors, see CAS Error.

Error Code (Error Number)

Error Message

Note

CCI_ER_DBMS (-20001)

CUBRID DBMS Error

Error codes returned by functions when an error occurs in server. The causes of the error can be checked with err_code and err_msg stored in the T_CCI_ERROR struct.

CCI_ER_CON_HANDLE (-20002)

Invalid connection handle

CCI_ER_NO_MORE_MEMORY (-20003)

Memory allocation error

Insufficient memory

CCI_ER_COMMUNICATION (-20004)

Cannot communicate with server

CCI_ER_NO_MORE_DATA (-20005)

Invalid cursor position

CCI_ER_TRAN_TYPE (-20006)

Unknown transaction type

CCI_ER_STRING_PARAM (-20007)

Invalid string argument

An error occurred when sql_stmt is NULL in cci_prepare(), and cci_prepare_and_execute()

CCI_ER_TYPE_CONVERSION (-20008)

Type conversion error

Cannot convert the given value into an actual data type.

CCI_ER_BIND_INDEX (-20009)

Parameter index is out of range

Index that binds data is not valid.

CCI_ER_ATYPE (-20010)

Invalid T_CCI_A_TYPE value

CCI_ER_NOT_BIND (-20011)

Not available

CCI_ER_PARAM_NAME (-20012)

Invalid T_CCI_DB_PARAM value

CCI_ER_COLUMN_INDEX (-20013)

Column index is out of range

CCI_ER_SCHEMA_TYPE (-20014)

Not available

CCI_ER_FILE (-20015)

Cannot open file

Fails to open/read/write a file.

CCI_ER_CONNECT (-20016)

Cannot connect to CUBRID CAS

Cannot connect to CUBRID CAS

CCI_ER_ALLOC_CON_HANDLE (-20017)

Cannot allocate connection handle %

CCI_ER_REQ_HANDLE (-20018)

Cannot allocate request handle %

CCI_ER_INVALID_CURSOR_POS (-20019)

Invalid cursor position

CCI_ER_OBJECT (-20020)

Invalid oid string

CCI_ER_CAS (-20021)

Not available

CCI_ER_HOSTNAME (-20022)

Unknown host name

CCI_ER_OID_CMD (-20023)

Invalid T_CCI_OID_CMD value

CCI_ER_BIND_ARRAY_SIZE (-20024)

Array binding size is not specified

CCI_ER_ISOLATION_LEVEL (-20025)

Unknown transaction isolation level

CCI_ER_SET_INDEX (-20026)

Invalid set index

Invalid index is specified when a set element in the T_CCI_SET struct is retrieved.

CCI_ER_DELETED_TUPLE (-20027)

Current row was deleted %

CCI_ER_SAVEPOINT_CMD (-20028)

Invalid T_CCI_SAVEPOINT_CMD value

Invalid T_CCI_SAVEPOINT_CMD value is used as an argument of the cci_savepoint() function.

CCI_ER_THREAD_RUNNING(-20029)

Invalid T_CCI_SAVEPOINT_CMD value

Invalid T_CCI_SAVEPOINT_CMD value is used as an argument of the cci_savepoint() function.

CCI_ER_INVALID_URL (-20030)

Invalid url string

CCI_ER_INVALID_LOB_READ_POS (-20031)

Invalid lob read position

CCI_ER_INVALID_LOB_HANDLE (-20032)

Invalid lob handle

CCI_ER_NO_PROPERTY (-20033)

Could not find a property

CCI_ER_PROPERTY_TYPE (-20034)

Invalid property type

CCI_ER_INVALID_DATASOURCE (-20035)

Invalid CCI datasource

CCI_ER_DATASOURCE_TIMEOUT (-20036)

All connections are used

CCI_ER_DATASOURCE_TIMEDWAIT (-20037)

pthread_cond_timedwait error

CCI_ER_LOGIN_TIMEOUT (-20038)

Connection timed out

CCI_ER_QUERY_TIMEOUT (-20039)

Request timed out

CCI_ER_RESULT_SET_CLOSED (-20040)

CCI_ER_INVALID_HOLDABILITY (-20041)

Invalid holdability mode. The only accepted values are 0 or 1

CCI_ER_NOT_UPDATABLE (-20042)

Request handle is not updatable

CCI_ER_INVALID_ARGS (-20043)

Invalid argument

CCI_ER_USED_CONNECTION (-20044)

This connection is used already.

C Type Definition

The following shows the structs used in CCI API functions.

Name

Type

Member

Description

T_CCI_ERROR

struct

char err_msg[1024]

Representation of database error info

int err_code

T_CCI_BIT

struct

int size

Representation of bit type

char *buf

T_CCI_DATE

struct

short yr

Representation of datetime, timestamp, date, and time type

short mon

short day

short hh

short mm

short ss

short ms

T_CCI_DATE_TZ

struct

short yr

Representation of date/time types with timezone

short mon

short day

short hh

short mm

short ss

short ms

char tz[64]

T_CCI_SET

void*

Representation of set type

T_CCI_COL_INFO

struct

T_CCI_U_EXT_TYPE type

Representation of column information for the SELECT statement

char is_non_null

short scale

int precision

char *col_name

char *real_attr

char *class_name

T_CCI_QUERY_RESULT

struct

int result_count

Results of batch execution

int stmt_type

char *err_msg

char oid[32]

T_CCI_PARAM_INFO

struct

T_CCI_PARAM_MODE mode

Representation of input parameter info

T_CCI_U_EXT_TYPE type

short scale

int precision

T_CCI_U_EXT_TYPE

unsigned char

Database type info

T_CCI_U_TYPE

enum

CCI_U_TYPE_UNKNOWN

Database type info

CCI_U_TYPE_NULL

CCI_U_TYPE_CHAR

CCI_U_TYPE_STRING

CCI_U_TYPE_BIT

CCI_U_TYPE_VARBIT

CCI_U_TYPE_NUMERIC

CCI_U_TYPE_INT

CCI_U_TYPE_SHORT

CCI_U_TYPE_FLOAT

CCI_U_TYPE_DOUBLE

CCI_U_TYPE_DATE

CCI_U_TYPE_TIME

CCI_U_TYPE_TIMESTAMP

CCI_U_TYPE_SET

CCI_U_TYPE_MULTISET

CCI_U_TYPE_SEQUENCE

CCI_U_TYPE_OBJECT

CCI_U_TYPE_BIGINT

CCI_U_TYPE_DATETIME

CCI_U_TYPE_BLOB

CCI_U_TYPE_CLOB

CCI_U_TYPE_ENUM

CCI_U_TYPE_UINT

CCI_U_TYPE_USHORT

CCI_U_TYPE_UBIGINT

CCI_U_TYPE_TIMESTAMPTZ

CCI_U_TYPE_TIMESTAMPLTZ

CCI_U_TYPE_DATETIMETZ

CCI_U_TYPE_DATETIMELTZ

T_CCI_A_TYPE

enum

CCI_A_TYPE_STR

Representation of type info used in API

CCI_A_TYPE_INT

CCI_A_TYPE_FLOAT

CCI_A_TYPE_DOUBLE

CCI_A_TYPE_BIT

CCI_A_TYPE_DATE

CCI_A_TYPE_SET

CCI_A_TYPE_BIGINT

CCI_A_TYPE_BLOB

CCI_A_TYPE_CLOB

CCI_A_TYPE_CLOB

CCI_A_TYPE_REQ_HANDLE

CCI_A_TYPE_UINT

CCI_A_TYPE_UBIGINT

CCI_A_TYPE_DATE_TZ

CCI_A_TYPE_UINT

T_CCI_DB_PARAM

enum

CCI_PARAM_ISOLATION_LEVEL

System parameter names

CCI_PARAM_LOCK_TIMEOUT

CCI_PARAM_MAX_STRING_LENGTH

CCI_PARAM_AUTO_COMMIT

T_CCI_SCH_TYPE

enum

CCI_SCH_CLASS

CCI_SCH_VCLASS

CCI_SCH_QUERY_SPEC

CCI_SCH_ATTRIBUTE

CCI_SCH_CLASS_ATTRIBUTE

CCI_SCH_METHOD

CCI_SCH_CLASS_METHOD

CCI_SCH_METHOD_FILE

CCI_SCH_SUPERCLASS

CCI_SCH_SUBCLASS

CCI_SCH_CONSTRAIT

CCI_SCH_TRIGGER

CCI_SCH_CLASS_PRIVILEGE

CCI_SCH_ATTR_PRIVILEGE

CCI_SCH_DIRECT_SUPER_CLASS

CCI_SCH_PRIMARY_KEY

CCI_SCH_IMPORTED_KEYS

CCI_SCH_EXPORTED_KEYS

CCI_SCH_CROSS_REFERENCE

T_CCI_CUBRID_STMT

enum

CUBRID_STMT_ALTER_CLASS

CUBRID_STMT_ALTER_SERIAL

CUBRID_STMT_COMMIT_WORK

CUBRID_STMT_REGISTER_DATABASE

CUBRID_STMT_CREATE_CLASS

CUBRID_STMT_CREATE_INDEX

CUBRID_STMT_CREATE_TRIGGER

CUBRID_STMT_CREATE_SERIAL

CUBRID_STMT_DROP_DATABASE

CUBRID_STMT_DROP_CLASS

CUBRID_STMT_DROP_INDEX

CUBRID_STMT_DROP_LABEL

CUBRID_STMT_DROP_TRIGGER

CUBRID_STMT_DROP_SERIAL

CUBRID_STMT_EVALUATE

CUBRID_STMT_RENAME_CLASS

CUBRID_STMT_ROLLBACK_WORK

CUBRID_STMT_GRANT

CUBRID_STMT_REVOKE

CUBRID_STMT_STATISTICS

CUBRID_STMT_INSERT

CUBRID_STMT_SELECT

CUBRID_STMT_UPDATE

CUBRID_STMT_DELETE

CUBRID_STMT_CALL

CUBRID_STMT_GET_ISO_LVL

CUBRID_STMT_GET_TIMEOUT

CUBRID_STMT_GET_OPT_LVL

CUBRID_STMT_SET_OPT_LVL

CUBRID_STMT_SCOPE

CUBRID_STMT_GET_TRIGGER

CUBRID_STMT_SET_TRIGGER

CUBRID_STMT_SAVEPOINT

CUBRID_STMT_PREPARE

CUBRID_STMT_ATTACH

CUBRID_STMT_USE

CUBRID_STMT_REMOVE_TRIGGER

CUBRID_STMT_RENAME_TRIGGER

CUBRID_STMT_ON_LDB

CUBRID_STMT_GET_LDB

CUBRID_STMT_SET_LDB

CUBRID_STMT_GET_STATS

CUBRID_STMT_CREATE_USER

CUBRID_STMT_DROP_USER

CUBRID_STMT_ALTER_USER

CUBRID_STMT_SET_SYS_PARAMS

CUBRID_STMT_ALTER_INDEX

CUBRID_STMT_CREATE_STORED_PROCEDURE

CUBRID_STMT_DROP_STORED_PROCEDURE

CUBRID_STMT_PREPARE_STATEMENT

CUBRID_STMT_EXECUTE_PREPARE

CUBRID_STMT_DEALLOCATE_PREPARE

CUBRID_STMT_TRUNCATE

CUBRID_STMT_DO

CUBRID_STMT_SELECT_UPDATE

CUBRID_STMT_SET_SESSION_VARIABLES

CUBRID_STMT_DROP_SESSION_VARIABLES

CUBRID_STMT_MERGE

CUBRID_STMT_SET_NAMES

CUBRID_STMT_ALTER_STORED_PROCEDURE

CUBRID_STMT_KILL

T_CCI_CURSOR_POS

enum

CCI_CURSOR_FIRST

CCI_CURSOR_CURRENT

CCI_CURSOR_LAST

T_CCI_TRAN_ISOLATION

enum

TRAN_READ_COMMITTED

TRAN_REPEATABLE_READ

TRAN_SERIALIZABLE

T_CCI_PARAM_MODE

enum

CCI_PARAM_MODE_UNKNOWN

CCI_PARAM_MODE_IN

CCI_PARAM_MODE_OUT

CCI_PARAM_MODE_INOUT

Note

If a string longer than defined max length is inserted (INSERT) or updated (UPDATE), the string will be truncated.

CCI Sample Program

The sample program shows how to write a CCI application by using the demodb database which is included with the CUBRID installation package. You can practice the ways to connect to CAS, prepare queries, execute queries, handle response, disconnect from CAS, etc. by following sample program below. In the sample program, the dynamic link on Linux environment is used.

The code below shows information about olympic table schema in the demodb database which is used for sample program.

csql> ;sc olympic

=== <Help: Schema of a Class> ===


 <Class Name>

     olympic

 <Attributes>

     host_year            INTEGER NOT NULL
     host_nation          CHARACTER VARYING(40) NOT NULL
     host_city            CHARACTER VARYING(20) NOT NULL
     opening_date         DATE NOT NULL
     closing_date         DATE NOT NULL
     mascot               CHARACTER VARYING(20)
     slogan               CHARACTER VARYING(40)
     introduction         CHARACTER VARYING(1500)

 <Constraints>

     PRIMARY KEY pk_olympic_host_year ON olympic (host_year)

Preparing

Make sure that the demodb database and the broker are running before you execute the sample program. You can start the demodb database and the broker by executing the cubrid utility. The code below shows how to run a database server and broker by executing the cubrid utility.

[tester@testdb ~]$ cubrid server start demodb
@ cubrid master start
++ cubrid master start: success
@ cubrid server start: demodb

This may take a long time depending on the amount of recovery works to do.

CUBRID 9.2

++ cubrid server start: success
[tester@testdb ~]$ cubrid broker start
@ cubrid broker start
++ cubrid broker start: success

Building

With the program source and the Makefile prepared, executing make will create an executable file named test. If you use a static library, there is no need to deploy additional files and the execution will be faster. However, it increases the program size and memory usage. If you use a dynamic library, there will be some performance overhead but the program size and memory usage can be optimized.

The code below a command line that makes a test program build by using a dynamic library instead of using make on Linux.

cc -o test test.c -I$CUBRID/include -L$CUBRID/lib -lnsl -lcascci

Sample Code

#include <stdio.h>
#include <cas_cci.h>
char *cci_client_name = "test";
int main (int argc, char *argv[])
{
    int con = 0, req = 0, col_count = 0, res, ind, i;
    T_CCI_ERROR error;
    T_CCI_COL_INFO *res_col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *buffer, db_ver[16];
    printf("Program started!\n");
    if ((con=cci_connect("localhost", 30000, "demodb", "PUBLIC", ""))<0) {
        printf( "%s(%d): cci_connect fail\n", __FILE__, __LINE__);
        return -1;
    }

    if ((res=cci_get_db_version(con, db_ver, sizeof(db_ver)))<0) {
        printf( "%s(%d): cci_get_db_version fail\n", __FILE__, __LINE__);
        goto handle_error;
    }
    printf("DB Version is %s\n",db_ver);
    if ((req=cci_prepare(con, "select * from event", 0,&error))<0) {
        if (req < 0) {
            printf( "%s(%d): cci_prepare fail(%d)\n", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }
    printf("Prepare ok!(%d)\n",req);
    res_col_info = cci_get_result_info(req, &stmt_type, &col_count);
    if (!res_col_info) {
        printf( "%s(%d): cci_get_result_info fail\n", __FILE__, __LINE__);
        goto handle_error;
    }

    printf("Result column information\n"
           "========================================\n");
    for (i=1; i<=col_count; i++) {
        printf("name:%s  type:%d(precision:%d scale:%d)\n",
            CCI_GET_RESULT_INFO_NAME(res_col_info, i),
            CCI_GET_RESULT_INFO_TYPE(res_col_info, i),
            CCI_GET_RESULT_INFO_PRECISION(res_col_info, i),
            CCI_GET_RESULT_INFO_SCALE(res_col_info, i));
    }
    printf("========================================\n");
    if ((res=cci_execute(req, 0, 0, &error))<0) {
        if (req < 0) {
            printf( "%s(%d): cci_execute fail(%d)\n", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }

    while (1) {
        res = cci_cursor(req, 1, CCI_CURSOR_CURRENT, &error);
        if (res == CCI_ER_NO_MORE_DATA) {
            printf("Query END!\n");
            break;
        }
        if (res<0) {
            if (req < 0) {
                printf( "%s(%d): cci_cursor fail(%d)\n", __FILE__, __LINE__,error.err_code);
            }
            goto handle_error;
        }

        if ((res=cci_fetch(req, &error))<0) {
            if (res < 0) {
                printf( "%s(%d): cci_fetch fail(%d)\n", __FILE__, __LINE__,error.err_code);
            }
            goto handle_error;
        }

        for (i=1; i<=col_count; i++) {
            if ((res=cci_get_data(req, i, CCI_A_TYPE_STR, &buffer, &ind))<0) {
                printf( "%s(%d): cci_get_data fail\n", __FILE__, __LINE__);
                goto handle_error;
            }
            printf("%s \t|", buffer);
        }
        printf("\n");
    }
    if ((res=cci_close_req_handle(req))<0) {
        printf( "%s(%d): cci_close_req_handle fail", __FILE__, __LINE__);
       goto handle_error;
    }
    if ((res=cci_disconnect(con, &error))<0) {
        if (res < 0) {
            printf( "%s(%d): cci_disconnect fail(%d)", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }
    printf("Program ended!\n");
    return 0;

    handle_error:
    if (req > 0)
        cci_close_req_handle(req);
    if (con > 0)
        cci_disconnect(con, &error);
    printf("Program failed!\n");
    return -1;
}
