CCI Driver

CCI Overview

CUBRID CCI (CCI Client Interface) driver implements an interface to enable access from C-based application to CUBRID database server through broker. It is also used as back-end infrastructure for creating tools (PHP, ODBC, etc.) which use the CAS application servers. In this environment, the CUBRID broker sends queries received from applications to a database and transfers the result to applications.

It is automatically installed upon CUBRID installation and can be found in the $CUBRID/lib directory. A header file as well as library files is required to use the driver.

  Windows UNIX/Linux
C header file include/cas_cci.h include/cas_cci.h
Static library lib/cascci.lib lib/libcascci.a
Dynamic library bin/cascci.dll lib/libcascci.so

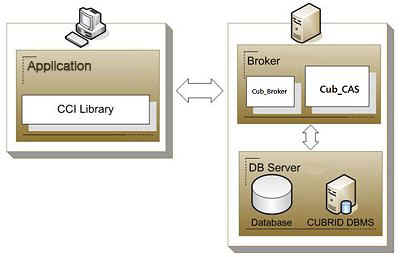

Because CUBRID CCI driver is connected through the CUBRID broker, you can manage it the same way as other interfaces such as JDBC, PHP, ODBC, etc. In fact, CCI provides back-end infrastructure to implement PHP, ODBC, Python, and Ruby interfaces.

../_images/image54.jpg

To download CCI driver or get the latest information, click http://www.cubrid.org/wiki_apis/entry/cubrid-cci-driver .

CCI Programming

Writing CCI Applications

The applications using CCI interact with CUBRID in the process of connecting to CAS, preparing queries, executing queries, handling response, and disconnecting. In each process, CCI communicates with applications through connection handle, query handle, and response handle.

The default value of auto-commit mode can be configured by using CCI_DEFAULT_AUTOCOMMIT which is a broker parameter. If it is omitted, the default value is set to ON. To change auto-commit mode within applications, you should use the cci_set_autocommit() function. If auto-commit mode is OFF, you should explicitly commit or roll back transactions by using the cci_end_tran() function.

General process for writing applications is as follows. For using the prepared statement, additional step binding data to a variable is required; the examples 1 and 2 show the way to implement this.

Note

  • If you want to compile the CCI application on Windows, "WINDOWS" should be defined. Therefore, "-DWINDOWS" option should be defined on the compiler.
  • The database connection in thread-based programming must be used independently each other.
  • In autocommit mode, the transaction is not committed if all results are not fetched after running the SELECT statement. Therefore, although in autocommit mode, you should end the transaction by calling cci_end_tran() if some error occurs during fetching for the resultset.

Example 1

// Example to execute a simple query
// In Linux: gcc -o simple simple.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include "cas_cci.h"
#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR cci_error;
    T_CCI_COL_INFO *col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *query = "select * from code";

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //getting column information when the prepared statement is the SELECT query
    col_info = cci_get_result_info (req, &stmt_type, &col_count);
    if (col_info == NULL)
    {
        printf ("get_result_info error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }
    while (1)
    {

        //Moving the cursor to access a specific tuple of results
        error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
        if (error == CCI_ER_NO_MORE_DATA)
        {
            break;
        }
        if (error < 0)
        {
            printf ("cursor error: %d, %s\n", cci_error.err_code,
                    cci_error.err_msg);
            goto handle_error;
        }

        //Fetching the query result into a client buffer
        error = cci_fetch (req, &cci_error);
        if (error < 0)
        {
            printf ("fetch error: %d, %s\n", cci_error.err_code,
                    cci_error.err_msg);
            goto handle_error;
        }
        for (i = 1; i <= col_count; i++)
        {

            //Getting data from the fetched result
            error = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind);
            if (error < 0)
            {
                printf ("get_data error: %d, %d\n", error, i);
                goto handle_error;
            }
            printf ("%s\t|", data);
        }
        printf ("\n");
    }

    //Closing the request handle
    error = cci_close_req_handle (req);
    if (error < 0)
    {
        printf ("close_req_handle error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Disconnecting with the server
    error = cci_disconnect (con, &cci_error);
    if (error < 0)
    {
        printf ("error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }

    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
    cci_disconnect (con, &cci_error);

    return 1;
}

Example 2

// Example to execute a query with a bind variable
// In Linux: gcc -o cci_bind cci_bind.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include <string.h>
#include "cas_cci.h"
#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR cci_error;
    T_CCI_COL_INFO *col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *query = "select * from nation where name = ?";
    char namebuf[128];

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Binding date into a value
    strcpy (namebuf, "Korea");
    error =
    cci_bind_param (req, 1, CCI_A_TYPE_STR, namebuf, CCI_U_TYPE_STRING,
                    CCI_BIND_PTR);
    if (error < 0)
    {
        printf ("bind_param error: %d ", error);
        goto handle_error;
    }

    //getting column information when the prepared statement is the SELECT query
    col_info = cci_get_result_info (req, &stmt_type, &col_count);
    if (col_info == NULL)
    {
        printf ("get_result_info error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code,
              cci_error.err_msg);
        goto handle_error;
    }

    while (1)
    {

        //Moving the cursor to access a specific tuple of results
        error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
        if (error == CCI_ER_NO_MORE_DATA)
        {
            break;
        }
        if (error < 0)
        {
            printf ("cursor error: %d, %s\n", cci_error.err_code,
                  cci_error.err_msg);
            goto handle_error;
        }

        //Fetching the query result into a client buffer
        error = cci_fetch (req, &cci_error);
        if (error < 0)
        {
            printf ("fetch error: %d, %s\n", cci_error.err_code,
                  cci_error.err_msg);
            goto handle_error;
        }
        for (i = 1; i <= col_count; i++)
        {

            //Getting data from the fetched result
            error = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind);
            if (error < 0)
            {
                printf ("get_data error: %d, %d\n", error, i);
                goto handle_error;
            }
            if (ind == -1)
            {
                printf ("NULL\t");
            }
            else
            {
                printf ("%s\t|", data);
            }
        }
            printf ("\n");
    }

    //Closing the request handle
    error = cci_close_req_handle (req);
    if (error < 0)
    {
        printf ("close_req_handle error: %d, %s\n", cci_error.err_code,
                cci_error.err_msg);
        goto handle_error;
    }

    //Disconnecting with the server
    error = cci_disconnect (con, &cci_error);
    if (error < 0)
    {
        printf ("error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }

    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
        cci_disconnect (con, &cci_error);
    return 1;
}

Example 3

// Example to use connection/statement pool in CCI
// In Linux: gcc -o cci_pool cci_pool.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include "cas_cci.h"

int main ()
{
    T_CCI_PROPERTIES *ps = NULL;
    T_CCI_DATASOURCE *ds = NULL;
    T_CCI_ERROR err;
    T_CCI_CONN cons;
    int rc = 1, i;

    ps = cci_property_create ();
    if (ps == NULL)
    {
        fprintf (stderr, "Could not create T_CCI_PROPERTIES.\n");
        rc = 0;
        goto cci_pool_end;
    }

    cci_property_set (ps, "user", "dba");
    cci_property_set (ps, "url", "cci:cubrid:localhost:33000:demodb:::");
    cci_property_set (ps, "pool_size", "10");
    cci_property_set (ps, "max_wait", "1200");
    cci_property_set (ps, "pool_prepared_statement", "true");
    cci_property_set (ps, "login_timeout", "300000");
    cci_property_set (ps, "query_timeout", "3000");

    ds = cci_datasource_create (ps, &err);
    if (ds == NULL)
    {
        fprintf (stderr, "Could not create T_CCI_DATASOURCE.\n");
        fprintf (stderr, "E[%d,%s]\n", err.err_code, err.err_msg);
        rc = 0;
        goto cci_pool_end;
    }

    for (i = 0; i < 3; i++)
    {
        cons = cci_datasource_borrow (ds, &err);
        if (cons < 0)
        {
            fprintf (stderr,
                    "Could not borrow a connection from the data source.\n");
            fprintf (stderr, "E[%d,%s]\n", err.err_code, err.err_msg);
            continue;
        }
        // put working code here.
        cci_work (cons);
        cci_datasource_release (ds, cons, &err);

    }

cci_pool_end:
  cci_property_destroy (ps);
  cci_datasource_destroy (ds);

  return 0;
}

// working code
int cci_work (T_CCI_CONN con)
{
    T_CCI_ERROR err;
    char sql[4096];
    int req, res, error, ind;
    int data;

    cci_set_autocommit (con, CCI_AUTOCOMMIT_TRUE);
    cci_set_lock_timeout (con, 100, &err);
    cci_set_isolation_level (con, TRAN_REP_CLASS_COMMIT_INSTANCE, &err);

    error = 0;
    snprintf (sql, 4096, "SELECT host_year FROM record WHERE athlete_code=11744");
    req = cci_prepare (con, sql, 0, &err);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", err.err_code, err.err_msg);
        return error;
    }

    res = cci_execute (req, 0, 0, &err);
    if (res < 0)
    {
        printf ("execute error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    while (1)
    {
    error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &err);
    if (error == CCI_ER_NO_MORE_DATA)
    {
        break;
    }
    if (error < 0)
    {
        printf ("cursor error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    error = cci_fetch (req, &err);
    if (error < 0)
    {
        printf ("fetch error: %d, %s\n", err.err_code, err.err_msg);
        goto cci_work_end;
    }

    error = cci_get_data (req, 1, CCI_A_TYPE_INT, &data, &ind);
    if (error < 0)
    {
        printf ("get data error: %d\n", error);
        goto cci_work_end;
    }
    printf ("%d\n", data);
    }

    error = 1;
cci_work_end:
    cci_close_req_handle (req);
    return error;
}

Configuring Library

Once you have written applications using CCI, you should decide, according to its features, whether to execute CCI as static or dynamic link before you build it. See the table in CCI Overview to decide which library will be used.

The following is an example of Makefile, which makes a link by using the dynamic library on UNIX/Linux.

CC=gcc
CFLAGS = -g -Wall -I. -I$CUBRID/include
LDFLAGS = -L$CUBRID/lib -lcascci -lnsl
TEST_OBJS = test.o
EXES = test
all: $(EXES)
test: $(TEST_OBJS)
    $(CC) -o $@ $(TEST_OBJS) $(LDFLAGS)

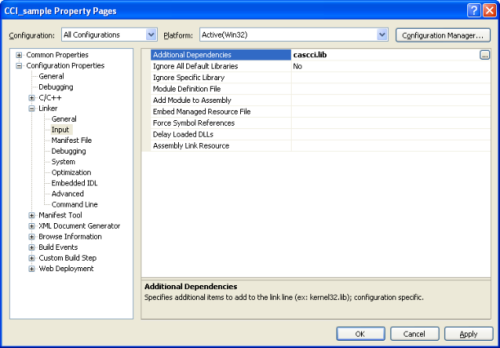

The following image shows configuration to use static library on Windows.

../_images/image55.png

Using BLOB/CLOB

Storing LOB Data

You can create LOB data file and bind the data by using the functions below in CCI applications.

Example

int con = 0; /* connection handle */
int req = 0; /* request handle */
int res;
int n_executed;
int i;
T_CCI_ERROR error;
T_CCI_BLOB blob = NULL;
char data[1024] = "bulabula";

con = cci_connect ("localhost", 33000, "tdb", "PUBLIC", "");
if (con < 0) {
    goto handle_error;
}
req = cci_prepare (con, "insert into doc (doc_id, content) values (?,?)", 0, &error);
if (req< 0)
{
    goto handle_error;
}

res = cci_bind_param (req, 1 /* binding index*/, CCI_A_TYPE_STR, "doc-10", CCI_U_TYPE_STRING, CCI_BIND_PTR);

/* Creating an empty LOB data file */
res = cci_blob_new (con, &blob, &error);
res = cci_blob_write (con, blob, 0 /* start position */, 1024 /* length */, data, &error);

/* Binding BLOB data */
res = cci_bind_param (req, 2 /* binding index*/, CCI_A_TYPE_BLOB, (void *)blob, CCI_U_TYPE_BLOB, CCI_BIND_PTR);

n_executed = cci_execute (req, 0, 0, &error);
if (n_executed < 0)
{
    goto handle_error;
}

/* Commit */
if (cci_end_tran(con, CCI_TRAN_COMMIT, &error) < 0)
{
    goto handle_error;
}

/* Memory free */
cci_blob_free(blob);
return 0;

handle_error:
if (blob != NULL)
{
    cci_blob_free(blob);
}
if (req > 0)
{
    cci_close_req_handle (req);
}
if (con > 0)
{
    cci_disconnect(con, &error);
}
return -1;

Retrieving LOB Data

You can retrieve LOB data by using the following functions in CCI applications. Note that if you enter data in the LOB type column, the actual LOB data is stored in the file located in external storage and Locator value is stored in the LOB type column. Thus, to retrieve the LOB data stored in the file, you should call the cci_blob_read() function but the cci_get_data() function.

  • Retrieving meta data (Locator) in the the LOB type column (related function: cci_get_data())
  • Retrieving the LOB data (related function: cci_blob_read())
  • Freeing memory for the LOB struct: (related function: cci_blob_free())

Example

int con = 0; /* connection handle */
int req = 0; /* request handle */
int ind; /* NULL indicator, 0 if not NULL, -1 if NULL*/
int res;
int i;
T_CCI_ERROR error;
T_CCI_BLOB blob;
char buffer[1024];

con = cci_connect ("localhost", 33000, "image_db", "PUBLIC", "");
if (con < 0)
{
    goto handle_error;
}
req = cci_prepare (con, "select content from doc_t", 0 /*flag*/, &error);
if (req< 0)
{
    goto handle_error;
}

res = cci_execute (req, 0/*flag*/, 0/*max_col_size*/, &error);

while (1) {
    res = cci_cursor (req, 1/* offset */, CCI_CURSOR_CURRENT/* cursor position */, &error);
    if (res == CCI_ER_NO_MORE_DATA)
    {
        break;
    }
    res = cci_fetch (req, &error);

    /* Fetching CLOB Locator */
    res = cci_get_data (req, 1 /* colume index */, CCI_A_TYPE_BLOB,
    (void *)&blob /* BLOB handle */, &ind /* NULL indicator */);
    /* Fetching CLOB data */
    res = cci_blob_read (con, blob, 0 /* start position */, 1024 /* length */, buffer, &error);
    printf ("content = %s\n", buffer);
}

/* Memory free */
cci_blob_free(blob);
res=cci_close_req_handle(req);
res = cci_disconnect (con, &error);
return 0;

handle_error:
if (req > 0)
{
    cci_close_req_handle (req);
}
if (con > 0)
{
    cci_disconnect(con, &error);
}
return -1;

CCI Error Codes and Error Messages

CCI API functions return a negative number as CCI or CAS (broker application server) error codes when an error occurs. The CCI error codes occur in CCI API functions and CAS error codes occur in CAS.

  • All error codes are negative.
  • All error codes and error messages of functions which have "T_CCI_ERROR err_buf" as a parameter can be found on err_buf.err_code and err_buf.err_msg.
  • All error messages of functions which have no "T_CCI_ERROR err_buf" as a parameter can output by using cci_get_err_msg().
  • If the value of error code is between -20002 and -20999, it is caused by CCI API functions.
  • If the value of error code is between -10000 and -10999, it is caused by CAS and transferred by CCI API functions. For CAS errors, see CAS Error.
  • If the value of error code is CCI_ER_DBMS (-20001), it is caused by database server. You can check server error codes in err_buf.err_code of the database error buffer (err_buf). For database server errors, see Database Server Errors.

Warning

If an error occurs in server, the value of CCI_ER_DBMS, which is error code returned by a function may be different from the value of the err_buf.err_code. Except server errors, every error code stored in err_buf is identical to that returned by a function.

Note

CCI and CAS error codes have different values between the earlier version of CUBRID 9.0 and the version of CUBRID 9.0 or later. Therefore, the users who developed the applications by using the error code names must recompile them and the users who developed them by directly assigning error code numbers must recompile them after changing the number values.

The database error buffer (err_buf) is a struct variable of T_CCI_ERROR defined in the cas_cci.h header file. For how to use it, see the example below.

CCI error codes which starting with CCI_ER are defined in enum called T_CCI_ERROR_CODE under the $CUBRID/include/cas_cci.h file. Therefore, to use this error code name in program code, you should include a header file in the upper side of code by entering #include "cas_cci.h".

The following example shows how to display error messages. In the example, the error code value (req) returned by cci_prepare() is CCI_ER_DBMS. -493 (server error code) is stored in cci_error.err_code and the error message, 'Syntax: Unknown class "notable". select * from notable' is stored in cci_error.err_msg of the database error buffer.

// gcc -o err err.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread
#include <stdio.h>
#include "cas_cci.h"

#define BUFSIZE  (1024)

int
main (void)
{
    int con = 0, req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR err_buf;
    char *query = "select * from notable";

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &err_buf);
    if (req < 0)
    {
        if (req == CCI_ER_DBMS)
        {
            printf ("error from server: %d, %s\n", err_buf.err_code, err_buf.err_msg);
        }
        else
        {
            printf ("error from cci or cas: %d, %s\n", err_buf.err_code, err_buf.err_msg);
        }
        goto handle_error;
    }
    // ...
}

The following list shows CCI error codes. For CAS errors, see CAS Error.

Error Code Error Message Note
CCI_ER_DBMS CUBRID DBMS Error Error codes returned by functions when an error occurs in server. The causes of the error can be checked with err_code and err_msg stored in the T_CCI_ERROR struct.
CCI_ER_CON_HANDLE Invalid connection handle
CCI_ER_NO_MORE_MEMORY Memory allocation error Insufficient memory
CCI_ER_COMMUNICATION Cannot communicate with server
CCI_ER_NO_MORE_DATA Invalid cursor position
CCI_ER_TRAN_TYPE Unknown transaction type
CCI_ER_STRING_PARAM Invalid string argument An error occurred when sql_stmt is NULL in cci_prepare(), and cci_prepare_and_execute()
CCI_ER_TYPE_CONVERSION Type conversion error Cannot convert the given value into an actual data type.
CCI_ER_BIND_INDEX Parameter index is out of range Index that binds data is not valid.
CCI_ER_ATYPE Invalid T_CCI_A_TYPE value
CCI_ER_NOT_BIND   Not available
CCI_ER_PARAM_NAME Invalid T_CCI_DB_PARAM value
CCI_ER_COLUMN_INDEX Column index is out of range
CCI_ER_SCHEMA_TYPE   Not available
CCI_ER_FILE Cannot open file Fails to open/read/write a file.
CCI_ER_CONNECT Cannot connect to CUBRID CAS Cannot connect to CUBRID CAS
CCI_ER_ALLOC_CON_HANDLE Cannot allocate connection handle %
CCI_ER_REQ_HANDLE Cannot allocate request handle %
CCI_ER_INVALID_CURSOR_POS Invalid cursor position
CCI_ER_OBJECT Invalid oid string
CCI_ER_CAS   Not available
CCI_ER_HOSTNAME Unknown host name
CCI_ER_OID_CMD Invalid T_CCI_OID_CMD value
CCI_ER_BIND_ARRAY_SIZE Array binding size is not specified
CCI_ER_ISOLATION_LEVEL Unknown transaction isolation level
CCI_ER_SET_INDEX Invalid set index Invalid index is specified when a set element in the T_CCI_SET struct is retrieved.
CCI_ER_DELETED_TUPLE Current row was deleted %
CCI_ER_SAVEPOINT_CMD Invalid T_CCI_SAVEPOINT_CMD value Invalid T_CCI_SAVEPOINT_CMD value is used as an argument of the cci_savepoint() function.
CCI_ER_INVALID_URL Invalid url string
CCI_ER_INVALID_LOB_READ_POS Invalid lob read position
CCI_ER_INVALID_LOB_HANDLE Invalid lob handle
CCI_ER_NO_PROPERTY Could not find a property
CCI_ER_PROPERTY_TYPE Invalid property type
CCI_ER_INVALID_DATASOURCE Invalid CCI datasource
CCI_ER_DATASOURCE_TIMEOUT All connections are used
CCI_ER_DATASOURCE_TIMEDWAIT pthread_cond_timedwait error
CCI_ER_LOGIN_TIMEOUT Connection timed out
CCI_ER_QUERY_TIMEOUT Request timed out
CCI_ER_RESULT_SET_CLOSED
CCI_ER_INVALID_HOLDABILITY Invalid holdability mode. The only accepted values are 0 or 1
CCI_ER_NOT_UPDATABLE Request handle is not updatable
CCI_ER_INVALID_ARGS Invalid argument
CCI_ER_USED_CONNECTION This connection is used already.

C Type Definition

The following shows the structs used in CCI API functions.

Name Type Member Description
T_CCI_ERROR struct char err_msg[1024] Representation of database error info
int err_code
T_CCI_BIT struct int size Representation of bit type
char *buf
T_CCI_DATE struct short yr Representation of timestamp, date, and time type
short mon
short day
short hh
short mm
short ss
short ms
T_CCI_SET void*   Representation of set type
T_CCI_COL_INFO struct T_CCI_U_TYPE type Representation of column information for the SELECT statement
char is_non_null
short scale
int precision
char *col_name
char *real_attr
char *class_name
T_CCI_QUERY_RESULT struct int result_count Results of batch execution
int stmt_type
char *err_msg
char oid[32]
T_CCI_PARAM_INFO struct T_CCI_PARAM_MODE mode Representation of input parameter info
T_CCI_U_TYPE type
short scale
int precision
T_CCI_U_TYPE enum CCI_U_TYPE_UNKNOWN Database type info
CCI_U_TYPE_NULL
CCI_U_TYPE_CHAR
CCI_U_TYPE_STRING
CCI_U_TYPE_BIT
CCI_U_TYPE_VARBIT
CCI_U_TYPE_NUMERIC
CCI_U_TYPE_INT
CCI_U_TYPE_SHORT
CCI_U_TYPE_FLOAT
CCI_U_TYPE_DOUBLE
CCI_U_TYPE_DATE
CCI_U_TYPE_TIME
CCI_U_TYPE_TIMESTAMP
CCI_U_TYPE_SET
CCI_U_TYPE_MULTISET
CCI_U_TYPE_SEQUENCE
CCI_U_TYPE_OBJECT
CCI_U_TYPE_BIGINT
CCI_U_TYPE_DATETIME
CCI_U_TYPE_BLOB
CCI_U_TYPE_CLOB
CCI_U_TYPE_ENUM
T_CCI_A_TYPE enum CCI_A_TYPE_STR Representation of type info used in API
CCI_A_TYPE_INT
CCI_A_TYPE_FLOAT
CCI_A_TYPE_DOUBLE
CCI_A_TYPE_BIT
CCI_A_TYPE_DATE
CCI_A_TYPE_SET
CCI_A_TYPE_BIGINT
CCI_A_TYPE_BLOB
CCI_A_TYPE_CLOB
T_CCI_DB_PARAM enum CCI_PARAM_ISOLATION_LEVEL System parameter names
CCI_PARAM_LOCK_TIMEOUT
CCI_PARAM_MAX_STRING_LENGTH
CCI_PARAM_AUTO_COMMIT
T_CCI_SCH_TYPE enum CCI_SCH_CLASS
CCI_SCH_VCLASS
CCI_SCH_QUERY_SPEC
CCI_SCH_ATTRIBUTE
CCI_SCH_CLASS_ATTRIBUTE
CCI_SCH_METHOD
CCI_SCH_CLASS_METHOD
CCI_SCH_METHOD_FILE
CCI_SCH_SUPERCLASS
CCI_SCH_SUBCLASS
CCI_SCH_CONSTRAIT
CCI_SCH_TRIGGER
CCI_SCH_CLASS_PRIVILEGE
CCI_SCH_ATTR_PRIVILEGE
CCI_SCH_DIRECT_SUPER_CLASS
CCI_SCH_PRIMARY_KEY
CCI_SCH_IMPORTED_KEYS
CCI_SCH_EXPORTED_KEYS
CCI_SCH_CROSS_REFERENCE
T_CCI_CUBRID_STMT enum CUBRID_STMT_ALTER_CLASS
CUBRID_STMT_ALTER_SERIAL
CUBRID_STMT_COMMIT_WORK
CUBRID_STMT_REGISTER_DATABASE
CUBRID_STMT_CREATE_CLASS
CUBRID_STMT_CREATE_INDEX
CUBRID_STMT_CREATE_TRIGGER
CUBRID_STMT_CREATE_SERIAL
CUBRID_STMT_DROP_DATABASE
CUBRID_STMT_DROP_CLASS
CUBRID_STMT_DROP_INDEX
CUBRID_STMT_DROP_LABEL
CUBRID_STMT_DROP_TRIGGER
CUBRID_STMT_DROP_SERIAL
CUBRID_STMT_EVALUATE
CUBRID_STMT_RENAME_CLASS
CUBRID_STMT_ROLLBACK_WORK
CUBRID_STMT_GRANT
CUBRID_STMT_REVOKE
CUBRID_STMT_STATISTICS
CUBRID_STMT_INSERT
CUBRID_STMT_SELECT
CUBRID_STMT_UPDATE
CUBRID_STMT_DELETE
CUBRID_STMT_CALL
CUBRID_STMT_GET_ISO_LVL
CUBRID_STMT_GET_TIMEOUT
CUBRID_STMT_GET_OPT_LVL
CUBRID_STMT_SET_OPT_LVL
CUBRID_STMT_SCOPE
CUBRID_STMT_GET_TRIGGER
CUBRID_STMT_SET_TRIGGER
CUBRID_STMT_SAVEPOINT
CUBRID_STMT_PREPARE
CUBRID_STMT_ATTACH
CUBRID_STMT_USE
CUBRID_STMT_REMOVE_TRIGGER
CUBRID_STMT_RENAME_TRIGGER
CUBRID_STMT_ON_LDB
CUBRID_STMT_GET_LDB
CUBRID_STMT_SET_LDB
CUBRID_STMT_GET_STATS
CUBRID_STMT_CREATE_USER
CUBRID_STMT_DROP_USER
CUBRID_STMT_ALTER_USER
T_CCI_CURSOR_POS enum CCI_CURSOR_FIRST
CCI_CURSOR_CURRENT
CCI_CURSOR_LAST
T_CCI_TRAN_ISOLATION enum TRAN_COMMIT_CLASS_UNCOMMIT_INSTANCE
TRAN_COMMIT_CLASS_COMMIT_INSTANCE
TRAN_REP_CLASS_UNCOMMIT_INSTANCE
TRAN_REP_CLASS_COMMIT_INSTANCE
TRAN_REP_CLASS_REP_INSTANCE
TRAN_SERIALIZABLE
T_CCI_PARAM_MODE enum CCI_PARAM_MODE_UNKNOWN
CCI_PARAM_MODE_IN
CCI_PARAM_MODE_OUT
CCI_PARAM_MODE_INOUT

Note

If a string longer than defined max length is inserted (INSERT) or updated (UPDATE), the string will be truncated.

CCI Sample Program

The sample program shows how to write a CCI application by using the demodb database which is included with the CUBRID installation package. You can practice the ways to connect to CAS, prepare queries, execute queries, handle response, disconnect from CAS, etc. by following sample program below. In the sample program, the dynamic link on Linux environment is used.

The code below shows information about olympic table schema in the demodb database which is used for sample program.

csql> ;sc olympic

=== <Help: Schema of a Class> ===


 <Class Name>

     olympic

 <Attributes>

     host_year            INTEGER NOT NULL
     host_nation          CHARACTER VARYING(40) NOT NULL
     host_city            CHARACTER VARYING(20) NOT NULL
     opening_date         DATE NOT NULL
     closing_date         DATE NOT NULL
     mascot               CHARACTER VARYING(20)
     slogan               CHARACTER VARYING(40)
     introduction         CHARACTER VARYING(1500)

 <Constraints>

     PRIMARY KEY pk_olympic_host_year ON olympic (host_year)

Preparing

Make sure that the demodb database and the broker are running before you execute the sample program. You can start the demodb database and the broker by executing the cubrid utility. The code below shows how to run a database server and broker by executing the cubrid utility.

[tester@testdb ~]$ cubrid server start demodb
@ cubrid master start
++ cubrid master start: success
@ cubrid server start: demodb

This may take a long time depending on the amount of recovery works to do.

CUBRID 9.2

++ cubrid server start: success
[tester@testdb ~]$ cubrid broker start
@ cubrid broker start
++ cubrid broker start: success

Building

With the program source and the Makefile prepared, executing make will create an executable file named test. If you use a static library, there is no need to deploy additional files and the execution will be faster. However, it increases the program size and memory usage. If you use a dynamic library, there will be some performance overhead but the program size and memory usage can be optimized.

The code below a command line that makes a test program build by using a dynamic library instead of using make on Linux.

cc -o test test.c -I$CUBRID/include -L$CUBRID/lib -lnsl -lcascci

Sample Code

#include <stdio.h>
#include <cas_cci.h>
char *cci_client_name = "test";
int main (int argc, char *argv[])
{
    int con = 0, req = 0, col_count = 0, res, ind, i;
    T_CCI_ERROR error;
    T_CCI_COL_INFO *res_col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *buffer, db_ver[16];
    printf("Program started!\n");
    if ((con=cci_connect("localhost", 30000, "demodb", "PUBLIC", ""))<0) {
        printf( "%s(%d): cci_connect fail\n", __FILE__, __LINE__);
        return -1;
    }

    if ((res=cci_get_db_version(con, db_ver, sizeof(db_ver)))<0) {
        printf( "%s(%d): cci_get_db_version fail\n", __FILE__, __LINE__);
        goto handle_error;
    }
    printf("DB Version is %s\n",db_ver);
    if ((req=cci_prepare(con, "select * from event", 0,&error))<0) {
        if (req < 0) {
            printf( "%s(%d): cci_prepare fail(%d)\n", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }
    printf("Prepare ok!(%d)\n",req);
    res_col_info = cci_get_result_info(req, &stmt_type, &col_count);
    if (!res_col_info) {
        printf( "%s(%d): cci_get_result_info fail\n", __FILE__, __LINE__);
        goto handle_error;
    }

    printf("Result column information\n"
           "========================================\n");
    for (i=1; i<=col_count; i++) {
        printf("name:%s  type:%d(precision:%d scale:%d)\n",
            CCI_GET_RESULT_INFO_NAME(res_col_info, i),
            CCI_GET_RESULT_INFO_TYPE(res_col_info, i),
            CCI_GET_RESULT_INFO_PRECISION(res_col_info, i),
            CCI_GET_RESULT_INFO_SCALE(res_col_info, i));
    }
    printf("========================================\n");
    if ((res=cci_execute(req, 0, 0, &error))<0) {
        if (req < 0) {
            printf( "%s(%d): cci_execute fail(%d)\n", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }

    while (1) {
        res = cci_cursor(req, 1, CCI_CURSOR_CURRENT, &error);
        if (res == CCI_ER_NO_MORE_DATA) {
            printf("Query END!\n");
            break;
        }
        if (res<0) {
            if (req < 0) {
                printf( "%s(%d): cci_cursor fail(%d)\n", __FILE__, __LINE__,error.err_code);
            }
            goto handle_error;
        }

        if ((res=cci_fetch(req, &error))<0) {
            if (res < 0) {
                printf( "%s(%d): cci_fetch fail(%d)\n", __FILE__, __LINE__,error.err_code);
            }
            goto handle_error;
        }

        for (i=1; i<=col_count; i++) {
            if ((res=cci_get_data(req, i, CCI_A_TYPE_STR, &buffer, &ind))<0) {
                printf( "%s(%d): cci_get_data fail\n", __FILE__, __LINE__);
                goto handle_error;
            }
            printf("%s \t|", buffer);
        }
        printf("\n");
    }
    if ((res=cci_close_req_handle(req))<0) {
        printf( "%s(%d): cci_close_req_handle fail", __FILE__, __LINE__);
       goto handle_error;
    }
    if ((res=cci_disconnect(con, &error))<0) {
        if (res < 0) {
            printf( "%s(%d): cci_disconnect fail(%d)", __FILE__, __LINE__,error.err_code);
        }
        goto handle_error;
    }
    printf("Program ended!\n");
    return 0;

    handle_error:
    if (req > 0)
        cci_close_req_handle(req);
    if (con > 0)
        cci_disconnect(con, &error);
    printf("Program failed!\n");
    return -1;
}

CCI API Reference

int cci_bind_param(int req_handle, int index, T_CCI_A_TYPE a_type, void *value, T_CCI_U_TYPE u_type, char flag)

The cci_bind_param function binds data in the bind variable of prepared statement. This function converts value of the given a_type to an actual binding type and stores it. Subsequently, whenever cci_execute() is called, the stored data is sent to the server. If cci_bind_param () is called multiple times for the same index, the latest configured value is valid.

Parameters:
  • req_handle -- (IN) Request handle of a prepared statement
  • index -- (IN) Location of binding; it starts with 1.
  • a_type -- (IN) Data type of value
  • value -- (IN) Data value to bind
  • u_type -- (IN) Data type to be applied to the database
  • flag -- (IN) bind_flag(CCI_BIND_PTR).
Returns:

Error code (0: success)

  • CCI_ER_BIND_INDEX
  • CCI_ER_CON_HANDLE
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_REQ_HANDLE
  • CCI_ER_TYPE_CONVERSION
  • CCI_ER_USED_CONNECTION

To bind NULL to the database, choose one of below settings.

  • Set the value of value to a NULL pointer
  • Set the value of u_type to CCI_U_TYPE_NULL

The following shows a part of code to bind NULL.

res = cci_bind_param (req, 2 /* binding index*/, CCI_A_TYPE_STR, NULL, CCI_U_TYPE_STRING, CCI_BIND_PTR);

or

res = cci_bind_param (req, 2 /* binding index*/, CCI_A_TYPE_STR, data, CCI_U_TYPE_NULL, CCI_BIND_PTR);

can be used.

If CCI_BIND_PTR is configured for flag, the pointer of value variable is copied (shallow copy), but no value is copied. If it is not configured for flag, the value of value variable is copied (deep copy) by allocating memory. If multiple columns are bound by using the same memory buffer, CCI_BIND_PTR must not be configured for the flag.

T_CCI_A_TYPE is a C language type that is used in CCI applications for data binding, and consists of primitive types such as int and float, and user-defined types defined by CCI such as T_CCI_BIT and T_CCI_DATE. The identifier for each type is defined as shown in the table below.

a_type value type
CCI_A_TYPE_STR char *
CCI_A_TYPE_INT int *
CCI_A_TYPE_FLOAT float *
CCI_A_TYPE_DOUBLE double *
CCI_A_TYPE_BIT T_CCI_BIT *
CCI_A_TYPE_SET T_CCI_SET
CCI_A_TYPE_DATE T_CCI_DATE *
CCI_A_TYPE_BIGINT int64_t * (For Windows: __int64 *)
CCI_A_TYPE_BLOB T_CCI_BLOB
CCI_A_TYPE_CLOB T_CCI_CLOB

T_CCI_U_TYPE is a column type of database and data bound though the value argument is converted into this type. The cci_bind_param () function uses two kinds of types to send information which is used to convert U-type data from A-type data; the U-type data can be interpreted by database language and the A-type data can be interpreted by C language.

There are various A-type data that are allowed by U-type data. For example, CCI_U_TYPE_INT can receive CCI_A_TYPE_STR as A-type data including CCI_A_TYPE_INT. For information on type conversion, see Implicit Type Conversion.

Both T_CCI_A_TYPE and T_CCI_U_TYPE enum(s) are defined in the cas_cci.h file. The definition of each identifier is described in the table below.

u_type Corresponding a_type (default)
CCI_U_TYPE_CHAR CCI_A_TYPE_STR
CCI_U_TYPE_STRING CCI_A_TYPE_STR
CCI_U_TYPE_BIT CCI_A_TYPE_BIT
CCI_U_TYPE_VARBIT CCI_A_TYPE_BIT
CCI_U_TYPE_NUMERIC CCI_A_TYPE_STR
CCI_U_TYPE_INT CCI_A_TYPE_INT
CCI_U_TYPE_SHORT CCI_A_TYPE_INT
CCI_U_TYPE_FLOAT CCI_A_TYPE_FLOAT
CCI_U_TYPE_DOUBLE CCI_A_TYPE_DOUBLE
CCI_U_TYPE_DATE CCI_A_TYPE_DATE
CCI_U_TYPE_TIME CCI_A_TYPE_DATE
CCI_U_TYPE_TIMESTAMP CCI_A_TYPE_DATE
CCI_U_TYPE_OBJECT CCI_A_TYPE_STR
CCI_U_TYPE_BIGINT CCI_A_TYPE_BIGINT
CCI_U_TYPE_DATETIME CCI_A_TYPE_DATE
CCI_U_TYPE_BLOB CCI_A_TYPE_BLOB
CCI_U_TYPE_CLOB CCI_A_TYPE_CLOB
CCI_U_TYPE_ENUM CCI_A_TYPE_STR

When the string including the date is used as an input parameter of DATE, DATETIME, or TIMESTAMP, "YYYY/MM/DD" or "YYYY-MM-DD" is allowed for the date string type. Therefore, "2012/01/31" or "2012-01-31" is valid, but "01/31/2012" is invalid. The following is an example of having the string that includes the date as an input parameter of the date type.

// "CREATE TABLE tbl(aa date, bb datetime)";

char *values[][3] =
{
    {"1994/11/30", "1994/11/30 20:08:08"},
    {"2008-10-31", "2008-10-31 20:08:08"}
};

req = cci_prepare(conn, "insert into tbl (aa, bb) values ( ?, ?)", CCI_PREPARE_INCLUDE_OID, &error);

for(i=0; i< 2; i++)
{
    res = cci_bind_param(req, 1, CCI_A_TYPE_STR, values[i][0], CCI_U_TYPE_DATE, (char)NULL);
    res = cci_bind_param(req, 2, CCI_A_TYPE_STR, values[i][1], CCI_U_TYPE_DATETIME, (char)NULL);
    cci_execute(req, CCI_EXEC_QUERY_ALL, 0, err_buf);
}
int cci_bind_param_array(int req_handle, int index, T_CCI_A_TYPE a_type, void *value, int *null_ind, T_CCI_U_TYPE u_type)

The cci_bind_param_array function binds a parameter array for a prepared cci_execute_array() is called, data is sent to the server by the stored value pointer. If cci_bind_param_array () is called multiple times for the same index, the last configured value is valid. If NULL is bound to the data, a non-zero value is configured in null_ind. If value is a NULL pointer, or u_type is CCI_U_TYPE_NULL, all data are bound to NULL and the data buffer used by value cannot be reused. For the data type of value for a_type, see the cci_bind_param() function description.

Parameters:
  • req_handle -- (IN) Request handle of the prepared statement
  • index -- (IN) Binding location
  • a_type -- (IN) Data type of value
  • value -- (IN) Data value to be bound
  • null_ind -- (IN) NULL indicator array (0 : not NULL, 1 : NULL)
  • u_type -- (IN) Data type to be applied to the database.
Returns:

Error code (0: success)

  • CCI_ER_BIND_INDEX
  • CCI_ER_BIND_ARRAY_SIZE
  • CCI_ER_CON_HANDLE
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_REQ_HANDLE
  • CCI_ER_TYPE_CONVERSION
  • CCI_ER_USED_CONNECTION
int cci_bind_param_array_size(int req_handle, int array_size)

The cci_bind_param_array_size function determines the size of the array to be used in cci_bind_param_array(). cci_bind_param_array_size () must be called first before cci_bind_param_array() is used.

Parameters:
  • req_handle -- Request handle of a prepared statement
  • array_size -- (IN) binding array size
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_REQ_HANDLE
  • CCI_ER_USED_CONNECTION
int cci_bind_param_ex(int req_handle, int index, T_CCI_A_TYPE a_type, void *value, int length, T_CCI_U_TYPE u_type, char flag)

The cci_bind_param_ex function works as the same with cci_bind_param(). However, it has an additional argument, length, which specifies the byte length of a string if bound data is a string.

Parameters:
  • req_handle -- (IN) Request handle of the prepared statement
  • index -- (IN) Binding location, starting from 1
  • a_type -- (IN) Data type of value
  • value -- (IN) Data value to be bound
  • length -- (IN) Byte length of a string to be bound
  • u_type -- (IN) Data type to be applied to the database.
  • flag -- (IN) bind_flag(CCI_BIND_PTR).
Returns:

Error code(0: success)

The length argument can be used for binding a string which includes '\0' as below.

cci_bind_param_ex(statement, 1, CCI_A_TYPE_STR, "aaa\0bbb", 7, CCI_U_TYPE_STRING, 0);
int cci_blob_free(T_CCI_BLOB blob)

The cci_blob_free function frees memory of blob struct.

Returns:Error code (0: success)
  • CCI_ER_INVALID_LOB_HANDLE
int cci_blob_new(int conn_handle, T_CCI_BLOB* blob, T_CCI_ERROR* error_buf)

The cci_blob_new function creates an empty file where LOB data is stored and returns locator referring to the data to blob struct.

Parameters:
  • conn_handle -- (IN) Connection handle
  • blob -- (OUT) LOB locator
  • error_buf -- (OUT) Error buffer
Returns:

Error code (0: success)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_USED_CONNECTION
int cci_blob_read(int conn_handle, T_CCI_BLOB blob, long start_pos, int length, char *buf, T_CCI_ERROR* error_buf)

The cci_blob_read function reads as much as data from start_pos to length of the LOB data file specified in blob; then it stores it in buf and returns it.

Parameters:
  • conn_handle -- (IN) Connection handle
  • blob -- (OUT) LOB locator
  • start_pos -- (IN) Index location of LOB data file
  • length -- (IN) LOB data length from buffer
  • buf -- (IN) Data buffer to read
  • error_buf -- (OUT) Error buffer
Returns:

Size of read value (>= 0: success), Error code (< 0: error)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_INVALID_LOB_READ_POS
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_USED_CONNECTION
long long cci_blob_size(T_CCI_BLOB* blob)

The cci_blob_size function returns data file size that is specified in blob.

Parameters:
  • blob -- (OUT) LOB locator
Returns:

Size of BLOB data file (>= 0: success), Error code (< 0: error)

  • CCI_ER_INVALID_LOB_HANDLE
int cci_blob_write(int conn_handle, T_CCI_BLOB blob, long start_pos, int length, const char *buf, T_CCI_ERROR* error_buf)

The cci_blob_write function reads as much as data from buf to length and stores it from start_pos of the LOB data file specified in blob.

Parameters:
  • conn_handle -- (IN) Connection handle
  • blob -- (OUT) LOB locator
  • start_pos -- (IN) Index location of LOB data file
  • length -- (IN) Data length from buffer
  • buf -- (OUT) Data buffer to write
  • error_buf -- (OUT) Error buffer
Returns:

Size of written value (>= 0: success), Error code (< 0: error)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_USED_CONNECTION
int cci_cancel(int conn_handle)

Cancel the running query on the other thread. This function executes the same behavior as Statement.cancel() method in JAVA.

Parameters:
  • conn_handle -- (IN) Connection handle
Returns:

Error code

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT

The following shows how to cancel the query execution of a thread.

/* gcc -o pthr pthr.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread
*/


#include <stdio.h>
#include <cas_cci.h>
#include <unistd.h>
#include <pthread.h>
#include <string.h>
#include <time.h>

#define QUERY "select * from db_class A, db_class B, db_class C, db_class D, db_class E"

static void *thread_main (void *arg);
static void *execute_statement (int con, char *sql_stmt);

int
main (int argc, char *argv[])
{
    int thr_id = 0, conn_handle = 0, res = 0;
    void *jret;
    pthread_t th;
    char url[1024];
    T_CCI_ERROR error;
    snprintf (url, 1024, "cci:CUBRID:localhost:33000:demodb:PUBLIC::");

    conn_handle = cci_connect_with_url_ex (url, NULL, NULL, &error);

    if (conn_handle < 0)
    {
        printf ("ERROR: %s\n", error.err_msg);
        return -1;
    }

    res = pthread_create (&th, NULL, &thread_main, (void *) &conn_handle);

    if (res < 0)
    {
        printf ("thread fork failed.\n");
        return -1;
    }
    else
    {
        printf ("thread started\n");
    }
    sleep (5);
    // If thread_main is still running, below cancels the query of thread_main.
    res = cci_cancel (conn_handle);
    if (res < 0)
    {
        printf ("cci_cancel failed\n");
        return -1;
    }
    else
    {
        printf ("The query was canceled by cci_cancel.\n");
    }
    res = pthread_join (th, &jret);
    if (res < 0)
    {
        printf ("thread join failed.\n");
        return -1;
    }

    printf ("thread_main was cancelled with\n\t%s\n", (char *) jret);
    free (jret);

    res = cci_disconnect (conn_handle, &error);
    if (res < 0)
    {
        printf ("ERROR: %s\n", error.err_msg);
      return res;
    }

    return 0;
}

void *
thread_main (void *arg)
{
    int con = *((int *) arg);
    int ret_val;
    void *ret_ptr;
    T_CCI_ERROR error;

    cci_set_autocommit (con, CCI_AUTOCOMMIT_TRUE);
    ret_ptr = execute_statement (con, QUERY);
    return ret_ptr;
}

static void *
execute_statement (int con, char *sql_stmt)
{
    int col_count = 1, ind, i, req;
    T_CCI_ERROR error;
    char *buffer;
    char *error_msg;
    int res = 0;

    error_msg = (char *) malloc (128);
    if ((req = cci_prepare (con, sql_stmt, 0, &error)) < 0)
    {
        snprintf (error_msg, 128, "cci_prepare ERROR: %s\n", error.err_msg);
        goto conn_err;
    }

    if ((res = cci_execute (req, 0, 0, &error)) < 0)
    {
        snprintf (error_msg, 128, "cci_execute ERROR: %s\n", error.err_msg);
        goto execute_error;
    }

    if (res >= 0)
    {
        while (1)
        {
            res = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &error);
            if (res == CCI_ER_NO_MORE_DATA)
            {
                break;
            }
            if (res < 0)
            {
                snprintf (error_msg, 128, "cci_cursor ERROR: %s\n",
                    error.err_msg);
                return error_msg;
            }

            if ((res = cci_fetch (req, &error)) < 0)
            {
                snprintf (error_msg, 128, "cci_fetch ERROR: %s\n",
                    error.err_msg);
                return error_msg;
            }

            for (i = 1; i <= col_count; i++)
            {
                if ((res = cci_get_data (req, i, CCI_A_TYPE_STR, &buffer, &ind)) < 0)
                {
                    snprintf (error_msg, 128, "cci_get_data ERROR\n");
                    return error_msg;
                }
            }
        }
    }

    if ((res = cci_close_query_result (req, &error)) < 0)
    {
        snprintf (error_msg, 128, "cci_close_query_result ERROR: %s\n", error.err_msg);
        return error_msg;
    }
execute_error:
    if ((res = cci_close_req_handle (req)) < 0)
    {
        snprintf (error_msg, 128, "cci_close_req_handle ERROR\n");
    }
conn_err:
    return error_msg;
}
int cci_clob_free(T_CCI_CLOB clob)

The cci_clob_free function frees memory of CLOB struct.

Parameters:
  • clob -- (IN) LOB locator
Returns:

Error code (0: success)

  • CCI_ER_INVALID_LOB_HANDLE
int cci_clob_new(int conn_handle, T_CCI_CLOB* clob, T_CCI_ERROR* error_buf)

The cci_clob_new function creates an empty file where LOB data is stored and returns locator referring to the data to clob struct.

Parameters:
  • conn_handle -- ((IN) Connection handle
  • clob -- (OUT) LOB locator
  • error_buf -- (OUT) Error buffer
Returns:

Error code (0: success)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_USED_CONNECTION
int cci_clob_read(int conn_handle, T_CCI_CLOB clob, long start_pos, int length, char *buf, T_CCI_ERROR* error_buf)

The cci_clob_read function reads as much as data from start_pos to length in the LOB data file specified in clob; then it stores it in buf and returns it.

Parameters:
  • conn_handle -- (IN) Connection handle
  • clob -- (IN) LOB locator
  • start_pos -- (IN) Index location of LOB data file
  • length -- (IN) LOB data length from buffer
  • buf -- (IN) Data buffer to read
  • error_buf -- (OUT) Error buffer
Returns:

Size of read value (>= 0: success), Error code (< 0: Error)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_INVALID_LOB_READ_POS
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_USED_CONNECTION
long long cci_clob_size(T_CCI_CLOB* clob)

The cci_clob_size function returns data file size that is specified in clob.

Parameters:
  • clob -- (IN) LOB locator
Returns:

Size of CLOB data file (>= 0: success), Error code (< 0: error)

  • CCI_ER_INVALID_LOB_HANDLE
int cci_clob_write(int conn_handle, T_CCI_CLOB clob, long start_pos, int length, const char *buf, T_CCI_ERROR* error_buf)

The cci_clob_write function reads as much as data from buf to length and then stores the value from start_pos in LOB data file specified in clob.

Parameters:
  • conn_handle -- (IN) Connection handle
  • clob -- (IN) LOB locator
  • start_pos -- (IN) Index location of LOB data file
  • length -- (IN) Data length from buffer
  • buf -- (OUT) Data buffer to write
  • error_buf -- (OUT) Error buffer
Returns:

Size of written value (>= 0: success), Error code (< 0: Error)

  • CCI_ER_COMMUNICATION
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_INVALID_LOB_HANDLE
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_USED_CONNECTION
int cci_close_query_result(int req_handle, T_CCI_ERROR *err_buf)

The cci_close_query_result funciton closes the resultset returned by cci_execute(), cci_execute_array() or cci_execute_batch(). If you run cci_prepare() repeatedly without closing the request handle(req_handle), it is recommended to call this function before calling cci_close_req_handle().

Parameters:
  • req_handle -- (IN) Request handle
  • err_buf -- (OUT) Error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_DBMS
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_REQ_HANDLE
  • CCI_ER_RESULT_SET_CLOSED
  • CCI_ER_USED_CONNECTION
int cci_close_req_handle(int req_handle)

The cci_close_req_handle function closes the request handle obtained by cci_prepare().

Parameters:
  • req_handle -- (IN) Request handle
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_REQ_HANDLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_DBMS
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_USED_CONNECTION
int cci_col_get(int conn_handle, char *oid_str, char *col_attr, int *col_size, int *col_type, T_CCI_ERROR *err_buf)

The cci_col_get function gets an attribute value of collection type. If the name of the class is C, and the domain of set_attr is set (multiset, sequence), the query looks like as follows:

SELECT a FROM C, TABLE(set_attr) AS t(a) WHERE C = oid;

That is, the number of members becomes the number of records.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) Collection attribute name
  • col_size -- (OUT) Collection size (-1 : null)
  • col_type -- (OUT) Collection type (set, multiset, sequence: u_type)
  • err_buf -- (OUT) Database error buffer
Returns:

Request handle

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_col_seq_drop(int conn_handle, char *oid_str, char *col_attr, int index, T_CCI_ERROR *err_buf)

The cci_col_seq_drop function drops the index-th (base: 1) member of the sequence attribute values. The following example shows how to drop the first member of the sequence attribute values.

cci_col_seq_drop(conn_handle, oid_str, seq_attr, 1, err_buf);
Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) Collection attribute name
  • index -- (IN) Index
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_col_seq_insert(int conn_handle, char *oid_str, char *col_attr, int index, char *value, T_CCI_ERROR *err_buf)

The cci_col_seq_insert function inserts one member at the index-th (base: 1) position of the sequence attribute values. The following example shows how to insert "a" at the first position of the sequence attribute values.

cci_col_seq_insert(conn_handle, oid_str, seq_attr, 1, "a", err_buf);
Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) Collection attribute name
  • index -- (IN) Index
  • value -- (IN) Sequential element (string)
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_col_seq_put(int conn_handle, char *oid_str, char *col_attr, int index, char *value, T_CCI_ERROR *err_buf)

The cci_col_seq_put function replaces the index-th (base: 1) member of the sequence attribute values with a new value. The following example shows how to replace the first member of the sequence attributes values with "a".

cci_col_seq_put(conn_handle, oid_str, seq_attr, 1, "a", err_buf);
Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) Collection attribute name
  • index -- (IN) Index
  • value -- (IN) Sequential value
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_col_set_add(int conn_handle, char *oid_str, char *col_attr, char *value, T_CCI_ERRROR *err_buf)

The cci_col_set_add function adds one member to the set attribute values. The following example shows how to add "a" to the set attribute values.

cci_col_set_add(conn_handle, oid_str, set_attr, "a", err_buf);
Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) collection attribute name
  • value -- (IN) set element
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_col_set_drop(int conn_handle, char *oid_str, char *col_attr, char *value, T_CCI_ERROR *err_buf)

The cci_col_set_drop function drops one member from the set attribute values. The following example shows how to drop "a" from the set attribute values.

cci_col_set_drop(conn_handle, oid_str, set_attr, "a", err_buf);
Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) collection attribute name
  • value -- (IN) set element (string)
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_COMMUNICATION
int cci_col_size(int conn_handle, char *oid_str, char *col_attr, int *col_size, T_CCI_ERROR *err_buf)

The cci_col_size function gets the size of the set (seq) attribute.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • col_attr -- (IN) Collection attribute name
  • col_size -- (OUT) Collection size (-1: NULL)
  • err_buf -- Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_connect(char *ip, int port, char *db_name, char *db_user, char *db_password)

A connection handle to the database server is assigned and it tries to connect to the server. If it has succeeded, the connection handle ID is returned; if fails, an error code is returned.

Parameters:
  • ip -- (IN) A string that represents the IP address of the server (host name)
  • port -- (IN) Broker port (The port configured in the $CUBRID/conf/cubrid_broker.conf file)
  • db_name -- (IN) Database name
  • db_user -- (IN) Database user name
  • db_passwd -- (IN) Database user password
Returns:

Success: Connection handle ID (int), Failure: Error code

  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_HOSTNAME
  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
int cci_connect_ex(char *ip, int port, char *db_name, char *db_user, char *db_password, T_CCI_ERROR * err_buf)

The cci_connect_ex function returns CCI_ER_DBMS error and checks the error details in the database error buffer (err_buf) at the same time. In that point, it is different from cci_connect() and the others are the same as the cci_connect() function.

Parameters:
  • ip -- (IN) A string that represents the IP address of the server (host name)
  • port -- (IN) Broker port (The port configured in the $CUBRID/conf/cubrid_broker.conf file)
  • db_name -- (IN) Database name
  • db_user -- (IN) Database user name
  • db_passwd -- (IN) Database user password
  • err_buf -- Database error buffer
Returns:

Success: Connection handle ID (int), Failure: Error code

  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_HOSTNAME
  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
int cci_connect_with_url(char *url, char *db_user, char *db_password)

The cci_connect_with_url function connects a database by using connection information passed with a url argument. If broker's HA feature is used in CCI, you must specify the connection information of the standby broker server with altHosts property, which is used for the failover, in the url argument of this function. It returns the ID of a connection handle on success; it returns an error code on failure. For details about HA features of broker, see Duplexing Brokers.

Parameters:
  • url -- (IN) A string that contains server connection information.
  • db_user -- (IN) Database user name. If it is NULL or an empty string, it becomes <db_user> in url. If both of this value and <db_user> in url are not specified, DB user name becomes PUBLIC.
  • db_passwd -- (IN) Database user password. If it is NULL or an empty string, use <db_password> in url. If both of this value and <db_password> in url are not specified, DB password becomes NULL.
Returns:

Success: Connection handle ID (int), Failure: Error code

  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_HOSTNAME
  • CCI_ER_INVALID_URL
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_LOGIN_TIMEOUT
<url> ::= cci:CUBRID:<host>:<port>:<db_name>:<db_user>:<db_password>:[?<properties>]

<properties> ::= <property> [&<property>]
<property> ::= altHosts=<alternative_hosts> [ &rcTime=<time>] [ &loadBalance=true|false]
             |{login_timeout|loginTimeout}=<milli_sec>
             |{query_timeout|queryTimeout}=<milli_sec>
             |{disconnect_on_query_timeout|disconnectOnQueryTimeout}=true|false
             | logFile=<file_name>
             | logBaseDir=<dir_name>
             | logSlowQueries=true|false[&slowQueryThresholdMillis=<milli_sec>]
             | logTraceApi=true|false
             | logTraceNetwork=true|false

<alternative_hosts> ::= <host>:<port> [,<host>:<port>]

<host> := HOSTNAME | IP_ADDR
<time> := SECOND
<milli_sec> := MILLI SECOND

altHosts is the property related to connection target and loginTimeout, queryTimeout, and disconnectOnQueryTimeout are the properties related to timeout; logSlowQueries, logTraceApi, and logTraceNetwork are the properties related to log information configuration for debugging. Note that a property name which is a value to be entered in the url argument is not case sensitive.

  • host: A host name or IP address of the master database

  • port: A port number

  • db_name: A name of the database

  • db_user: A name of the database user

  • db_password: A database user password

  • altHosts = standby_broker1_host, standby_broker2_host, ...: Specifies the broker information of the standby server, which is used for failover when it is impossible to connect to the active server. You can specify multiple brokers for failover, and the connection to the brokers is attempted in the order listed in alhosts.

    Note

    Even if there are RW and RO together in ACCESS_MODE* setting of brokers of main host and altHosts, application decides the target host to access without the relation for the setting of ACCESS_MODE. Therefore, you should define the main host and altHosts as considering ACCESS_MODE of target brokers.

  • rcTime: After the failure occurred on the first connected broker, the application connects to the broker specified by altHosts(broker failover). Then it attempts to reconnect to the first connected broker at every rcTime(default value: 600 seconds).

  • loadBalance: When this value is true, the applications try to connect to the main host and alternative hosts specified with the altHosts property as a random order. (default value: false).

  • login_timeout | loginTimeout: Timeout value (unit: msec.) for database login. Upon timeout, a CCI_ER_LOGIN_TIMEOUT (-38) error is returned. The default value is 30,000(30 sec.). If this value is 0, it means infinite waiting. This value is also applied when internal reconnection occurs after the initial connection.

  • query_timeout | queryTimeout: If time specified in these properties has expired when calling cci_prepare(), cci_execute(), etc. a cancellation message for query request which was sent to a server will be delivered and called function returns a CCI_ER_QUERY_TIMEOUT (-39) error. The value returned upon timeout may vary depending on a value specified in disconnect_on_query_timeout. For details, see disconnect_on_query_timeout.

    Note

    If you use cci_execute_batch() or cci_execute_array()function, or set CCI_EXEC_QUERY_ALL in cci_execute() function to run multiple queries at once, query timeout is applied to one function, not to one query. In other words, if query timeout occurs after the start of a function, a function running is quit.

  • disconnect_on_query_timeout | disconnectOnQueryTimeout: Whether to disconnect socket immediately after time for query request has expired. It determines whether to terminate a socket connection immediately or wait for server response after sending cancellation message for query request to a server when calling cci_prepare(), cci_execute(), etc. The default value is false, meaning that it will wait for server response. It this value is true, a socket will be closed immediately after sending a cancellation message to a server upon timeout and returns the CCI_ER_QUERY_TIMEOUT (-39) error. (If an error occurs on database server side, not on broker side, it returns -1. If you want to view error details, see error codes in "database error buffer." You can get information how to check error codes in CCI Error Codes and Error Messages.) Please note that there is a possibility that a database server does not get a cancellation message and execute a query even after an error is returned.

  • logFile: A log file name for debugging (default value: cci_ <handle_id> .log). <handle_id> indicates the ID of a connection handle returned by this function.

  • logBaseDir: A directory where a debug log file is created. The file name including the path will be logBaseDir/logFile, and the relative path is possible.

  • logSlowQueries: Whether to log slow query for debugging (default value: false)

  • slowQueryThresholdMillis: Timeout for slow query logging if slow query logging is enabled (default value: 60000, unit: milliseconds)

  • logTraceApi: Whether to log the start and end of CCI functions

  • logTraceNetwork: Whether to log network data content transferred of CCI functions

Example

--connection URL string when a property(altHosts) is specified for HA
URL=cci:CUBRID:192.168.0.1:33000:demodb:::?altHosts=192.168.0.2:33000,192.168.0.3:33000

--connection URL string when properties(altHosts,rcTime) is specified for HA
URL=cci:CUBRID:192.168.0.1:33000:demodb:::?altHosts=192.168.0.2:33000,192.168.0.3:33000&rcTime=600

--connection URL string when properties(logSlowQueries,slowQueryThresholdMills, logTraceApi, logTraceNetwork) are specified for interface debugging
URL = "cci:cubrid:192.168.0.1:33000:demodb:::?logSlowQueries=true&slowQueryThresholdMillis=1000&logTraceApi=true&logTraceNetwork=true"
int cci_connect_with_url_ex(char *url, char *db_user, char *db_password, T_CCI_ERROR * err_buf)

The cci_connect_with_url_ex function returns CCI_ER_DBMS error and checks the error details in the database error buffer (err_buf) at the same time. In that point, it is different from cci_connect_with_url() and the others are the same as the cci_connect_with_url() function.

Parameters:
  • url -- (IN) A string that contains server connection information
  • db_user -- (IN) Database user name. If it is NULL or an empty string, use <db_user> in url.
  • db_passwd -- (IN) Database user password. If it is NULL or an empty string, use <db_password> in url.
  • err_buf -- Database error buffer
Returns:

Success: Connection handle ID (int), Failure: Error code

  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_HOSTNAME
  • CCI_ER_INVALID_URL
  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_LOGIN_TIMEOUT
int cci_cursor(int req_handle, int offset, T_CCI_CURSOR_POS origin, T_CCI_ERROR *err_buf)

The cci_cursor function moves the cursor specified in the request handle to access the specific record in the query result executed by cci_execute(). The position of cursor is moved by the values specified in the origin and offset values. If the position to be moved is not valid, CCI_ER_NO_MORE_DATA is returned.

Parameters:
  • req_handle -- (IN) Request handle
  • offset -- (IN) Offset to be moved
  • origin -- (IN) Variable to represent a position. The type is T_CCI_CURSOR_POS. T_CCI_CURSOR_POS enum consists of CCI_CURSOR_FIRST, CCI_CURSOR_CURRENT and CCI_CURSOR_LAST.
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CCI_ER_NO_MORE_DATA
  • CCI_ER_COMMUNICATION

Example

//the cursor moves to the first record
cci_cursor(req, 1, CCI_CURSOR_FIRST, &err_buf);

//the cursor moves to the next record
cci_cursor(req, 1, CCI_CURSOR_CURRENT, &err_buf);

//the cursor moves to the last record
cci_cursor(req, 1, CCI_CURSOR_LAST, &err_buf);

//the cursor moves to the previous record
cci_cursor(req, -1, CCI_CURSOR_CURRENT, &err_buf);
int cci_cursor_update(int req_handle, int cursor_pos, int index, T_CCI_A_TYPE a_type, void *value, T_CCI_ERROR *err_buf)

The cci_cursor_update function updates cursor_pos from the value of the index -th column to value. If the database is updated to NULL, value becomes NULL. For update conditions, see cci_prepare(). The data types of value for a_type are shown in the table below.

Parameters:
  • req_handle -- (IN) Request handle
  • cursor_pos -- (IN) Cursor position
  • index -- (IN) Column index
  • a_type -- (IN) value Type
  • value -- (IN) A new value
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CCI_ER_TYPE_CONVERSION
  • CCI_ER_ATYPE

Data types of value for a_type are as below.

a_type value type
CCI_A_TYPE_STR char *
CCI_A_TYPE_INT int *
CCI_A_TYPE_FLOAT float *
CCI_A_TYPE_DOUBLE double *
CCI_A_TYPE_BIT T_CCI_BIT *
CCI_A_TYPE_SET T_CCI_SET
CCI_A_TYPE_DATE T_CCI_DATE *
CCI_A_TYPE_BIGINT int64_t * (For Windows: __int64 *)
CCI_A_TYPE_BLOB T_CCI_BLOB
CCI_A_TYPE_CLOB T_CCI_CLOB
T_CCI_CONN cci_datasource_borrow(T_CCI_DATASOURCE *datasource, T_CCI_ERROR *err_buf)

The cci_datasource_borrow function obtains CCI connection to be used in T_CCI_DATASOURCE struct.

Parameters:
  • datasource -- (IN) T_CCI_DATASOURCE struct pointer in which CCI connection exists
  • err_buf -- (OUT) Error code and message returned upon error occurrence
Returns:

Success: CCI connection handler identifier, Failure: -1

int cci_datasource_change_property(T_CCI_DATASOURCE *datasource, const char *key, const char *val)

A property name of a DATASOURCE is specified in key, a value in val. The changed property value by this function is applied to all connections in the datasource.

Parameters:
  • datasource -- (IN) T_CCI_DATASOURCE struct pointer to obtain CCI connections.
  • key -- (IN) A pointer to the string of a property name
  • val -- (IN) A pointer to the string of a property value
Returns:

Error code(0: success)

  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_NO_PROPERTY
  • CCI_ER_PROPERTY_TYPE

The following shows names and values of changeable properties.

Property name Type Value Description
default_autocommit bool true/false Whether auto-commit or not. The default is CCI_DEFAULT_AUTOCOMMIT in cubrid_broker.conf; the default of this is ON(true)
default_lock_timeout msec number lock timeout
default_isolation string See the table of cci_property_set() isolation level. The default is isolation_level in cubrid.conf; the default of this is "TRAN_READ_UNCOMMITTED".
login_timeout msec number login timeout. The default is 0(infinite wait). It can also be used when you call prepare or execute functions; at this time reconnection can happen.

Example

...
ps = cci_property_create ();
...
ds = cci_datasource_create (ps, &err);
...
cci_datasource_change_property(ds, "login_timeout", "5000");
cci_datasource_change_property(ds, "default_lock_timeout", "2000");
cci_datasource_change_property(ds, "default_isolation", "TRAN_REP_CLASS_COMMIT_INSTANCE");
cci_datasource_change_property(ds, "default_autocommit", "true");
...
T_CCI_DATASOURCE * cci_datasource_create(T_CCI_PROPERTIES *properties, T_CCI_ERROR *err_buf)

The cci_datasource_create function creates DATASOURCE of CCI.

Parameters:
  • properties -- (IN) T_CCI_PROPERTIES struct pointer in which configuration of struct pointer is stored. Values of properties will be set with cci_property_set().
  • err_buf -- (OUT) Error buffer. Error code and message returned upon error occurrence
Returns:

Success: T_CCI_DATASOURCE struct pointer created, Failure: NULL

void cci_datasource_destroy(T_CCI_DATASOURCE *datasource)

The cci_datasource_destroy function destroys DATASOURCE of CCI.

Parameters:
  • datasource -- (IN) T_CCI_DATASOURCE struct pointer to be deleted
Returns:

void

int cci_datasource_release(T_CCI_DATASOURCE *datasource, T_CCI_CONN conn, T_CCI_ERROR *err_buf)

The cci_datasource_release function returns CCI connection released in T_CCI_DATASOURCE struct. If you want to reuse the connection after calling this function, recall cci_datasource_borrow().

Parameters:
  • datasource -- (IN) T_CCI_DATASOURCE struct pointer which returns CCI connection
  • conn -- (IN) CCI connection handler identifier released
  • err_buf -- (OUT) Error buffer(returns error code and error message when an error occurs)
Returns:

Success: 1, Failure: 0

int cci_disconnect(int conn_handle, T_CCI_ERROR *err_buf)

The cci_disconnect function disconnects all request handles created for conn_handle. If a transaction is being performed, the handles are disconnected after cci_end_tran() is executed.

Parameters:
  • conn_handle -- (IN) Connection handle
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
int cci_end_tran(int conn_handle, char type, T_CCI_ERROR *err_buf)

The cci_end_tran function performs commit or rollback on the current transaction. At this point, all open request handles are terminated and the connection to the database server is disabled. However, even after the connection to the server is disabled, the connection handle remains valid.

Parameters:
  • conn_handle -- (IN) Connection handle
  • type -- (IN) CCI_TRAN_COMMIT or CCI_TRAN_ROLLBACK
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_TRAN_TYPE

You can configure the default value of auto-commit mode by using CCI_DEFAULT_AUTOCOMMIT broker parameter upon startup of an application. If configuration on broker parameter is omitted, the default value is ON; use the cci_set_autocommit() function to change auto-commit mode within an application. If auto-commit mode is OFF, you must explicitly commit or roll back transaction by using the cci_end_tran() function.

long cci_escape_string(int conn_handle, char *to, const char *from, unsigned long length, T_CCI_ERROR *err_buf)

Converts the input string to a string that can be used in the CUBRID query. The following parameters are specified in this function: connection handle or no_backslash_escapes setting value, output string pointer, input string pointer, the length of the input string, and the address of the T_CCI_ERROR struct variable.

Parameters:
  • conn_handle -- (IN) connection handle or no_backslash_escapes setting value. When a connection handle is given, the no_backslash_escapes parameter value is read to determine how to convert. Instead of the connection handle, CCI_NO_BACKSLASH_ESCAPES_TRUE or CCI_NO_BACKSLASH_ESCAPES_FALSE value can be sent to determine how to convert.
  • to -- (OUT) Result string
  • from -- (IN) Input string
  • length -- (IN) Maximum byte length of the input string
  • err_buf -- (OUT) Database error buffer
Returns:

Success: Byte length of the changed string, Failure: Error Code

  • CCI_ER_CON_HANDLE
  • CCI_ER_COMMUNICATION

When the system parameter no_backslash_escapes is yes (default) or when the CCI_NO_BACKSLASH_ESCAPES_TRUE value is sent to the connection handle location, the string is converted to the following characters.

  • ' (single quote) => ' + ' (escaped single quote)

When the system parameter no_backslash_escapes is no or when the CCI_NO_BACKSLASH_ESCAPES_FALSE value is sent to the connection handle location, the string is converted to the following characters:

  • \n (new line character, ASCII 10) => \ + n (backslash + Alphabet n)
  • \r (carriage return, ASCII 13) => \ + r (backslash + Alphabet r)
  • \0 (ASCII 0) => \ + 0 (backslash + 0(ASCII 48)
  • \ (backslash) => \ + \

You can assign the space where the result string will be saved by using the length parameter. It will take as much as the byte length of the maximum input string * 2 + 1.

int cci_execute(int req_handle, char flag, int max_col_size, T_CCI_ERROR *err_buf)

The cci_execute function executes the SQL statement (prepared statement) that has executed cci_prepare(). A request handle, flag, the maximum length of a column to be fetched, and the address of a T_CCI_ERROR construct variable in which error information being stored are specified as arguments.

Parameters:
  • req_handle -- (IN) Request handle of the prepared statement
  • flag -- (IN) exec flag ( CCI_EXEC_QUERY_ALL )
  • max_col_size -- (IN) The maximum length of a column to be fetched when it is a string data type in bytes. If this value is 0, full length is fetched.
  • err_buf -- (OUT) Database error buffer
Returns:

  • SELECT : Returns the number of results
  • INSERT, UPDATE : Returns the number of rows reflected
  • Others queries : 0
  • Failure : Error code
    • CCI_ER_REQ_HANDLE
    • CCI_ER_BIND
    • CCI_ER_DBMS
    • CCI_ER_COMMUNICATION
    • CCI_ER_QUERY_TIMEOUT
    • CCI_ER_LOGIN_TIMEOUT

Through a flag, the way of query execution can be set as all queries or the first one.

Note

In 2008 R4.4 and from 9.2, CUBRID does not support setting the flag as CCI_EXEC_ASYNC, which brings the results as an asynchronous method.

If the flag is set to CCI_EXEC_QUERY_ALL, all prepared queries(separated by semicolon) are executed. If not, only the first query is executed.

If the flag is set to CCI_EXEC_QUERY_ALL, the following rules are applied.

  • The return value is the result of the first query.
  • If an error occurs in any query, the execution is processed as a failure.
  • For a query composed of in a query composed of q1; q2; q3, even if an error occurs in q2 after q1 succeeds the execution, the result of q1 remains valid. That is, the previous successful query executions are not rolled back when an error occurs.
  • If a query is executed successfully, the result of the second query can be obtained using cci_next_result().

max_col_size is a value that is used to determine the maximum length of a column to be sent to a client when the columns of the prepared statement are CHAR, VARCHAR, BIT or VARBIT. If this value is 0, full length is fetched.

int cci_execute_array(int req_handle, T_CCI_QUERY_RESULT **query_result, T_CCI_ERROR *err_buf)

If more than one value is bound to the prepared statement, this gets the values of the variables to be bound and executes the query by binding each value to the variable.

Parameters:
  • req_handle -- (IN) Request handle of the prepared statement
  • query_result -- (OUT) Query results
  • err_buf -- (OUT) Database error buffer
Returns:

Success: The number of executed queries, Failure: Negative number

  • CCI_ER_REQ_HANDLE
  • CCI_ER_BIND
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_LOGIN_TIMEOUT

To bind the data, call the cci_bind_param_array_size() function to specify the size of the array, bind each value to the variable by using the cci_bind_param_array() function, and execute the query by calling the cci_execute_array() function. The query result will be stored on the array of T_CCI_QUERY_RESULT structure.

cci_execute_array() function returns the results of queries to the query_result variable. You can use below macros to get the result of each query. In the macro, note that the validation check for each parameter entered is not performed.

After using the query_result variable, you must delete the query_result by using the cci_query_result_free() function.

Macro Return Type Description
CCI_QUERY_RESULT_RESULT int the number of affected rows or error identifier (-1: CAS error, -2: DBMS error)
CCI_QUERY_RESULT_ERR_NO int error number about a query
CCI_QUERY_RESULT_ERR_MSG char * error message about a query
CCI_QUERY_RESULT_STMT_TYPE int(T_CCI_CUBRID_STMT enum) type of a query statement

If autocommit mode is on, each query in the array is committed after executing.

Note

  • In the previous version of 2008 R4.3, if the autocommit mode is on, all queries in the array were committed after all of them are executed. From 2008 R4.3 version, the transaction is committed every time when a query is executed.
  • In autocommit mode off, if the general error occurs during executing one of the queries in the array on the cci_execute_array function which does a batch processing of the queries, the query with an error is ignored and the next query is executed continuously. But if the deadlock occurs, the error occurs as rolling back the transaction.
char *query =
    "update participant set gold = ? where host_year = ? and nation_code = 'KOR'";
int gold[2];
char *host_year[2];
int null_ind[2];
T_CCI_QUERY_RESULT *result;
int n_executed;
...

req = cci_prepare (con, query, 0, &cci_error);
if (req < 0)
{
    printf ("prepare error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
    goto handle_error;
}

gold[0] = 20;
host_year[0] = "2004";

gold[1] = 15;
host_year[1] = "2008";

null_ind[0] = null_ind[1] = 0;
error = cci_bind_param_array_size (req, 2);
if (error < 0)
{
    printf ("bind_param_array_size error: %d\n", error);
    goto handle_error;
}

error =
    cci_bind_param_array (req, 1, CCI_A_TYPE_INT, gold, null_ind, CCI_U_TYPE_INT);
if (error < 0)
{
    printf ("bind_param_array error: %d\n", error);
    goto handle_error;
}
error =
    cci_bind_param_array (req, 2, CCI_A_TYPE_STR, host_year, null_ind, CCI_U_TYPE_INT);
if (error < 0)
{
    printf ("bind_param_array error: %d\n", error);
    goto handle_error;
}

n_executed = cci_execute_array (req, &result, &cci_error);
if (n_executed < 0)
{
    printf ("execute error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
    goto handle_error;
}
for (i = 1; i <= n_executed; i++)
{
    printf ("query %d\n", i);
    printf ("result count = %d\n", CCI_QUERY_RESULT_RESULT (result, i));
    printf ("error message = %s\n", CCI_QUERY_RESULT_ERR_MSG (result, i));
    printf ("statement type = %d\n",
            CCI_QUERY_RESULT_STMT_TYPE (result, i));
}
error = cci_query_result_free (result, n_executed);
if (error < 0)
{
    printf ("query_result_free: %d\n", error);
    goto handle_error;
}
error = cci_end_tran(con, CCI_TRAN_COMMIT, &cci_error);
if (error < 0)
{
    printf ("end_tran: %d, %s\n", cci_error.err_code, cci_error.err_msg);
    goto handle_error;
}
int cci_execute_batch(int conn_handle, int num_sql_stmt, char **sql_stmt, T_CCI_QUERY_RESULT **query_result, T_CCI_ERROR *err_buf)

In CCI, multiple jobs can be processed simultaneously when using DML queries such as INSERT / UPDATE / DELETE. CCI_QUERY_RESULT_RESULT and cci_execute_batch() functions can be used to execute such batch jobs. Note that prepared statements cannot be used in the cci_execute_batch() function. The query result will be stored on the array of T_CCI_QUERY_RESULT structure.

Parameters:
  • conn_handle -- (IN) Connection handle
  • num_sql_stmt -- (IN) The number of sql_stmt
  • sql_stmt -- (IN) SQL statement array
  • query_result -- (OUT) The results of sql_stmt
  • err_buf -- (OUT) Database error buffer
Returns:

Success: The number of executed queries, Failure: Negative number

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_CONNECT
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_LOGIN_TIMEOUT

Executes sql_stmt as many times as num_sql_stmt specified as a parameter and returns the number of queries executed with the query_result variable. You can use CCI_QUERY_RESULT_RESULT, c:macro:CCI_QUERY_RESULT_ERR_NO, CCI_QUERY_RESULT_ERR_MSG and CCI_QUERY_RESULT_STMT_TYPE macros to get the result of each query. Regarding the summary of these macros, see the cci_execute_array() function.

Note that the validity check is not performed for each parameter entered in the macro.

After using the query_result variable, you must delete the query result by using the cci_query_result_free() function.

If autocommit mode is on, each query in the array is committed after executing.

Note

  • In the previous version of 2008 R4.3, if the autocommit is on, all queries in the array were committed after all of them are executed. From 2008 R4.3 version, each query in the array is committed right after each running.
  • If autocommit mode is off, after the general error occurs during executing one of the queries in the array on the cci_execute_batch function which does a batch processing of the queries, the query with an error is ignored and the next query is executed. But if the deadlock occurs, the error occurs as rolling back the transaction.
...
char **queries;
T_CCI_QUERY_RESULT *result;
int n_queries, n_executed;
...
count = 3;
queries = (char **) malloc (count * sizeof (char *));
queries[0] =
    "insert into athlete(name, gender, nation_code, event) values('Ji-sung Park', 'M', 'KOR', 'Soccer')";
queries[1] =
    "insert into athlete(name, gender, nation_code, event) values('Joo-young Park', 'M', 'KOR', 'Soccer')";
queries[2] =
    "select * from athlete order by code desc limit 2";

//calling cci_execute_batch()
n_executed = cci_execute_batch (con, count, queries, &result, &cci_error);
if (n_executed < 0)
{
    printf ("execute_batch: %d, %s\n", cci_error.err_code, cci_error.err_msg);
    goto handle_error;
}
printf ("%d statements were executed.\n", n_executed);

for (i = 1; i <= n_executed; i++)
{
    printf ("query %d\n", i);
    printf ("result count = %d\n", CCI_QUERY_RESULT_RESULT (result, i));
    printf ("error message = %s\n", CCI_QUERY_RESULT_ERR_MSG (result, i));
    printf ("statement type = %d\n",
            CCI_QUERY_RESULT_STMT_TYPE (result, i));
}

error = cci_query_result_free (result, n_executed);
if (error < 0)
{
    printf ("query_result_free: %d\n", error);
    goto handle_error;
}
...
int cci_execute_result(int req_handle, T_CCI_QUERY_RESULT **query_result, T_CCI_ERROR *err_buf)

The cci_execute_result function stores the execution results (e.g. statement type, result count) performed by cci_execute() to the array of T_CCI_QUERY_RESULT structure. You can use CCI_QUERY_RESULT_RESULT, CCI_QUERY_RESULT_ERR_NO, CCI_QUERY_RESULT_ERR_MSG, CCI_QUERY_RESULT_STMT_TYPE macros to get the results of each query. Regarding the summary of these macros, see the cci_execute_array() function.

Note that the validity check is not performed for each parameter entered in the macro.

The memory of used query results must be released by the cci_query_result_free() function.

Parameters:
  • req_handle -- (IN) Request handle of the prepared statement
  • query_result -- (OUT) Query results
  • err_buf -- (OUT) Database error buffer
Returns:

Success: The number of queries, Failure: Negative number

  • CCI_ER_REQ_HANDLE
  • CCI_ER_COMMUNICATION
...
T_CCI_QUERY_RESULT *qr;
...

cci_execute( ... );
res = cci_execute_result(req_h, &qr, &err_buf);
if (res < 0)
{
    /* error */
}
else
{
    for (i=1 ; i <= res ; i++)
    {
        result_count = CCI_QUERY_RESULT_RESULT(qr, i);
        stmt_type = CCI_QUERY_RESULT_STMT_TYPE(qr, i);
    }
    cci_query_result_free(qr, res);
}
...
int cci_fetch(int req_handle, T_CCI_ERROR *err_buf)

The cci_fetch function fetches the query result executed by cci_execute() from the server-side CAS and stores it to the client buffer. The cci_get_data() function can be used to identify the data of a specific column from the fetched query result.

Parameters:
  • req_handle -- (IN) Request handle
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CAS_ER_HOLDABLE_NOT_ALLOWED
  • CCI_ER_NO_MORE_DATA
  • CCI_ER_RESULT_SET_CLOSED
  • CCI_ER_DELETED_TUPLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_NO_MORE_MEMORY
int cci_fetch_buffer_clear(int req_handle)

The cci_fetch_buffer_clear function clears the records temporarily stored in the client buffer.

Parameters:
  • req_handle -- Request handle
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
int cci_fetch_sensitive(int req_handle, T_CCI_ERROR *err_buf)

The cci_fetch_sensitive function sends changed values for sensitive column when the SELECT query result is delivered. If the results by req_handle are not sensitive, they are same as the ones by cci_fetch(). The return value of CCI_ER_DELETED_TUPLE means that the given row has been deleted.

Parameters:
  • req_handle -- (IN) Request handle
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CCI_ER_NO_MORE_DATA
  • CCI_ER_COMMUNICATION
  • CCI_ER_DBMS
  • CCI_ER_DELETED_TUPLE

sensitive column means the item that can provide updated value in the SELECT list when you re-request the results. For example, if a column is directly used as an item of the SELECT list without aggregation operation, this column can be called a sensitive column.

When you fetch the result again, the sensitive result receive the data from the server, not from the client buffer.

int cci_fetch_size(int req_handle, int fetch_size)

This function is deprecated.

CCI_AUTOCOMMIT_MODE cci_get_autocommit(int conn_handle)

The cci_get_autocommit function returns the auto-commit mode currently configured.

Parameters:
  • conn_handle -- (IN) Connection handle
Returns:

CCI_AUTOCOMMIT_TRUE: Auto-commit mode is ON, CCI_AUTOCOMMIT_FALSE: Auto-commit mode is OFF

int cci_get_bind_num(int req_handle)

The cci_get_bind_num function gets the number of input bindings. If the SQL statement used during preparation is composed of multiple queries, it represents the number of input bindings used in all queries.

Parameters:
  • req_handle -- (IN) Request handle for the prepared statement
Returns:

The number of input bindings

  • CCI_ER_REQ_HANDLE
int cci_get_cas_info(int conn_handle, char *info_buf, int buf_length, T_CCI_ERROR * err_buf)

Retrieve CAS information which is connected to conn_handle. The string of the below format is returned to the info_buf.

<host>:<port>,<cas id>,<cas process id>

The below is an example.

127.0.0.1:33000,1,12916

Through CAS ID, you can check the SQL log file of this CAS easily.

For details, see Checking SQL Log.

Parameters:
  • conn_handle -- (IN) connection handle
  • info_buf -- (OUT) connection information buffer
  • buf_length -- (IN) buffer length of the connection information
  • err_buf -- (OUT) Error buffer
Returns:

error code

  • CCI_ER_INVALID_ARGS
  • CCI_ER_CON_HANDLE
int cci_get_class_num_objs(int conn_handle, char *class_name, int flag, int *num_objs, int *num_pages, T_CCI_ERROR *err_buf)

The cci_get_class_num_objs function gets the number of objects of the class_name class and the number of pages being used. If the flag is configured to 1, an approximate value is fetched; if it is configured to 0, an exact value is fetched.

Parameters:
  • conn_handle -- (IN) Connection handle
  • class_name -- (IN) Class name
  • flag -- (IN) 0 or 1
  • num_objs -- (OUT) The number of objects
  • num_pages -- (OUT) The number of pages
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
#define CCI_GET_COLLECTION_DOMAIN(u_type)

If u_type is set, multiset, or sequence type, this macro gets the domain of the set, multiset or sequence. If u_type is not a set type, the return value is the same as u_type.

Returns:Type (CCI_U_TYPE)
int cci_get_cur_oid(int req_handle, char *oid_str_buf)

The cci_get_cur_oid function gets OID of the currently fetched records if CCI_INCLUDE_OID is configured in execution. The OID is represented in string for a page, slot, or volume.

Parameters:
  • conn_handle -- (IN) Request handle
  • oid_str_buf -- (OUT) OID string
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
int cci_get_data(int req_handle, int col_no, int type, void *value, int *indicator)

The cci_get_data function gets the col_no -th value from the currently fetched result.

Parameters:
  • req_handle -- (IN) Request handle
  • col_no -- (IN) One-based column index. It starts with 1.
  • type -- (IN) Data type (defined in the T_CCI_A_TYPE) of value variable
  • value -- (OUT) Variable address for data to be stored
  • indicator --

    (OUT) NULL indicator. (-1 : NULL)

    • If type is CCI_A_TYPE_STR : -1 is returned in case of NULL; the length of string stored in value is returned, otherwise.
    • If type is not CCI_A_TYPE_STR : -1 is returned in case of NULL, 0 is returned, otherwise.
Returns:

Error code (0: success)

  • CCI_ER_REQ_HANDLE
  • CCI_ER_TYPE_CONVERSION
  • CCI_ER_COLUMN_INDEX
  • CCI_ER_ATYPE

The type of the value variable is determined based on the given type argument, and the value or the pointer is copied to the value variable accordingly. For a value to be copied, the memory for the address to be transferred to the value variable must have been previously assigned. Note that if a pointer is copied, a pointer in the application client library is returned, so the value becomes invalid next time the cci_get_data() function is called.

In addition, the pointer returned by the pointer copy must not be freed. However, if the type is CCI_A_TYPE_SET, the memory must be freed by using the cci_set_free() function after using the set because the set is returned after the T_CCI_SET type memory is allocated. The following table shows the summary of type arguments and data types of their corresponding value values.

type value Type Meaning
CCI_A_TYPE_STR char ** pointer copy
CCI_A_TYPE_INT int * value copy
CCI_A_TYPE_FLOAT float * value copy
CCI_A_TYPE_DOUBLE double * value copy
CCI_A_TYPE_BIT T_CCI_BIT * value copy (pointer copy for each member)
CCI_A_TYPE_SET T_CCI_SET * memory allocation and value copy
CCI_A_TYPE_DATE T_CCI_DATE * value copy
CCI_A_TYPE_BIGINT int64_t * (For Windows: __int64 *) value copy
CCI_A_TYPE_BLOB T_CCI_BLOB * memory allocation and value copy
CCI_A_TYPE_CLOB T_CCI_CLOB * memory allocation and value copy

Remark

  • For LOB type, if the cci_get_data() function is called, meta data with the LOB type column (locator) is displayed. To call data of the LOB type column, the cci_blob_read() function should be called.

The below example shows a part of a code to print out the fetched result with cci_get_data().

...

if ((res=cci_get_data(req, i, CCI_A_TYPE_INT, &buffer, &ind))<0) {
    printf( "%s(%d): cci_get_data fail\n", __FILE__, __LINE__);
    goto handle_error;
}
if (ind != -1)
        printf("%d \t|", buffer);
else
        printf("NULL \t|");
...
int cci_get_db_parameter(int conn_handle, T_CCI_DB_PARAM param_name, void *value, T_CCI_ERROR *err_buf)

The cci_get_db_parameter function gets a parameter value specified in the database.

Parameters:
  • conn_handle -- (IN) Connection handle
  • param_name -- (IN) System parameter name
  • value -- (OUT) Parameter value
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_PARAM_NAME
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT

The data type of value for param_name is shown in the table below.

param_name value Type note
CCI_PARAM_ISOLATION_LEVEL int * get/set
CCI_PARAM_LOCK_TIMEOUT int * get/set
CCI_PARAM_MAX_STRING_LENGTH int * get only

In cci_get_db_parameter() and cci_set_db_parameter(), the input/output unit of CCI_PARAM_LOCK_TIMEOUT is milliseconds.

Warning

In the earlier version of CUBRID 9.0, you should be careful that the output unit of CCI_PARAM_LOCK_TIMEOUT is second.

CCI_PARAM_MAX_STRING_LENGTH is measured in bytes and it gets a value defined in the MAX_STRING_LENGTH broker parameter.

int cci_get_db_version(int conn_handle, char *out_buf, int out_buf_size)

The cci_get_db_version function gets the Database Management System (DBMS) version.

Parameters:
  • conn_handle -- (IN) Connection handle
  • out_buf -- (OUT) Result buffer
  • out_buf_size -- (IN) out_buf size
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
int cci_get_err_msg(int err_code, char *msg_buf, int msg_buf_size)

The cci_get_err_msg function stores error messages corresponding to the error code in the error message buffer. For details on error codes and error messages, see CCI Error Codes and Error Messages.

Parameters:
  • err_code -- (IN) Error code
  • msg_buf -- (OUT) Error message buffer
  • msg_buf_size -- (IN) msg_buf size
Returns:

0: Success, -1: Failure

note:: From CUBRID 9.1, CUBRID ensures that all functions which have err_buf parameter store an error value into err_buf parameter, so you don't need to use cci_get_err_msg function if a function has err_buf parameter.

req = cci_prepare (con, query, 0, &err_buf);
if (req < 0)
{
    printf ("error: %d, %s\n", err_buf.err_code, err_buf.err_msg);
    goto handle_error;
}

On the previous version of 9.1, an err_buf value was stored only when CCI_ER_DBMS error occurred. So printing an error message should have been separated by CCI_ER_DBMS error.

req = cci_prepare (con, query, 0, &err_buf);
if (req < 0)
{
    if (req == CCI_ER_DBMS)
    {
        printf ("error: %s\n", err_buf.err_msg);
    }
    else
    {
        char msg_buf[1024];
        cci_get_err_msg(req, msg_buf, 1024);
        printf ("error: %s\n", msg_buf);
    }
    goto handle_error;
}

From 9.1, you can simplify the branch of the above code by using cci_get_error_msg function.

req = cci_prepare (con, query, 0, &err_buf);
if (req < 0)
{
    char msg_buf[1024];
    cci_get_error_msg(req, err_buf, msg_buf, 1024);
    printf ("error: %s\n", msg_buf);
    goto handle_error;
}
int cci_get_error_msg(int err_code, T_CCI_ERROR *err_buf, char *msg_buf, int msg_buf_size)

Saves the error messages corresponding to the CCI error codes in the message buffer. If the value of CCI error code is CCI_ER_DBMS, the database error buffer (err_buf) receives the error message sent from the data server and saves it in the message buffer(msg_buf). For details on error codes and messages, see CCI Error Codes and Error Messages.

Parameters:
  • err_code -- (IN) Error code
  • err_buf -- (IN) Database error buffer
  • msg_buf -- (OUT) Error message buffer
  • msg_buf_size -- (IN) msg_buf size
Returns:

0: Success, -1: Failure

int cci_get_holdability(int conn_handle)

Returns the cursor holdability setting value about the result set from the connection handle. When it is 1, the connection is disconnected or the cursor is holdable until the result set is intentionally closed regardless of commit. When it is 0, the result set is closed when committed and the cursor is not holdable. For more details on cursor holdability, see Cursor Holdability.

Parameters:
  • conn_handle -- (IN) Connection handle
Returns:

0 (not holdable), 1 (holdable)

  • CCI_ER_CON_HANDLE
int cci_get_last_insert_id(int conn_handle, void *value, T_CCI_ERROR *err_buf)

Gets the primary key of the INSERT statement which executed at the last time.

Parameters:
  • conn_handle -- (IN) Request handle
  • value -- (OUT) The pointer of the result buffer pointer(char **). It stores the last primary key of INSERT statement executed on the last time. The memory which this pointer indicates doesn't need to be released, because it is the fixed buffer inside the connection handle.
  • err_buf -- (OUT) Error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_USED_CONNECTION
  • CCI_ER_INVALID_ARGS
#include <stdio.h>
#include "cas_cci.h"

int main ()
{
    int con = 0;
    int req = 0;

    int error;
    T_CCI_ERROR cci_error;


    char *query = "insert into t1 values(NULL);";
    char *value = NULL;

    con = cci_connect ("localhost", 33000, "demodb", "dba", "");

    if (con < 0)
    {
        printf ("con error\n");
        return;
    }

    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("cci_prepare error: %d\n", req);
        printf ("cci_error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        return;
    }
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("cci_execute error: %d\n", error);
        return;
    }

    error = cci_get_last_insert_id (con, &value, &cci_error);
    if (error < 0)
    {
        printf ("cci_get_last_insert_id error: %d\n", error);
        return;
    }

    printf ("## last insert id: %s\n", value);

    error = cci_close_req_handle (req);
    error = cci_disconnect (con, &cci_error);
    return 0;
}
int cci_get_login_timeout(int conn_handle, int *timeout, T_CCI_ERROR *err_buf)

Return login timeout value to timeout.

Parameters:
  • conn_handle -- (IN) Connection handle
  • timeout -- (OUT) A pointer to login timeout value(unit: millisecond)
  • err_buf -- (OUT) Error buffer
Returns:

Error code (0: success)

  • CCI_ER_INVALID_ARGS
  • CCI_ER_CON_HANDLE
  • CCI_ER_USED_CONNECTION
int cci_get_query_plan(int req_handle, char **out_buf_p)

Saves the query plan to the result buffer; the query plan about the request handle which the cci_prepare function returned.

You can call this function whether to call the cci_execute function or not.

After calling the cci_get_query_plan function, if the use of a result buffer ends, you should call the cci_query_info_free() function to release the result buffer created by cci_get_query_plan function.

char *out_buf;
...
req = cci_prepare (con, query, 0, &cci_error);
...
ret = cci_get_query_plan(req, &out_buf);
...
printf("plan = %s", out_buf);
cci_query_info_free(out_buf);
Parameters:
  • req_handle -- (IN) Request handle
  • out_buf_p -- (OUT) The pointer of a result buffer pointer
Returns:

Error code

  • CCI_ER_REQ_HANDLE
  • CCI_ER_CON_HANDLE
  • CCI_ER_USED_CONNECTION
int cci_query_info_free(char *out_buf)

Releases the result buffer memory allocated from the cci_get_query_plan() function.

Parameters:
  • req_handle -- (IN) Request handle
  • out_buf -- (OUT) Result buffer pointer
Returns:

Error code

  • CCI_ER_NO_MORE_MEMORY
int cci_get_query_timeout(int req_handle)

The cci_get_query_timeout function returns timeout configured for query execution.

Parameters:
  • req_handle -- (IN) Request handle
Returns:

Success: Timeout value configured in current request handle (unit: msec.), Failure: Error code

  • CCI_ER_REQ_HANDLE
T_CCI_COL_INFO* cci_get_result_info(int req_handle, T_CCI_CUBRID_STMT *stmt_type, int *num)

If the prepared statement is SELECT, the T_CCI_COL_INFO struct that stores the column information about the execution result can be obtained by using this function. If it is not SELECT, NULL is returned and the num value becomes 0.

Parameters:
  • req_handle -- (IN) Request handle for the prepared statement
  • stmt_type -- (OUT) Command type
  • num -- (OUT) he number of columns in the SELECT statement (if stmt_type is CUBRID_STMT_SELECT)
Returns:

Success: Result info pointer, Failure: NULL

You can access the T_CCI_COL_INFO struct directly to get the column information from the struct, but you can also use a macro to get the information, which is defined as follows. The address of the T_CCI_COL_INFO struct and the column index are specified as parameters for each macro. The macro can be called only for the SELECT query. Note that the validity check is not performed for each parameter entered in each macro. If the return type of the macro is char*, do not free the memory pointer.

Macro Return Type Meaning
CCI_GET_RESULT_INFO_TYPE T_CCI_U_TYPE column type
CCI_GET_RESULT_INFO_SCALE short column scale
CCI_GET_RESULT_INFO_PRECISION int column precision
CCI_GET_RESULT_INFO_NAME char * column name
CCI_GET_RESULT_INFO_ATTR_NAME char * column attribute name
CCI_GET_RESULT_INFO_CLASS_NAME char * column class name
CCI_GET_RESULT_INFO_IS_NON_NULL char (0 or 1) whether a column is NULL
col_info = cci_get_result_info (req, &stmt_type, &col_count);
if (col_info == NULL)
{
  printf ("get_result_info error\n");
  goto handle_error;
}

for (i = 1; i <= col_count; i++)
{
  printf ("%-12s = %d\n", "type", CCI_GET_RESULT_INFO_TYPE (col_info, i));
  printf ("%-12s = %d\n", "scale",
          CCI_GET_RESULT_INFO_SCALE (col_info, i));
  printf ("%-12s = %d\n", "precision",
          CCI_GET_RESULT_INFO_PRECISION (col_info, i));
  printf ("%-12s = %s\n", "name", CCI_GET_RESULT_INFO_NAME (col_info, i));
  printf ("%-12s = %s\n", "attr_name",
          CCI_GET_RESULT_INFO_ATTR_NAME (col_info, i));
  printf ("%-12s = %s\n", "class_name",
          CCI_GET_RESULT_INFO_CLASS_NAME (col_info, i));
  printf ("%-12s = %s\n", "is_non_null",
          CCI_GET_RESULT_INFO_IS_NON_NULL (col_info,i) ? "true" : "false");
}
#define CCI_GET_RESULT_INFO_ATTR_NAME(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_ATTR_NAME macro gets the actual attribute name of the index-th column of a prepared SELECT list. If there is no name for the attribute (constant, function, etc), " " (empty string) is returned. It does not check whether the specified argument, res_info, is NULL and whether index is valid. You cannot delete the returned memory pointer with free().

Parameters:
  • res_info -- (IN) A pointer to the column information fetched by cci_get_result_info()
  • index -- (IN) Column index
Returns:

Attribute name (char *)

#define CCI_GET_RESULT_INFO_CLASS_NAME(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_CLASS_NAME macro gets the index-th column's class name of a prepared SELECT list. It does not check whether the specified argument, res_info, is NULL and whether index is valid. You cannot delete the returned memory pointer with free (). The return value can be NULL.

Parameters:
Returns:

Class name (char *)

#define CCI_GET_RESULT_INFO_IS_NON_NULL(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_IS_NON_NULL macro gets a value indicating whether the index-th column of a prepared SELECT list is nullable. It does not check whether the specified argument, res_info, is NULL and whether index is valid.

When a column of a SELECT list is not a column but an expression, CUBRID cannot judge it's NON_NULL or not; therefore, CCI_GET_RESULT_INFO_IS_NON_NULL macro always returns 0.

Parameters:
Returns:

0: nullable, 1: non NULL

#define CCI_GET_RESULT_INFO_NAME(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_NAME macro gets the index-th column's name of a prepared SELECT list. It does not check whether the specified argument, res_info, is NULL and whether index is valid. You cannot delete the returned memory pointer with free ().

Parameters:
Returns:

Column name (char *)

#define CCI_GET_RESULT_INFO_PRECISION(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_PRECISION macro gets the index-th column's precision of a prepared SELECT list. It does not check whether the specified argument, res_info, is NULL and whether index is valid.

Parameters:
Returns:

precision (int)

#define CCI_GET_RESULT_INFO_SCALE(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_SCALE macro gets the index-th column's scale of a prepared SELECT list. It does not check whether the specified argument, res_info, is NULL and whether index is valid.

Parameters:
Returns:

scale (int)

#define CCI_GET_RESULT_INFO_TYPE(T_CCI_COL_INFO* res_info, int index)

The CCI_GET_RESULT_INFO_TYPE macro gets the index-th column's type of a prepared SELECT list. It does not check whether the specified argument, res_info, is NULL and whether index is valid.

If you want to check which column is a SET type or not, use CCI_IS_SET_TYPE.

Parameters:
  • res_info -- (IN) pointer to the column information fetched by cci_get_result_info()
  • index -- (IN) Column index
Returns:

Column type (T_CCI_U_TYPE)

#define CCI_IS_SET_TYPE(u_type)

The CCI_IS_SET_TYPE macro check whether u_type is set type.

Parameters:
  • u_type -- (IN)
Returns:

1 : set, 0 : not set

#define CCI_IS_MULTISET_TYPE(u_type)

The CCI_IS_SET_TYPE macro check whether u_type is multiset type.

Parameters:
  • u_type -- (IN)
Returns:

1 : multiset, 0 : not multiset

#define CCI_IS_SEQUENCE_TYPE(u_type)

The CCI_IS_SET_TYPE macro check whether u_type is sequence type.

Parameters:
  • u_type -- (IN)
Returns:

1 : sequence, 0 : not sequence

#define CCI_IS_COLLECTION_TYPE(u_type)

The CCI_IS_SET_TYPE macro check whether u_type is collection (set, multiset, sequence) type.

Parameters:
  • u_type -- (IN)
Returns:

1 : collection (set, multiset, sequence), 0 : not collection

int cci_get_version(int *major, int *minor, int *patch)

The cci_get_version function gets the version of CCI library. In case of version "9.2.0.0001", 9 is the major version, 2 is the minor version, and 0 is the patch version.

Parameters:
  • major -- (OUT) major version
  • minor -- (OUT) minor version
  • patch -- (OUT) patch version
Returns:

Zero without exception (success)

Note

In CUBRID for Linux, you can check the file version of CCI library by using the strings command.

$ strings /home/usr1/CUBRID/lib/libcascci.so | grep VERSION
VERSION=9.2.0.0001
void cci_init()

If you compile the CCI application program for Windows with static linking library(.lib), this function should be called always. In the other cases, this does not need to be called.

int cci_is_holdable(int req_handle)

The cci_is_holdable function returns whether the request handle(req_handle) is holdable or not.

Parameters:
  • req_handle -- (IN) Request handle for the prepared statement
Returns:

1 : holdable, 0 : not holdable

  • CCI_ER_REQ_HANDLE

See also

cci_prepare()

int cci_is_updatable(int req_handle)

The cci_is_updatable function checks the SQL statement executing cci_prepare() can make updatable result set (which means CCI_PREPARE_UPDATABLE is configured in flag when executing cci_prepare()).

Parameters:
  • req_handle -- (IN) Request handle for the prepared statement
Returns:

1 : updatable, 0 : not updatable

  • CCI_ER_REQ_HANDLE
int cci_next_result(int req_handle, T_CCI_ERROR *err_buf)

The cci_next_result function gets results of next query if CCI_EXEC_QUERY_ALL flag is set upon cci_execute(). The information about the query fetched by next_result can be obtained with cci_get_result_info(). If next_result is executed successfully, the database is updated with the information of the current query.

You can execute multiple queries in the written order when CCI_EXEC_QUERY_ALL flag is set on cci_execute(). At this time, CUBRID brings the first query's result after calling cci_execute(); CUBRID brings the second and the other queries' results after calling cci_next_result function. At this time, the column information about the query result can be brought by calling cci_get_result_info() function whenever cci_execute() function or cci_next_result function is called.

In other words, when you run Q1, Q2, and Q3 at once with calling cci_prepare() function, the result of Q1 is brought by calling cci_execute(); the result of Q2 or Q3 is brought by calling cci_next_result. The result of Q1, Q2 or Q3 is brought by calling cci_get_result_info() function for each time.

Parameters:
  • req_handle -- (IN) Request handle of a prepared statement
  • err_buf -- (OUT) Database error buffer
Returns:

  • SELECT : The number of results
  • INSERT, UPDATE : The number of records reflected
  • Others : 0
  • Failure : Error code
    • CCI_ER_REQ_HANDLE
    • CCI_ER_DBMS
    • CCI_ER_COMMUNICATION

The error code CAS_ER_NO_MORE_RESULT_SET means that no more result set exists.

int cci_oid(int conn_handle, T_CCI_OID_CMD cmd, char *oid_str, T_CCI_ERROR *err_buf)

By the value of cmd argument, it executes the following behavior.

  • CCI_OID_DROP: Deletes the given oid.
  • CCI_OID_IS_INSTANCE: Checks whether the given oid is an instance oid.
  • CCI_OID_LOCK_READ: Sets read lock on the given oid.
  • CCI_OID_LOCK_WRITE: Sets write lock on the given oid.
Parameters:
  • conn_handle -- (IN) Connection handle
  • cmd -- (IN) CCI_OID_DROP, CCI_OID_IS_INSTANCE, CCI_OID_LOCK_READ, CCI_OID_LOCK_WRITE
  • oid_str -- (IN) oid
  • err_buf -- (OUT) Database error buffer
Returns:

  • when cmd is CCI_OID_IS_INSTANCE

    • 0 : Non-instance
    • 1 : Instance
    • < 0 : error
  • when cmd is CCI_OID_DROP, CCI_OID_LOCK_READ or CCI_OID_LOCK_WRITE

    Error code (0: success)

    • CCI_ER_CON_HANDLE
    • CCI_ER_CONNECT
    • CCI_ER_OID_CMD
    • CCI_ER_OBJECT
    • CCI_ER_DBMS
int cci_oid_get(int conn_handle, char *oid_str, char **attr_name, T_CCI_ERROR *err_buf)

The cci_oid_get function gets the attribute values of the given oid. attr_name is an array of the attributes, and it must end with NULL. If attr_name is NULL, the information of all attributes is fetched. The request handle has the same form as when the SQL statement "SELECT attr_name FROM oid_class WHERE oid_class = oid" is executed.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • attr_name -- (IN) A list of attributes
  • err_buf -- (OUT) Database error buffer
Returns:

Success: Request handle, Failure: Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_CONNECT
int cci_oid_get_class_name(int conn_handle, char *oid_str, char *out_buf, int out_buf_len, T_CCI_ERROR *err_buf)

The cci_oid_get_class_name function gets the class name of the given oid.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • out_buf -- (OUT) Out buffer
  • out_buf_len -- (IN) out_buf length
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_OBJECT
  • CCI_ER_DBMS
int cci_oid_put(int conn_handle, char *oid_str, char **attr_name, char **new_val_str, T_CCI_ERROR *err_buf)

The cci_oid_put function configures the attr_name attribute values of the given oid to new_val_str. The last value of attr_name must be NULL. Any value of any type must be represented as a string. The value represented as a string is applied to the database after being converted depending on the attribute type on the server. To insert a NULL value, configure the value of new_val_str [i] to NULL.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oid_str -- (IN) oid
  • attr_name -- (IN) The list of attribute names
  • new_val_str -- (IN) The list of new values
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
int cci_oid_put2(int conn_handle, char *oidstr, char **attr_name, void **new_val, int *a_type, T_CCI_ERROR *err_buf)

The cci_oid_put2 function sets the attr_name attribute values of the given oid to new_val. The last value of attr_name must be NULL. To insert a NULL value, set the value of new_val [i] to NULL.

Parameters:
  • conn_handle -- (IN) Connection handle
  • oidstr -- (IN) oid
  • attr_name -- (IN) A list of attribute names
  • new_val -- (IN) A new value array
  • a_type -- (IN) new_val type array
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT

The type of new_val [i] for a_type is shown in the table below.

Type of new_val[i] for a_type

Type value type
CCI_A_TYPE_STR char **
CCI_A_TYPE_INT int *
CCI_A_TYPE_FLOAT float *
CCI_A_TYPE_DOUBLE double *
CCI_A_TYPE_BIT T_CCI_BIT *
CCI_A_TYPE_SET T_CCI_SET *
CCI_A_TYPE_DATE T_CCI_DATE *
CCI_A_TYPE_BIGINT int64_t * (For Windows: __int64 *)
char *attr_name[array_size]
void *attr_val[array_size]
int a_type[array_size]
int int_val

...

attr_name[0] = "attr_name0"
attr_val[0] = &int_val
a_type[0] = CCI_A_TYPE_INT
attr_name[1] = "attr_name1"
attr_val[1] = "attr_val1"
a_type[1] = CCI_A_TYPE_STR

...
attr_name[num_attr] = NULL

res = cci_put2(con_h, oid_str, attr_name, attr_val, a_type, &error)
int cci_prepare(int conn_handle, char *sql_stmt, char flag, T_CCI_ERROR *err_buf)

The cci_prepare() function prepares SQL execution by acquiring request handle for SQL statements. If a SQL statement consists of multiple queries, the preparation is performed only for the first query. With the parameter of this function, an address to T_CCI_ERROR where connection handle, SQL statement, flag, and error information are stored.

Parameters:
  • conn_handle -- (IN) Connection handle
  • sql_stmt -- (IN) SQL statement
  • flag -- (IN) prepare flag (CCI_PREPARE_UPDATABLE, CCI_PREPARE_INCLUDE_OID, CCI_PREPARE_CALL or CCI_PREPARE_HOLDABLE)
  • err_buf -- (OUT) Database error buffer
Returns:

Success: Request handle ID (int), Failure: Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_STR_PARAM
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_CONNECT
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_LOGIN_TIMEOUT

CCI_PREPARE_UPDATABLE, CCI_PREPARE_INCLUDE_OID, CCI_PREPARE_CALL or CCI_PREPARE_HOLDABLE can be configured in flag. If CCI_PREPARE_UPDATABLE is configured, updatable resultset is created and CCI_PREPARE_INCLUDE_OID is automatically configured. CCI_PREPARE_UPDATABLE and CCI_PREPARE_HOLDABLE cannot be used simultaneously in flag. If you want to call the Java Stored Procedure, specify CCI_PREPARE_CALL flag into the cci_prepare function. You can see an related example on cci_register_out_param().

The default value of whether to keep result set after commit is cursor holdability. Thus, if you want to configure CCI_PREPARE_UPDATABLE in flag of cci_prepare(), you should call cci_set_holdability() first before calling cci_prepare() so that cursor cannot be maintained.

However, not all updatable resultsets are created even though CCI_PREPARE_UPDATABLE is configured. So you need to check if the results are updatable by using cci_is_updatable() after preparation. You can use cci_oid_put() or cci_oid_put2() to update result sets.

The conditions of updatable queries are as follows:

  • Must be SELECT.
  • OID can be included in the query result.
  • The column to be updated must be the one that belongs to the table specified in the FROM clause.

If CCI_PREPARE_HOLDABLE is set, a cursor is held as long as result set is closed or connection is disconnected after the statement is committed(see Cursor Holdability).

int cci_prepare_and_execute(int conn_handle, char *sql_stmt, int max_col_size, int *exec_retval, T_CCI_ERROR *err_buf)

The cci_prepare_and_execute function executes the SQL statement immediately and returns a request handle for the SQL statement. A request handle, SQL statement, the maximum length of a column to be fetched, error code, and the address of a T_CCI_ERROR construct variable in which error information being stored are specified as arguments. max_col_size is a value to configure the maximum length of a column to be sent to a client when the column of a SQL statement is CHAR, VARCHAR, BIT, or VARBIT. If this value is 0, full length is fetched.

Parameters:
  • conn_handle -- (IN) Connection handle
  • sql_stmt -- (IN) SQL statement
  • max_col_size -- (IN) The maximum length of a column to be fetched when it is a string data type in bytes. If this value is 0, full length is fetched.
  • exec_retval -- (OUT) Success: Affected rows, Failure: Error code
  • err_buf -- (OUT) Database error buffer
Returns:

Success: Request handle ID (int), Failure: Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_STR_PARAM
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_CONNECT
  • CCI_ER_QUERY_TIMEOUT
T_CCI_PROPERTIES * cci_property_create()

The cci_property_create function creates T_CCI_PROPERTIES struct to configure DATASOURCE of CCI.

Returns:Success: T_CCI_PROPERTIES struct pointer in which memory is allocated, Failure: NULL
void cci_property_destroy(T_CCI_PROPERTIES * properties)

The cci_property_destroy function destroys T_CCI_PROPERTIES struct.

Parameters:
  • properties -- T_CCI_PROPERTIES struct pointer to be destroyed
char *cci_property_get(T_CCI_PROPERTIES * properties, char *key)

The cci_property_get function retrieves the property value configured in the T_CCI_PROPERTIES struct.

Parameters:
  • properties -- T_CCI_PROPERTIES struct pointer which gets value corresponding to key
  • key -- Name of property to be retrieved (For name and description available properties, see the cci_property_set())
Returns:

Success: String pointer of value corresponding to key, Failure: NULL

int cci_property_set(T_CCI_PROPERTIES *properties, char *key, char *value)

It configures a property value in T_CCI_PROPERTIES struct.

Parameters:
  • properties -- T_CCI_PROPERTIES struct pointer in which key and value are stored
  • key -- String pointer of property name
  • value -- String pointer of property value
Returns:

Success: 1, Failure: 0

The property names and its meanings that can be configured in the struct are as follows:

Property name Type Default Description
user string   DB user name.
password string   DB user password.
url string   Connection URL. For specifying connection URL string, see cci_connect_with_url().
pool_size int 10 Maximum number of connections which a connection pool can have.
max_pool_size int pool_size Total number of connections to create when creating an initial datasource. maximum value is INT_MAX.
max_wait msec 1000 Maximum waiting time to get connection.
pool_prepared_statement bool false Whether to enable statement pooling. true or false.
max_open_prepared_statement int 1000 The maximum number of prepared statements to maintain in the statement pool.
login_timeout msec 0(inf.) Login timeout applied when you create a datasource with cci_datasource_create() function or internal timeout occurs in prepare/execute function.
query_timeout msec 0(inf.) Query timeout.
disconnect_on_query_timeout bool no Whether to terminate connection when execution is discarded due to query execution timeout. yes or no.
default_autocommit bool CCI_DEFAULT_AUTOCOMMIT in cubrid_broker.conf Auto-commit mode specified when a datasource is created by cci_datasource_create() function. true or false.
default_isolation string isolation_level in cubrid.conf Transaction isolation level specified when a datasource is created by cci_datasource_create() function. See the below table.
default_lock_timeout msec lock_timeout in cubrid.conf lock timeout specified when a datasource is created by cci_datasource_create() function.

If the number of prepared statements exceeds max_open_prepared_statement value, the oldest prepared statement is released from the statement pool. If you reuse it later, it is added to the statement pool again.

A number of connections which a connection pool can contain is changable by using cci_datasource_change_property() function when it's required, but it cannot exceed max_pool_size. You can change this number when you want to handle the limitation of the number of connections. For example, usually set the number less than max_pool_size; raise the number when more connections are required than expected; shrink the number again when many connections are not required.

The number of connections which a connection pool can contain is limited until pool_size; it's maximum value is max_pool_size.

When you set login_timeout, default_autocommit, default_isolation or default_lock_timeout, these specified values are used in a connection which is returend when calling cci_datasource_borrow() function.

login_timeout, default_autocommit, default_isolation or default_lock_timeout can be changed even after calling cci_datasource_borrow() function. Regarding this, see cci_set_login_timeout(), cci_set_autocommit(), cci_set_isolation_level(), cci_set_lock_timeout(). Changed values by functions which the name starts with cci_set_ are only applied to the changed connection objects, and after the connection is released, they are restored as the specified values by cci_property_set(). It is restored as the default value when there is no value specified by cci_property_set() function.

Note

  • When specifying values together in cci_property_set() function and URL string, values specified in cci_property_set() function have the first priority.
  • login_timeout is applied when you create a DATASOURCE object and internal reconnection occurs in cci_prepare() or cci_execute() function. Internal reconnection occurs when you get the connection object from DATASOURCE and from cci_connect()/cci_connect_with_url() function.
  • Creating time of a DATASOURCE object can take more than an internal reconnection time; therefore, you can consider to apply login_timeout differently on these two cases. For example, if you want to set 5000(5 sec.) in the former and 2000(2 sec.) in the later, for the later, use cci_set_login_timeout() after creating a DATASOURCE.

default_isolation has one of the following configuration values. For details on isolation level, see SET TRANSACTION ISOLATION LEVEL.

isolation_level Configuration Value
SERIALIZABLE "TRAN_SERIALIZABLE"
REPEATABLE READ CLASS with REPEATABLE READ INSTANCES "TRAN_REP_CLASS_REP_INSTANCE" or "TRAN_REP_READ"
REPEATABLE READ CLASS with READ COMMITTED INSTANCES "TRAN_REP_CLASS_COMMIT_INSTANCE" or "TRAN_READ_COMMITTED" or "TRAN_CURSOR_STABILITY"
REPEATABLE READ CLASS with READ UNCOMMITTED INSTANCES "TRAN_REP_CLASS_UNCOMMIT_INSTANCE" or "TRAN_READ_UNCOMMITTED"
READ COMMITTED CLASS with READ COMMITTED INSTANCES "TRAN_COMMIT_CLASS_COMMIT_INSTANCE"
READ COMMITTED CLASS with READ UNCOMMITTED INSTANCES "TRAN_COMMIT_CLASS_UNCOMMIT_INSTANCE"

DB user's name and password can be specified by the setting of user and password directly, or by the setting of user and password in url.

The following shows how to work as the first priority if both are specified.

  • If both are specified, the value of direct setting will be first.
  • If one of them is NULL, the value which is not NULL is used.
  • If both are NULL, they are used as NULL value.
  • If the direct setting value of DB user is NULL then "public" is used, else if the direct setting value of the password is NULL then NULL is used.
  • If the direct setting value of the password is NULL, it follows the setting of URL.

The following shows that the DB user's name becomes "dba" and the password becomes "cubridpwd".

cci_property_set(ps, "user", "dba");
cci_property_set(ps, "password", "cubridpwd");
  ...
cci_property_set(ps, "url", "cci:cubrid:192.168.0.1:33000:demodb:public:mypwd:?logSlowQueries=true&slowQueryThresholdMillis=1000&logTraceApi=true&logTraceNetwork=true");
int cci_query_result_free(T_CCI_QUERY_RESULT* query_result, int num_query)

The cci_query_result_free function releases query results created by cci_execute_batch(), cci_execute_array() or cci_execute_result() function from memory.

Parameters:
  • query_result -- (IN) Query results to release from memory
  • num_query -- (IN) The number of arrays in query_result
Returns:

0: success

T_CCI_QUERY_RESULT *qr;
char **sql_stmt;

...

res = cci_execute_array(conn, &qr, &err_buf);

...

cci_query_result_free(qr, res);
#define CCI_QUERY_RESULT_ERR_NO(T_CCI_QUERY_RESULT* query_result, int index)

Since query results performed by cci_execute_batch(), cci_execute_array(), or cci_execute_result() function are stored as an array of T_CCI_QUERY_RESULT structure, you need to check the query result for each item of the array.

CCI_QUERY_RESULT_ERR_NO fetches the error number for the array item specified as index, if it is not an error, it returns 0.

Parameters:
  • query_result -- (IN) Query result to retrieve
  • index -- (IN) Index of the result array(base :1). It represents a specific location of the result array.
Returns:

Error number

#define CCI_QUERY_RESULT_ERR_MSG(T_CCI_QUERY_RESULT* query_result, int index)

The CCI_QUERY_RESULT_ERR_MSG macro gets error messages about query results executed by cci_execute_batch(), cci_execute_array() or cci_execute_result() function. If there is no error message, this macro returns ""(empty string). It does not check whether the specified argument, query_result, is NULL, and whether index is valid.

Parameters:
  • query_result -- (IN) Query results of to be executed
  • index -- (IN) Column index (base: 1)
Returns:

Error message

#define CCI_QUERY_RESULT_RESULT(T_CCI_QUERY_RESULT* query_result, int index)

The CCI_QUERY_RESULT_RESULT macro gets the result count executed by cci_execute_batch(), cci_execute_array() or cci_execute_result() function. It does not check whether the specified argument, query_result, is NULL and whether index is valid.

Parameters:
  • query_result -- (IN) Query results to be retrieved
  • index -- (IN) Column index (base: 1)
Returns:

result count

#define CCI_QUERY_RESULT_STMT_TYPE(T_CCI_QUERY_RESULT* query_result, int index)

Since query results performed by cci_execute_batch(), cci_execute_array() or cci_execute_result() fuction are stored as an array of T_CCI_QUERY_RESULT type, you need to check the query result for each item of the array.

The CCI_QUERY_RESULT_STMT_TYPE macro gets the statement type for the array items specified as index.

It does not check whether the specified argument, query_result, is NULL and whether index is valid.

Parameters:
  • query_result -- (IN) Query results to be retrieved
  • index -- (IN) Column index (base: 1)
Returns:

statement type (T_CCI_CUBRID_STMT)

int cci_register_out_param(int req_handle, int index)

The cci_register_out_param function is used to bind the parameters as outbind in Java Stored Procedure. The index value begins from 1. To call this function, CCI_PREPARE_CALL flag of cci_prepare function should be specified.

Parameters:
  • req_handle -- (IN) Request handle
Returns:

Error code

  • CCI_ER_BIND_INDEX
  • CCI_ER_REQ_HANDLE
  • CCI_ER_CON_HANDLE
  • CCI_ER_USED_CONNECTION

The following shows to print out "Hello, CUBRID" string with Java Stored Procedure.

To use Java Stored Procedure, firstly specify java_stored_procedure parameter in cubrid.conf as yes, then start the database.

$ vi cubrid.conf
java_stored_procedure=yes

$ cubrid service start
$ cubrid server start demodb

Implement and compile the class to be used as Java Stored Procedure.

public class SpCubrid{
    public static void outTest(String[] o) {
        o[0] = "Hello, CUBRID";
    }
}

%javac SpCubrid.java

Load the compiled Java class into CUBRID.

$ loadjava demodb SpCubrid.class

Register the loaded Java class.

   -- csql>

   CREATE PROCEDURE test_out(x OUT STRING)
   AS LANGUAGE JAVA
   NAME 'SpCubrid.outTest(java.lang.String[] o)';

On the CCI application program, specify **CCI_PREPARE_CALL** flag into the **cci_prepare** function, and bring the fetching result after setting the position of the outbind parameter by calling **cci_register_out_param**.
// On Linux, compile with "gcc -g -o jsp jsp.c -I$CUBRID/include/ -L$CUBRID/lib/ -lcascci -lpthread"

#include <stdio.h>
#include <unistd.h>
#include <cas_cci.h>
char *cci_client_name = "test";

int
main (int argc, char *argv[])
{
    int con = 0, req = 0, res, ind, i, col_count;
    T_CCI_ERROR error;
    T_CCI_COL_INFO *res_col_info;
    T_CCI_CUBRID_STMT cmd_type;
    char *buffer, db_ver[16];

    if ((con = cci_connect ("localhost", 33000, "demodb", "dba", "")) < 0)
    {
        printf ("%s(%d): cci_connect fail\n", __FILE__, __LINE__);
        return -1;
    }

    if ((req = cci_prepare (con, "call test_out(?)", CCI_PREPARE_CALL, &error)) < 0)
    {
        printf ("%s(%d): cci_prepare fail(%d)\n", __FILE__, __LINE__,
            error.err_code);
        goto handle_error;
    }
    if ((res = cci_register_out_param (req, 1)) < 0)
    {
        printf ("%s(%d): cci_register_out_param fail(%d)\n", __FILE__, __LINE__,
            error.err_code);
        goto handle_error;
    }
    if ((res = cci_execute (req, 0, 0, &error)) < 0)
    {
      printf ("%s(%d): cci_execute fail(%d)\n", __FILE__, __LINE__,
            error.err_code);
      goto handle_error;
    }
    res = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &error);
    if (res == CCI_ER_NO_MORE_DATA)
    {
        printf ("%s(%d): cci_cursor fail(%d)\n", __FILE__, __LINE__,
            error.err_code);
        goto handle_error;
    }

    if ((res = cci_fetch (req, &error) < 0))
    {
        printf ("%s(%d): cci_fetch(%d, %s)\n", __FILE__, __LINE__,
            error.err_code, error.err_msg);
      goto handle_error;
    }
    if ((res = cci_get_data (req, 1, CCI_A_TYPE_STR, &buffer, &ind)) < 0)
    {
        printf ("%s(%d): cci_get_data fail\n", __FILE__, __LINE__);
        goto handle_error;
    }
    // ind: string length, buffer: a string which came from the out binding parameter of test_out(?) Java SP.
    if (ind != -1)
        printf ("%d, (%s)\n", ind, buffer);
    else // if ind== -1, then data is NULL
        printf ("NULL\n");

    if ((res = cci_close_query_result (req, &error)) < 0)
    {
        printf ("%s(%d): cci_close_query_result fail(%d)\n", __FILE__, __LINE__, error.err_code);
        goto handle_error;
    }

    if ((res = cci_close_req_handle (req)) < 0)
    {
        printf ("%s(%d): cci_close_req_handle fail\n", __FILE__, __LINE__);
        goto handle_error;
    }

    if ((res = cci_disconnect (con, &error)) < 0)
    {
        printf ("%s(%d): cci_disconnect fail(%d)\n", __FILE__, __LINE__,
            error.err_code);
        goto handle_error;
    }
    printf ("Program ended!\n");
    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
        cci_disconnect (con, &error);
    printf ("Program failed!\n");
    return -1;
}

See also

cci_prepare()

int cci_row_count(int conn_handle, int *row_count, T_CCI_ERROR * err_buf)

The cci_row_count function gets the number of rows affected by the last executed query.

Parameters:
  • conn_handle -- (IN) Connection handle
  • row_count -- (OUT) The number of rows affected by the last executed query
  • err_buf -- (OUT) Error buffer
Returns:

Error code

  • CCI_ER_COMMUNICATION
  • CCI_ER_LOGIN_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_DBMS
int cci_savepoint(int conn_handle, T_CCI_SAVEPOINT_CMD cmd, char* savepoint_name, T_CCI_ERROR *err_buf)

The cci_savepoint function configures savepoint or performs transaction rollback to a specified savepoint. If cmd is set to CCI_SP_SET, it configures savepoint and if it is set to CCI_SP_ROLLBACK, it rolls back transaction to specified savepoint.

Parameters:
  • conn_handle -- (IN) Connection handle
  • cmd -- (IN) CCI_SP_SET or CCI_SP_ROLLBACK
  • savepoint_name -- (IN) Savepoint name
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_COMMUNICATION
  • CCI_ER_QUERY_TIMEOUT
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_DBMS
con = cci_connect( ... );
... /* query execute */

/* Sets the savepoint named "savepoint1" */
cci_savepoint(con, CCI_SP_SET, "savepoint1", err_buf);

... /* query execute */

/* Rolls back to specified savepoint,"savepoint1" */
cci_savepoint(con, CCI_SP_ROLLBACK, "savepoint1", err_buf);
int cci_schema_info(int conn_handle, T_CCI_SCHEMA_TYPE type, char *class_name, char *attr_name, char flag, T_CCI_ERROR *err_buf)

The cci_schema_info function gets schema information. If it is performed successfully, the results are managed by the request handle and can be fetched by fetch and getdata. If you want to retrieve a class_name and attr_name by using pattern matching of the LIKE statement, you should configure flag.

Parameters:
  • conn_handle -- (IN) Connection handle
  • type -- (IN) Schema type
  • class_name -- (IN) Class name or NULL
  • attr_name -- (IN) Attribute name or NULL
  • flag -- (IN) Pattern matching flag (CCI_CLASS_NAME_PATTERN_MATCH or CCI_ATTR_NAME_PATTERN_MATCH)
  • err_buf -- (OUT) Database error buffer
Returns:

Success: Request handle, Failure: Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_CONNECT

Two types of flag s, CCI_CLASS_NAME_PATTERN_MATCH, and CCI_ATTR_NAME_PATTERN_MATCH, are used for pattern matching; you can configure these two flag s by using the OR operator ( | ). To use pattern matching, search by using the LIKE statement. For example, to search the information on a column whose class_name is "athlete" and attr_name is "code," you can enter as follows (in the example, "%code" is entered in the value of attr_name).

cci_schema_info(conn, CCI_SCH_ATTRIBUTE, "athlete", "%code", CCI_ATTR_NAME_PATTERN_MATCH, &error);

The table below shows record type for each type.

Record for Each Type

Type Column Order Column Name Column Type
CCI_SCH_CLASS 1 NAME char *
2 TYPE short 0 : system class 1 : vclass 2 : class 3 : proxy
CCI_SCH_VCLASS 1 NAME char *
2 TYPE short 1 : vclass 3 : proxy
CCI_SCH_QUERY_SPEC 1 QUERY_SPEC char *
CCI_SCH_ATTRIBUTE 1 NAME char *
2 DOMAIN int
3 SCALE int
4 PRECISION int
5 INDEXED int 1 : indexed
6 NON_NULL int 1 : non null
7 SHARED int 1 : shared
8 UNIQUE int 1 : unique
9 DEFAULT void *
10 ATTR_ORDER int base : 1
11 CLASS_NAME char *
12 SOURCE_CLASS char *
13 IS_KEY short 1 : key

CCI_SCH_CLASS_ATTRIBUTE

When the attribute of the CCI_SCH_CLASS_ATTRIBUTE column is INSTANCE or SHARED, the order and the name values are identical to those of the column of CCI_SCH_ATTRIBUTE.


CCI_SCH_CLASS_METHOD 1 NAME char *
2 RET_DOMAIN int
3 ARG_DOMAIN char *
CCI_SCH_METHOD_FILE 1 METHOD_FILE char *
CCI_SCH_SUPERCLASS 1 CLASS_NAME char *
2 TYPE short
CCI_SCH_SUBCLASS 1 CLASS_NAME char *
2 TYPE short
CCI_SCH_CONSTRAINT 1 TYPE 0 : unique 1 : index 2 : reverse unique 3 : reverse index int
2 NAME char *
3 ATTR_NAME char *
4 NUM_PAGES int
5 NUM_KEYS int
6 PRIMARY_KEY 1 : primary key short
7 KEY_ORDER short base : 1
CCI_SCH_TRIGGER 1 NAME char *
2 STATUS char *
3 EVENT char *
4 TARGET_CLASS char *
5 TARGET_ATTR char *
6 ACTION_TIME char *
7 ACTION char *
8 PRIORITY float
9 CONDITION_TIME char *
10 CONDITION char *
CCI_SCH_CLASS_PRIVILEGE 1 CLASS_NAME char *
2 PRIVELEGE char *
3 GRANTABLE char *
CCI_SCH_ATTR_PRIVILEGE 1 ATTR_NAME char *
2 PRIVILEGE char *
3 GRANTABLE char *
CCI_SCH_DIRECT_SUPER_CLASS 1 CLASS_NAME char *
2 SUPER_CLASS_NAME char *
CCI_SCH_PRIMARY_KEY 1 CLASS_NAME char *
2 ATTR_NAME char *
3 KEY_SEQ short base : 1
4 KEY_NAME char *

CCI_SCH_IMPORTED_KEYS

Used to retrieve primary key columns that are referred by a foreign key column in a given table. The results are sorted by PKTABLE_NAME and KEY_SEQ.

If this type is specified as a parameter, a foreign key table is specified for class_name , and NULL is specified for attr_name.

1 PKTABLE_NAME char **
2 PKCOLUMN_NAME char **
3 FKTABLE_NAME char **
4 FKCOLUMN_NAME char **
5 KEY_SEQ char **
6 UPDATE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
7 DELETE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
8 FK_NAME char **
9 PK_NAME char **

CCI_SCH_EXPORTED_KEYS

Used to retrieve primary key columns that are referred by all foreign key columns. The results are sorted by FKTABLE_NAME and KEY_SEQ. If this type is specified as a parameter, a primary key table is specified for class_name , and NULL is specified for attr_name.

1 PKTABLE_NAME char **
2 PKCOLUMN_NAME char **
3 FKTABLE_NAME char **
4 FKCOLUMN_NAME char **
5 KEY_SEQ char **
6 UPDATE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
7 DELETE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
8 FK_NAME char **
9 PK_NAME char **

CCI_SCH_CROSS_REFERENCE

Used to retrieve foreign key information when primary keys and foreign keys in a given table are cross referenced. The results are sorted by FKTABLE_NAME and KEY_SEQ.

If this type is specified as a parameter, a primary key is specified for class_name , and a foreign key table is specified for attr_name.

1 PKTABLE_NAME char **
2 PKCOLUMN_NAME char **
3 FKTABLE_NAME char **
4 FKCOLUMN_NAME char **
5 KEY_SEQ char **
6 UPDATE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
7 DELETE_ACTION cascade=0 restrict=1 no action=2 set null=3 int *
8 FK_NAME char **
9 PK_NAME char **

In the cci_schema_info function, the type argument supports the pattern matching of the LIKE statement for the class_name and attr_name.

type, class_name(table name), and attr_name(column name) That Supports Pattern Matching

type class_name attr_name
CCI_SCH_CLASS (VCLASS) string or NULL always NULL
CCI_SCH_ATTRIBUTE (CLASS ATTRIBUTE) string or NULL string or NULL
CCI_SCH_CLASS_PRIVILEGE string or NULL always NULL
CCI_SCH_ATTR_PRIVILEGE always NULL string or NULL
CCI_SCH_PRIMARY_KEY string or NULL always NULL
CCI_SCH_TRIGGER string or NULL always NULL
  • The type with "NULL" in class_name doesn't support the pattern matching about the table name.
  • The type with "NULL" in attr_name doesn't support the pattern matching about the column name.
  • If the pattern flag is not configured, exact matching will be used for the given table and column names; in this case, no result will be returned if the value is NULL.
  • If flag is configured and the value is NULL, the result will be the same as when "%" is given in the LIKE statement. In other words, the result about all tables or all columns will be returned.

Note

TYPE column of CCI_SCH_CLASS and CCI_SCH_VCLASS: The proxy type is added. When used in OLEDB, ODBC or PHP, vclass is represented without distinguishing between proxy and vclass.

// gcc -o schema_info schema_info.c -m64 -I${CUBRID}/include -lnsl ${CUBRID}/lib/libcascci.so -lpthread

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#include "cas_cci.h"

int
main ()
{
  int conn = 0, req = 0, col_count = 0, res = 0, i, ind;
  char *data, query_result_buffer[1024];
  T_CCI_ERROR cci_error;
  T_CCI_COL_INFO *col_info;
  T_CCI_CUBRID_STMT cmd_type;


  conn = cci_connect ("localhost", 33000, "demodb", "dba", "");
  // get all columns' information of table "athlete"
  // req = cci_schema_info(conn, CCI_SCH_ATTRIBUTE, "athlete", "code", 0, &cci_error);
  req =
    cci_schema_info (conn, CCI_SCH_ATTRIBUTE, "athlete", NULL,
                     CCI_ATTR_NAME_PATTERN_MATCH, &cci_error);

  if (req < 0)
  {
      fprintf (stdout, "(%s, %d) ERROR : %s [%d] \n\n", __FILE__, __LINE__,
               cci_error.err_msg, cci_error.err_code);
      goto _END;
  }
  col_info = cci_get_result_info (req, &cmd_type, &col_count);
  if (!col_info && col_count == 0)
  {
      fprintf (stdout, "(%s, %d) ERROR : cci_get_result_info\n\n", __FILE__,
               __LINE__);
      goto _END;
  }
  res = cci_cursor (req, 1, CCI_CURSOR_FIRST, &cci_error);
  if (res == CCI_ER_NO_MORE_DATA)
  {
      goto _END;
  }
  if (res < 0)
  {
      fprintf (stdout, "(%s, %d) ERROR : %s [%d] \n\n", __FILE__, __LINE__,
               cci_error.err_msg, cci_error.err_code);
      goto _END;
  }


  while (1)
  {
      res = cci_fetch (req, &cci_error);
      if (res < 0)
      {
          fprintf (stdout, "(%s, %d) ERROR : %s [%d] \n\n", __FILE__,
                   __LINE__, cci_error.err_msg, cci_error.err_code);
          goto _END;
      }

      for (i = 1; i <= col_count; i++)
      {
          if ((res = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind)) < 0)
          {
              goto _END;
          }
          if (ind != -1)
          {
              strcat (query_result_buffer, data);
              strcat (query_result_buffer, "|");
          }
          else
          {
              strcat (query_result_buffer, "NULL|");
          }
      }
      strcat (query_result_buffer, "\n");

      res = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
      if (res == CCI_ER_NO_MORE_DATA)
      {
          goto _END;
      }
      if (res < 0)
        {
          fprintf (stdout, "(%s, %d) ERROR : %s [%d] \n\n", __FILE__,
                   __LINE__, cci_error.err_msg, cci_error.err_code);
          goto _END;
        }
  }

_END:
  if (req > 0)
    cci_close_req_handle (req);
  if (conn > 0)
    res = cci_disconnect (conn, &cci_error);
  if (res < 0)
    fprintf (stdout, "(%s, %d) ERROR : %s [%d] \n\n", __FILE__, __LINE__,
             cci_error.err_msg, cci_error.err_code);

  fprintf (stdout, "Result : %s\n", query_result_buffer);

  return 0;
}
int cci_set_allocators(CCI_MALLOC_FUNCTION malloc_func, CCI_FREE_FUNCTION free_func, CCI_REALLOC_FUNCTION realloc_func, CCI_CALLOC_FUNCTION calloc_func)

The cci_set_allocators function registers the memory allocation/release functions used by users. By executing this function, you can use user-defined functions for every memory allocation/release jobs being processed in CCI API. If you do not use this function, system functions (malloc, free, realloc, and calloc) are used.

Note

This function can be used only on Linux, so cannot be used on Windows.

Parameters:
  • malloc_func -- (IN) Pointer of externally defined function corresponding to malloc
  • free_func -- (IN) Pointer of externally defined function corresponding to free
  • realloc_func -- (IN) Pointer of externally defined function corresponding to realloc
  • calloc_func -- Pointer of externally defined function corresponding to calloc
Returns:

Error code (0: success)

  • CCI_ER_NOT_IMPLEMENTED
/*
       How to build: gcc -Wall -g -o test_cci test_cci.c -I${CUBRID}/include -L${CUBRID}/lib -lcascci
*/

#include <stdio.h>
#include <stdlib.h>
#include "cas_cci.h"

void *my_malloc(size_t size)
{
    printf ("my malloc: size: %ld\n", size);
    return malloc (size);
}

void *my_calloc(size_t nm, size_t size)
{
    printf ("my calloc: nm: %ld, size: %ld\n", nm, size);
    return calloc (nm, size);
}

void *my_realloc(void *ptr, size_t size)
{
    printf ("my realloc: ptr: %p, size: %ld\n", ptr, size);
    return realloc (ptr, size);
}

void my_free(void *ptr)
{
    printf ("my free: ptr: %p\n", ptr);
    return free (ptr);
}


int test_simple (int con)
{
    int req = 0, col_count = 0, i, ind;
    int error;
    char *data;
    T_CCI_ERROR cci_error;
    T_CCI_COL_INFO *col_info;
    T_CCI_CUBRID_STMT stmt_type;
    char *query = "select * from db_class";

    //preparing the SQL statement
    req = cci_prepare (con, query, 0, &cci_error);
    if (req < 0)
    {
        printf ("prepare error: %d, %s\n", cci_error.err_code,
            cci_error.err_msg);
        goto handle_error;
    }

    //getting column information when the prepared statement is the SELECT query
    col_info = cci_get_result_info (req, &stmt_type, &col_count);
    if (col_info == NULL)
    {
        printf ("get_result_info error\n");
        goto handle_error;
    }

    //Executing the prepared SQL statement
    error = cci_execute (req, 0, 0, &cci_error);
    if (error < 0)
    {
        printf ("execute error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }
    while (1)
    {
        //Moving the cursor to access a specific tuple of results
        error = cci_cursor (req, 1, CCI_CURSOR_CURRENT, &cci_error);
        if (error == CCI_ER_NO_MORE_DATA)
        {
            break;
        }
        if (error < 0)
        {
            printf ("cursor error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
            goto handle_error;
        }

        //Fetching the query result into a client buffer
        error = cci_fetch (req, &cci_error);
        if (error < 0)
        {
            printf ("fetch error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
            goto handle_error;
        }
        for (i = 1; i <= col_count; i++)
        {

            //Getting data from the fetched result
            error = cci_get_data (req, i, CCI_A_TYPE_STR, &data, &ind);
            if (error < 0)
            {
                printf ("get_data error: %d, %d\n", error, i);
                goto handle_error;
            }
            printf ("%s\t|", data);
        }
         printf ("\n");
    }

    //Closing the query result
    error = cci_close_query_result(req, &cci_error);
     if (error < 0)
    {
        printf ("cci_close_query_result error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }

    //Closing the request handle
    error = cci_close_req_handle(req);
    if (error < 0)
    {
        printf ("cci_close_req_handle error\n");
        goto handle_error;
    }

    //Disconnecting with the server
    error = cci_disconnect (con, &cci_error);
    if (error < 0)
    {
        printf ("cci_disconnect error: %d, %s\n", cci_error.err_code, cci_error.err_msg);
        goto handle_error;
    }
    return 0;

handle_error:
    if (req > 0)
        cci_close_req_handle (req);
    if (con > 0)
        cci_disconnect (con, &cci_error);

    return 1;
}

int main()
{
    int con = 0;

    if (cci_set_allocators (my_malloc, my_free, my_realloc, my_calloc) != 0)
    {
        printf ("cannot register allocators\n");
        return 1;
    };

    //getting a connection handle for a connection with a server
    con = cci_connect ("localhost", 33000, "demodb", "dba", "");
    if (con < 0)
    {
        printf ("cannot connect to database\n");
        return 1;
    }

    test_simple (con);
    return 0;
}
int cci_set_autocommit(int conn_handle, CCI_AUTOCOMMIT_MODE  autocommit_mode)

The cci_set_autocommit function configures the auto-commit mode of current database connection. It is only used to turn ON/OFF of auto-commit mode. When this function is called, every transaction being processed is committed regardless of configured mode.

Note

CCI_DEFAULT_AUTOCOMMIT in cubrid_broker.conf determines the default autocommit mode upon program startup.

Parameters:
  • conn_handle -- (IN) Connection handle
  • autocommit_mode -- (IN) Configures the auto-commit mode. It has one of the following value: CCI_AUTOCOMMIT_FALSE or CCI_AUTOCOMMIT_TRUE
Returns:

Error code (0: success)

Note

CCI_DEFAULT_AUTOCOMMIT, a broker parameter configured in the cubrid_broker.conf file, determines whether it is in auto-commit mode upon program startup.

int cci_set_db_parameter(int conn_handle, T_CCI_DB_PARAM param_name, void* value, T_CCI_ERROR *err_buf)

The cci_set_db_parameter function configures a system parameter. For the type of value for param_name, see cci_get_db_parameter().

Parameters:
  • conn_handle -- (IN) Connection handle
  • param_name -- (IN) System parameter name
  • value -- (IN) Parameter value
  • err_buf -- (OUT) Database error buffer
Returns:

Error code (0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_PARAM_NAME
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
int int cci_set_element_type(T_CCI_SET set)

The cci_set_element_type function gets the element type of the T_CCI_SET type value.

Parameters:
  • set -- (IN) cci set pointer
Returns:

Type

void cci_set_free(T_CCI_SET set)

The cci_set_free function releases the memory allocated to the type value of T_CCI_SET fetched by CCI_A_TYPE_SET with cci_get_data(). The T_CCI_SET type value can be created through fetching cci_get_data() or cci_set_make() function.

Parameters:
  • set -- (IN) cci set pointer
int cci_set_get(T_CCI_SET set, int index, T_CCI_A_TYPE a_type, void *value, int *indicator)

The cci_set_get function gets the index -th data for the type value of T_CCI_SET.

Parameters:
  • set -- (IN) cci set pointer
  • index -- (IN) set index (base: 1)
  • a_type -- (IN) Type
  • value -- (OUT) Result buffer
  • indicator -- (OUT) null indicator
Returns:

Error code

  • CCI_ER_SET_INDEX
  • CCI_ER_TYPE_CONVERSION
  • CCI_ER_NO_MORE_MEMORY
  • CCI_ER_COMMUNICATION

The data type of value for a_type is shown in the table below.

a_type value type
CCI_A_TYPE_STR char **
CCI_A_TYPE_INT int *
CCI_A_TYPE_FLOAT float *
CCI_A_TYPE_DOUBLE double *
CCI_A_TYPE_BIT T_CCI_BIT *
CCI_A_TYPE_DATE T_CCI_DATE *
CCI_A_TYPE_BIGINT int64_t * (For Windows: __int64 *)
int cci_set_holdability(int conn_handle, int holdable)

Sets whether to enable or disable cursor holdability of the result set from the connection level. When it is 1, the connection is disconnected or the cursor is holdable until the result set is intentionally closed regardless of commit. When it is 0, the result set is closed when committed and the cursor is not holdable. For more details on cursor holdability, see Cursor Holdability.

Parameters:
  • conn_handle -- (IN) Connection handle
  • holdable -- (IN) Cursor holdability setting value (0: not holdable, 1: holdable)
Returns:

Error Code

  • CCI_ER_INVALID_HOLDABILITY
int cci_set_isolation_level(int conn_handle, T_CCI_TRAN_ISOLATION  new_isolation_level, T_CCI_ERROR *err_buf)

The cci_set_isolation_level function sets the transaction isolation level of connections. All further transactions for the given connections work as new_isolation_level.

Parameters:
  • conn_handle -- (IN) Connection handle
  • new_isolation_level -- (IN) Transaction isolation level
  • err_buf -- (OUT) Database error buffer
Returns:

Error code

  • CCI_ER_CON_HANDLE
  • CCI_ER_CONNECT
  • CCI_ER_ISOLATION_LEVEL
  • CCI_ER_DBMS

Note If the transaction isolation level is set by cci_set_db_parameter(), only the current transaction is affected. When the transaction is complete, the transaction isolation level returns to the one set by CAS. You must use cci_set_isolation_level () to set the isolation level for the entire connection.

int cci_set_lock_timeout(int conn_handle, int locktimeout, T_CCI_ERROR * err_buf)

The cci_set_lock_timeout function specifies the connection lock timeout as milliseconds. This is the same with calling cci_set_db_parameter (conn_id, CCI_PARAM_LOCK_TIMEOUT, &val, err_buf). See cci_set_db_parameter().

Parameters:
  • conn_handle -- (IN) Connection handle
  • locktimeout -- (IN) lock timeout value(Unit: milliseconds).
Returns:

Error code(0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_PARAM_NAME
  • CCI_ER_DBMS
  • CCI_ER_COMMUNICATION
  • CCI_ER_CONNECT
int cci_set_login_timeout(int conn_handle, int timeout, T_CCI_ERROR *err_buf)

The cci_set_login_timeout function specifies the login timeout as milliseconds. The login timeout is applied when an internal reconnection occurs as cci_prepare() or cci_execute() function is called. This change is only applied to the current connection.

Parameters:
  • conn_handle -- (IN) Connection handle
  • timeout -- (IN) Login timeout(unit: milliseconds)
  • err_buf -- (OUT) Error buffer
Returns:

Error code(0: success)

  • CCI_ER_CON_HANDLE
  • CCI_ER_USED_CONNECTION
int cci_set_make(T_CCI_SET *set, T_CCI_U_TYPE u_type, int size, void *value, int *indicator)

The cci_set_make function makes a set of a new CCI_A_TYPE_SET type. The created set is sent to the server as CCI_A_TYPE_SET by cci_bind_param(). The memory for the set created by cci_set_make() must be freed by cci_set_free(). The type of value for u_type is shown in the table below.

Parameters:
  • set -- (OUT) cci set pointer
  • u_type -- (IN) Element type
  • size -- (IN) set size
  • value -- (IN) set element
  • indicator -- (IN) null indicator array
Returns:

Error code

int cci_set_max_row(int req_handle, int max)

The cci_set_max_row function configures the maximum number of records for the results of the SELECT statement executed by cci_execute(). If the max value is 0, it is the same as not setting the value.

Parameters:
  • req_handle -- (IN) Connection handle
  • max -- (IN) The maximum number of rows
Returns:

Error code

req = cci_prepare( ... );
cci_set_max_row(req, 1);
cci_execute( ... );
int cci_set_query_timeout(int req_handle, int milli_sec)

The cci_set_query_timeout function configures timeout value for query execution.

Parameters:
  • req_handle -- (IN) Request handle
  • milli_sec -- Timeout (unit: msec.)
Returns:

Success: Request handle ID (int), Failure: Error code

  • CCI_ER_REQ_HANDLE

The timeout value configured by cci_set_query_timeout affects cci_prepare(), cci_execute(), cci_execute_array(), cci_execute_batch() functions. When timeout occurs in the function and if the disconnect_on_query_timeout value configured in cci_connect_with_url() connection URL is yes, it returns the CCI_ER_QUERY_TIMEOUT error.

These functions can return the CCI_ER_LOGIN_TIMEOUT error if login_timeout is configured in the connection URL, which is an argument of cci_connect_with_url() function; this means that login timeout happens between application client and CAS during re-connection.

It is going through the process of re-connection between application client and CAS when an application restarts or it is re-scheduled. Re-scheduling is a process that CAS chooses an application client, and starts and stops connection in the unit of transaction. If KEEP_CONNECTION, broker parameter, is OFF, it always happens; if AUTO, it can happen depending on its situation. For details, see the description of KEEP_CONNECTION in the Parameter by Broker

int cci_set_size(T_CCI_SET set)

The cci_set_size function gets the number of elements for the type value of T_CCI_SET.

Parameters:
  • set -- (IN) cci set pointer
Returns:

Size
