CUBRID SHARD¶
Database Sharding¶

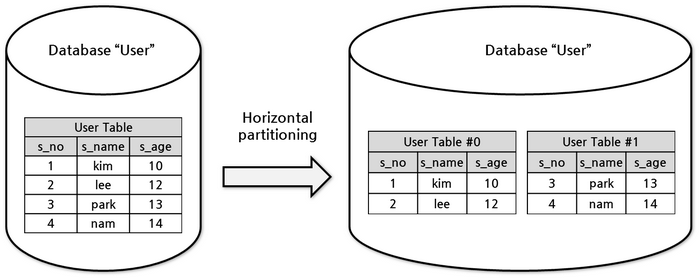

Horizontal partitioning
Horizontal partition is a design to partition the data for which schema is identical, based on the row, into multiple tables and store them. For example, 'User Table' with identical schema can be divided into 'User Table #0' in which users less than 13 years are stored and 'User Table #1' in which users 13 or greater than 13 years old.

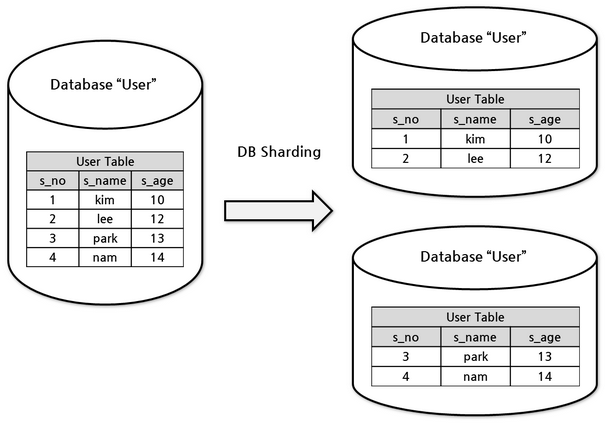

Database sharding
Database sharding is to store data into physically separate databases through horizontal partitioning and to retrieve them. For example, it is a method to store users less than 13 years old in database 0 and store users 13 or greater than 13 years old in database 1 when 'User Table' is located through multiple database. In addition to performance, database sharding is used to distribute and save large data which cannot be saved into one database instance.
Each partitioned database is called a shard or database shard.
CUBRID SHARD
The CUBRID SHARD is middleware for database sharding and its characteristics are as follows:
- Middleware that is used to minimize changes in existing applications, allowing access to transparently sharded data by using Java Database Connectivity (JDBC), a popular choice, or CUBRID C Interface (CCI), which is CUBRID C API.
- In this function, a hint may be added to an existing query to indicate a shard in which the query would be executed.
- It guarantees the unique characteristics of certain transactions.
CUBRID SHARD Terminologies¶
The terminologies used to describe CUBRID SHARD are as follows:
- shard DB : A database that includes a split table and data and processes user requests
- shard metadata : Configuration information for the operation of a CUBRID SHARD. It analyzes the requested query and includes information to select a shard DB which will execute a query and to create a database session with the shard DB.
- shard key (column) : A column used as an identifier to select a shard in the sharding table
- shard key data : A shard key value that corresponds to the hint to identify the shard from the query
- shard ID : An identifier to identify a shard DB
- shard proxy : A CUBRID middleware process that analyzes hints included in user queries and sends requests to a shard DB which will process the query, based on the analyzed hint and the shard metadata
CUBRID SHARD Main Features¶
Middleware Structure¶

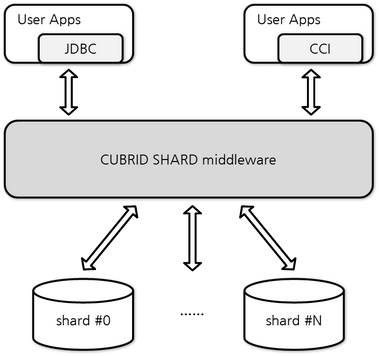

The CUBRID SHARD is middleware, positioned between an application and logically, or physically, split shards. It keeps connection with multiple applications, sends requests from applications to the appropriate shard, and returns the results to the applications.
Generally, it uses Java Database Connectivity (JDBC) or CUBRID C Interface (CCI), an interface used to connect to the CUBRID SHARD, and processes the requests from applications. It does not require additional driver or framework, minimizing the changes in applications.

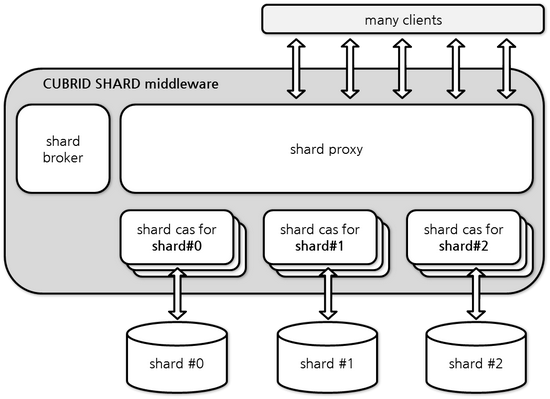

The CUBRID SHARD middleware consists of three processes (broker/proxy/cas) and the brief functionalities of each process are as follows:
- shard broker
- Receives the initial connection request from drivers such as JDBC/CCI and then sends the received request to the shard proxy based on the load balancing policy.
- Monitors and restores the status of the shard proxy process and the shard CAS process.
- shard proxy
- Sends the user request from the driver and then returns the processing result to the application.
- Manages the connection between the driver and the CAS and processes transactions.
- shard CAS
- Creates a connection with the split shard DB and processes the user request received from the shard proxy by using the connection.
- Processes transactions.
Selecting a Shard DB through the Shard SQL Hint¶
Shard SQL Hint
With the hints and configuration data included in a SQL hint statement, the CUBRID SHARD selects a shard DB that will process the requests from applications. The types of available SQL hints are as follows:
| SQL hint | Description |
|---|---|
| /*+ shard_key */ | A hint to specify the position of the bind variable or literal value that corresponds to the shard key column. |
| /*+ shard_val( value ) */ | A hint to explicitly specify the shard key within the hint when there is no column that corresponds to the shard key in the query. |
| /*+ shard_id( shard_id ) */ | A hint used when a user specifies a shard DB to process queries. |
The terms are summarized as shown below: For more information on shard terms, see CUBRID SHARD Terminologies.
- shard key : A column to distinguish shard DBs. In general, this column exists in all or most tables in a shard DB and has a unique value.
- shard id : An identifier that can be used to logically distinguish shards. For example, when one DB is split into four shard DBs, there are four shard IDs.
For more information on the query process using hints and configuration information, see General Procedure of Executing Queries by Using Shard SQL Hint.
Note
When more than one shard hint exist on a query, it works normally if shard hints indicate the same shards, but it fails if each of them indicates the different shard.
SELECT * FROM student WHERE shard_key = /*+ shard_key */ 250 OR shard_key = /*+ shard_key */ 22;
On the above case, it works normally if the shard keys 250 and 22 indicate the same shard, but it fails if they indicate the different shards.
On some driver functions which batches the queries with an array by binding the several values(ex. PreparedStatement.executeBatch in JDBC, cci_execute_array in CCI), if at least the one which accesses to the other shard exists, all executions of the queries fail.
Functions to run several statements at one time on shard environment(ex. Statement.executeBatch in JDBC, cci_execute_batch in CCI) will be supported later.
shard_key Hint
The shard_key hint is to specify the position of a bind or literal variable. This hint should be positioned in front of either of them.
Ex) Specifies the position of a bind variable. Executes the query in the shard DB corresponding to the student_no value that would be bound when executed.
SELECT name FROM student WHERE student_no = /*+ shard_key */ ?;
Ex) Specifies the position of a literal value. Executes the query in the shard DB corresponding to the student_no value (the literal value) that is 123 when executed.
SELECT name FROM student WHERE student_no = /*+ shard_key */ 123;
shard_val Hint
The shard_val hint is used when there is no shard column that can be used to identify the shard DB in the query. It sets the shard key column as the value of the shard_val hint. The shard_val hint can be positioned anywhere in an SQL statement.
Ex) When the shard key is not included in the student_no or in the query, the query is performed in the shard DB in which the shard key (student_no) is 123.
SELECT age FROM student WHERE name =? /*+ shard_val(123) */;
shard_id Hint
Regardless of the shard key column value, the shard_id hint can be used when the user specifies a shard for query execution. The shard_id hint can be positioned anywhere in an SQL statement.
Ex) When the query is performed in shard DB #3, queries students whose value of age is greater than 17 in the shard DB #3.
SELECT * FROM student WHERE age > 17 /*+ shard_id(3) */;
General Procedure of Executing Queries by Using Shard SQL Hint
Executing Queries

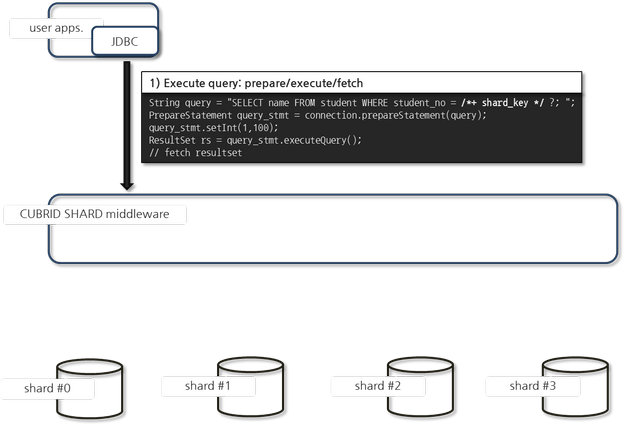

The following shows how a user-requested query is executed.
- An application makes a request for a query to the CUBRID SHARD through the JDBC interface. It adds the shard_key hint to the SQL statement to specify the shard DB from where the query will be executed.
- The SQL hint, like the example above, in the SQL statement, should be positioned in front of the bind variable or literal value of the column specified by the shard key.
The shard SQL hint configured by the bind variable is as follows:
The shard SQL hint specified in the literal value is as follows:

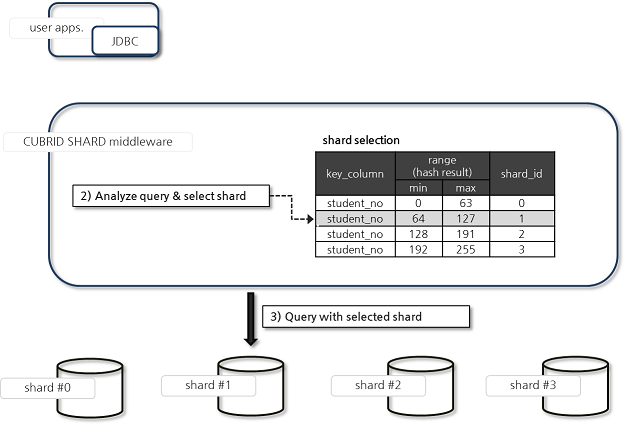

Select a Shard DB to Analyze and Perform a Query
Select a shard DB to analyze and perform the query by following the steps below:
SQL queries received from users are rewritten in the format that is appropriate for internal processing.
Select the shard DB that executed the query by using the SQL statement and hint requested by the user.
When the SQL hint is set in the bind variable, select the shard DB which will execute the query by using the result of hashing the value of the shard_key bind variable and the configuration information.
The hash function can be specified by the user. If not specified, the shard_key value is hashed by using the default hash function. Default hash functions are as follows:
When the shard_key is an integer
Default hash function (shard_key) = shard_key mod SHARD_KEY_MODULAR parameter (default value 256)
When the shard_key is a string
Default hash function (shard_key) = shard_key[0] mod SHARD_KEY_MODULAR parameter (default value 256)
Note
When the shard_key bind variable value is 100, "Default hash function (shard_key) = 100 % 256 = 100." Therefore, the shard DB #1 (the hash result is 100) will be selected and then the user request will be sent to the selected shard DB #1.

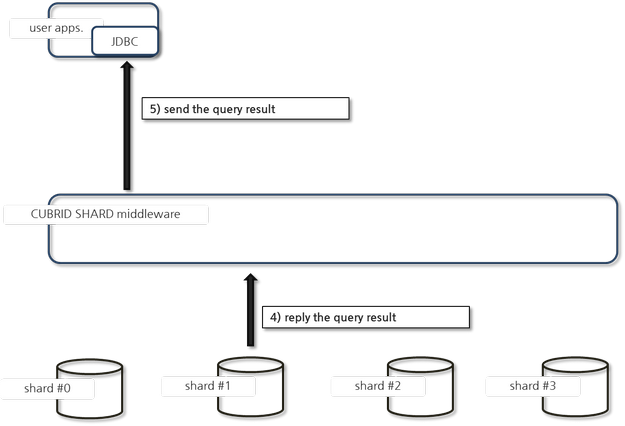

Return the Query Execution Result
Return the query execution result as follows:
- Receives the query execution result from the shard DB #1 and then returns it to the requested application.
Note
On the driver functions which do a batch query processing with the array which binds several values(ex. executeBatch in JDBC, cci_execute_array and cci_execute_batch in CCI ), they fail to run if there is a value which accesses to a different shard.
Transaction Support¶
Transaction Processing
The CUBRID SHARD executes an internal processing procedure to guarantee atomicity among ACID. For example, when an exception such as abnormal termination of an application occurs, the CUBRID SHARD sends a request to rollback to the shard DB which has been processing the request from the application in order to invalidate all changes in the transaction.
The ACID, the characteristic of general transactions, is guaranteed, based on the characteristics and settings of the backend DBMS.
Constraints
2 Phase Commit (2PC) is unavailable; therefore, an error occurs when a query is executed by using several shard DBs in a single transaction.
Quick Start¶
Configuration Example¶

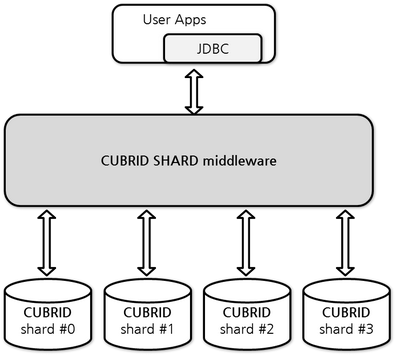

The CUBRID SHARD to be explained consists of four CUBRID SHARD DBs as shown below. The application uses the JDBC interface to process user requests.
Start after creating the shard DB and user account
As shown in the example above, after each shard DB node creates a shard DB and a user account, it starts the instance of the database.
- shard DB name: shard1
- shard DB user account: shard
- shard DB user password: shard123
sh> # Creating CUBRID SHARD DB
sh> cubrid createdb shard1
sh> # Creating CUBRID SHARD user account
sh> csql -S -u dba shard1 -c "create user shard password 'shard123'"
sh> # Starting CUBRID SHARD DB
sh> cubrid server start shard1
Changing the shard Configurations¶
shard.conf
Change shard.conf, the default configuration file, as shown below:
Warning
The port number and the shared memory identifier should be appropriately changed to the value which has not been assigned by the system.
[shard]
MASTER_SHM_ID =45501
ADMIN_LOG_FILE =log/broker/cubrid_broker.log
[%shard1]
SERVICE =ON
BROKER_PORT =45511
MIN_NUM_APPL_SERVER =1
MAX_NUM_APPL_SERVER =1
APPL_SERVER_SHM_ID =45511
LOG_DIR =log/broker/sql_log
ERROR_LOG_DIR =log/broker/error_log
SQL_LOG =ON
TIME_TO_KILL =120
SESSION_TIMEOUT =300
KEEP_CONNECTION =ON
MAX_PREPARED_STMT_COUNT =1024
SHARD_DB_NAME =shard1
SHARD_DB_USER =shard
SHARD_DB_PASSWORD =shard123
MIN_NUM_PROXY =1
MAX_NUM_PROXY =1
PROXY_LOG_DIR =log/broker/proxy_log
PROXY_LOG =ALL
MAX_CLIENT =10
METADATA_SHM_ID =45591
SHARD_CONNECTION_FILE =shard_connection.txt
SHARD_KEY_FILE =shard_key.txt
For CUBRID, the server port number is not separately configured in the shard_connection.txt but the cubrid_port_id parameter of the cubrid.conf configuration file is used. Therefore, set the cubrid_port_id parameter of the cubrid.conf identical to the server.
# TCP port id for the CUBRID programs (used by all clients).
cubrid_port_id=41523
shard_key.txt
Set shard_key.txt, the shard DB mapping configuration file, for the shard key hash value as follows:
- [%shard_key]: Sets the shard key section
- Executing the query at shard #0 when the shard key hash result created by default hash function is between 0 and 63
- Executing the query at shard #1 when the shard key hash result created by default hash function is between 64 and 127
- Executing the query at shard #2 when the shard key hash result created by default hash function is between 128 and 191
- Executing the query at the shard #3 when the shard key hash result created by default hash function is between 192 and 255
[%shard_key]
#min max shard_id
0 63 0
64 127 1
128 191 2
192 255 3
shard_connection.txt
Configure the shard_connection.txt file which is shard database configuration file, as follows:
- Real database name and connection information of shard #0
- Real database name and connection information of shard #1
- Real database name and connection information of shard #2
- Real database name and connection information of shard #3
# shard-id real-db-name connection-info
# * cubrid : hostname, hostname, ...
0 shard1 HostA
1 shard1 HostB
2 shard1 HostC
3 shard1 HostD
Starting Service and Monitoring¶
Starting CUBRID SHARD
Start the CUBRID SHARD as shown below:
sh> cubrid shard start
@ cubrid shard start
++ cubrid shard start: success
Retrieving the CUBRID SHARD Status
Retrieve the CUBRID SHARD status as follows to check the parameter and the status of the process.
sh> cubrid shard status
@ cubrid shard status
% shard1
----------------------------------------------------------------
PROXY_ID SHARD_ID CAS_ID PID QPS LQS PSIZE STATUS
----------------------------------------------------------------
1 0 1 21272 0 0 53292 IDLE
1 1 1 21273 0 0 53292 IDLE
1 2 1 21274 0 0 53292 IDLE
1 3 1 21275 0 0 53292 IDLE
sh> cubrid shard status -f
@ cubrid shard status
% shard1
----------------------------------------------------------------------------------------------------------------------------------------------------------
PROXY_ID SHARD_ID CAS_ID PID QPS LQS PSIZE STATUS LAST ACCESS TIME DB HOST LAST CONNECT TIME SQL_LOG_MODE
----------------------------------------------------------------------------------------------------------------------------------------------------------
1 0 1 21272 0 0 53292 IDLE 2013/01/31 15:00:24 shard1@HostA HostA 2013/01/31 15:00:25 -
1 1 1 21273 0 0 53292 IDLE 2013/01/31 15:00:24 shard1@HostB HostB 2013/01/31 15:00:25 -
1 2 1 21274 0 0 53292 IDLE 2013/01/31 15:00:24 shard1@HostC HostC 2013/01/31 15:00:25 -
1 3 1 21275 0 0 53292 IDLE 2013/01/31 15:00:24 shard1@HostD HostD 2013/01/31 15:00:25 -
Writing a Sample¶
Check that the CUBRID SHARD operates normally by using a simple Java program.
Writing a Sample Table
Write a temporary table for the example in all shard DBs.
sh> csql -C -u shard -p 'shard123' shard1@localhost -c "create table student (s_no int, s_name varchar, s_age int, primary key(s_no))"
Writing Code
The following example program is to enter student information from 0 to 1023 to the shard DB. Check the shard.conf modified in the previous procedure and then set the address/port information and the user information in the connection url.
import java.sql.DriverManager;
import java.sql.Connection;
import java.sql.SQLException;
import java.sql.Statement;
import java.sql.ResultSet;
import java.sql.ResultSetMetaData;
import java.sql.PreparedStatement;
import java.sql.Date;
import java.sql.*;
import cubrid.jdbc.driver.*;
public class TestInsert {
static {
try {
Class.forName("cubrid.jdbc.driver.CUBRIDDriver");
} catch (ClassNotFoundException e) {
throw new RuntimeException(e);
}
}
public static void DoTest(int thread_id) throws SQLException {
Connection connection = null;
try {
connection = DriverManager.getConnection("jdbc:cubrid:localhost:45511:shard1:::?charSet=utf8", "shard", "shard123");
connection.setAutoCommit(false);
for (int i=0; i < 1024; i++) {
String query = "INSERT INTO student VALUES (/*+ shard_key */ ?, ?, ?)";
PreparedStatement query_stmt = connection.prepareStatement(query);
String name="name_" + i;
query_stmt.setInt(1, i);
query_stmt.setString(2, name);
query_stmt.setInt(3, (i%64)+10);
query_stmt.executeUpdate();
System.out.print(".");
query_stmt.close();
connection.commit();
}
connection.close();
} catch(SQLException e) {
System.out.print("exception occurs : " + e.getErrorCode() + " - " + e.getMessage());
System.out.println();
connection.close();
}
}
/**
* @param args
*/
public static void main(String[] args) {
// TODO Auto-generated method stub
try {
DoTest(1);
} catch(Exception e){
e.printStackTrace();
}
}
}
Executing a Sample
Execute the sample program as follows:
sh> javac -cp ".:$CUBRID/jdbc/cubrid_jdbc.jar" *.java
sh> java -cp ".:$CUBRID/jdbc/cubrid_jdbc.jar" TestInsert
Checking the Result
Execute the query in each shard DB and check whether or not the partitioned information has been correctly entered.
shard #0
sh> csql -C -u shard -p 'shard123' shard1@localhost -c "select * from student order by s_no" s_no s_name s_age ================================================ 0 'name_0' 10 1 'name_1' 11 2 'name_2' 12 3 'name_3' 13 ...shard #1
sh> $ csql -C -u shard -p 'shard123' shard1@localhost -c "select * from student order by s_no" s_no s_name s_age ================================================ 64 'name_64' 10 65 'name_65' 11 66 'name_66' 12 67 'name_67' 13 ...shard #2
sh> $ csql -C -u shard -p 'shard123' shard1@localhost -c "select * from student order by s_no" s_no s_name s_age ================================================= 128 'name_128' 10 129 'name_129' 11 130 'name_130' 12 131 'name_131' 13 ...shard #3
sh> $ csql -C -u shard -p 'shard123' shard1@localhost -c "select * from student order by s_no" s_no s_name s_age ================================================ 192 'name_192' 10 193 'name_193' 11 194 'name_194' 12 195 'name_195' 13 ...
Configuration and Setup¶
Configuration¶
The CUBRID SHARD is middleware, consisting of a shard broker, shard proxy, and shard CAS process as shown below.
The shard.conf file is used for the default settings required for executing all processes in the CUBRID SHARD, and the configuration file is located in the $CUBRID/conf directory.
Default Configuration File, shard.conf¶
shard.conf is the default configuration file of the CUBRID SHARD, having a very similar format and content to cubrid_broker.conf, the configuration file of the existing CUBRID Broker/CAS.
shard.conf contains all the parameter settings as cubrid_broker.conf in an identical manner. This document describes the settings added to shard.conf. For more information on the Broker Configuration.
| Parameter Name | Type | Default Value | Dynamic Change |
|---|---|---|---|
| IGNORE_SHARD_HINT | string | OFF | |
| MIN_NUM_PROXY | int | 1 | |
| MAX_NUM_PROXY | int | 1 | |
| PROXY_LOG | string | ERROR | available |
| PROXY_LOG_DIR | string | log/broker/proxy_log | |
| PROXY_LOG_MAX_SIZE | KB | 100000 | available |
| PROXY_MAX_PREPARED_STMT_COUNT | int | 2000 | |
| PROXY_TIMEOUT | sec | 30(seconds) | |
| MAX_CLIENT | int | 10 | |
| METADATA_SHM_ID | int | ||
| SHARD_CONNECTION_FILE | string | shard_connection.txt | |
| SHARD_DB_NAME | string | available | |
| SHARD_DB_USER | string | available | |
| SHARD_DB_PASSWORD | string | available | |
| SHARD_KEY_FILE | string | shard_key.txt | |
| SHARD_KEY_MODULAR | int | 256 | |
| SHARD_KEY_LIBRARY_NAME | string | ||
| SHARD_KEY_FUNCTION_NAME | string |
SHARD_DB_NAME : The name of the shard DB, used to verify the request for connection from an application.
SHARD_DB_USER : The name of the backend shard DB user, used to connect to the backend DBMS for the shard CAS process as well as to verify the request for connection from an application. User names on all shard DBs should be identical.
SHARD_DB_PASSWORD : The user password of the backend shard DB, used to connect to the backend DBMS for the shard CAS process as well as to verify the request for connection from an application. Passwords of all shard DBs should be identical.
The environment variable can be used when you don't want to expose SHARD_DB_PASSWORD to shard.conf. The format of this environment variable name is <shard_broker_name>_SHARD_DB_PASSWORD, and <shard_broker_name> always should be changed as upper cases. For example, if the name of shard broker is shard1, the name of an environment variable which configures the shard DB password will be SHARD1_SHARD_DB_PASSWORD. But, if the SHARD feature is restarted by "cubrid broker restart" command, the environment variable of SHARD_DB_PASSWORD or the value of SHARD_DB_PASSWORD in shard.conf must be configured.
export SHARD1_SHARD_DB_PASSWORD=shard123
MIN_NUM_PROXY : The minimum number of shard proxy processes.
MAX_NUM_PROXY : The maximum number of shard proxy processes.
PROXY_LOG_DIR : The directory path where the shard proxy logs will be saved.
PROXY_LOG : The shard proxy log level. It can be set to one of the following values:
- ALL : All logs
- ON : All logs
- SHARD : Logs for selecting and processing shard DBs.
- SCHEDULE : Logs for scheduling tasks.
- NOTICE : Logs for key notices.
- TIMEOUT : Logs for timeouts.
- ERROR : Logs for errors.
- NONE : No logs recorded.
- OFF : No logs recorded.
PROXY_LOG_MAX_SIZE : The maximum size of the shard proxy log file. You can set a unit as B, K, M or G, which stands for bytes, kilobytes(KB) or megabytes(MB) or gigabytes(GB) respectively. If you omit the unit, K will be applied. The maximum value is 1,000,000(KB).
- PROXY_MAX_PREPARED_STMT_COUNT : The maximum size of statement pool managed by shard proxy
- PROXY_TIMEOUT : The maximum waiting time by which the statement is prepared or shard(cas) is available to use. The default value is 30(seconds). If this value is 0, the waiting time is decided by the value of the query_timeout system parameter; if the value of query_timeout is also 0, the waiting time is infinite. IF the value PROXY_TIMEOUT is larger than 0, the maximum value between query_timeout and PROXY_TIMEOUT decides the waiting time. You can set a unit as ms, s, min or h, which stands for milliseconds, seconds, minutes or hours respectively. If you omit the unit, s will be applied.
- MAX_CLIENT : The number of applications that can be concurrently connected by using the shard proxy.
- METADATA_SHM_ID : Shared memory identifier of the shard metadata storage.
- SHARD_CONNECTION_FILE : The path of the shard connection configuration file. The shard connection configuration file should be located in $CUBRID/conf. For more information, see the shard connection configuration file.
- SHARD_KEY_FILE : The path of the shard key configuration file. The shard key configuration file should be located in $CUBRID/conf. For more information, see the shard key configuration file.
- SHARD_KEY_MODULAR : The parameter to specify the range of results of the default shard key hash function. The result of the function is shard_key(integer) % SHARD_KEY_MODULAR. The minimum value is 1, and the maximum value is 256. For related issues, see shard key configuration file and Setting User-Defined Hash Function.
- SHARD_KEY_LIBRARY_NAME : Specify the library path loadable at runtime to specify the user hash function for the shard key. If the SHARD_KEY_LIBRARY_NAME parameter is set, the SHARD_KEY_FUNCTION_NAME parameter should also be set. For more information, see Setting User-Defined Hash Function.
- SHARD_KEY_FUNCTION_NAME : The parameter to specify the name of the user hash function for shard key. For more information, see Setting User-Defined Hash Function.
- IGNORE_SHARD_HINT : When this value is ON, the hint provided to connect to a specific shard is ignored and the database to connect is selected based on the defined rule. The default value is OFF. It can be used to balance the read load while all databases are copied with the same data. For example, to give the load of an application to only one node among several replication nodes, the shard proxy automatically determines the node (database) with one connection to a specific shard.
To configure SHARD proxy, you should specify MAX_CLIENT, MAX_NUM_APPL_SERVER and MAX_NUM_PROXY.
- In Linux, the number of file descriptors(fd) per SHARD proxy process is limited as follows.
- "((MAX_CLIENT + MAX_NUM_APPL_SERVER) / MAX_NUM_PROXY) + 256" <= 10000
The following are detail descriptions on the above formula.
- MAX_CLIENT is the maximum number of applications which access the SHARD system.
- MAX_NUM_APPL_SERVER is the maximum number of all SHARD CASes which can access SHARD proxy system.
- MAX_NUM_PROXY is the maximum number of SHARD proxy processes which can use on the SHARD system.
- "MAX_CLIENT / MAX_NUM_PROXY" is the maximum number of applications which can access per SHARD proxy process.
- "MAX_NUM_APPL_SERVER / MAX_NUM_PROXY" is the maximum number of CASes which can access per SHARD proxy process.
- 256 is the number of file descriptors which are used internally per process on Linux.
As an example of configuring SHARD parameters in Linux system, if you specify the maximum concurrent access number of applications (MAX_CLIENT) as 5000, the maximum number of CASes(MAX_NUM_APPL_SERVER) as 200 and the maximum number of SHARD proxy process(MAX_NUM_PROXY) as 1, then file descriptors per SHARD proxy process becomes (5000 + 200)/1 + 256 = 5456, and it is less than 10000; it is possible configuration.
Regarding above, the following is the connection-relationship between each process. "SHARD proxy" intermediates a connection between "app. client" and "SHARD CAS".
In the below, [] indicates a process, and -> indicates the requesting direction.
[app. client] --(initial access request)-----------> [SHARD broker] (select SHARD proxy)
<--(announce SHARD proxy to access)---
-------------------------------------> [SHARD proxy] --(select SHARD CAS)--> [SHARD CAS] ---> [DB server]
<------------------------------------- <---------------------- <---
<--(now use the same SHARD proxy)----> <---------------------> <-->
SHARD broker is used only once when the application client requires the initial access, and then CUBRID keep connections among "[app. client] - [SHARD proxy] - [SHARD CAS] - [DB Server]".
Also, SHARD CAS keeps connection with DB server after DB connection is completed.
Setting Shard Metadata¶
In addition to shard.conf, the CUBRID SHARD has a configuration file for shard key and the shard connection configuration file for connection with the shard DB.
To connect to the backend shard DB, the CUBRID SHARD loads the shard connection configuration file specified in the SHARD_CONNECTION_FILE parameter of shard.conf, the default configuration file.
If SHARD_CONNECTION_FILE is not specified in shard.conf, it loads the shard_connection.txt file by default.
Format
The basic example and format of a shard connection configuration file are as follows:
# # shard-id real-db-name connection-info # * cubrid : hostname, hostname, ... # * mysql : hostname:port # CUBRID 0 shard1 HostA 1 shard1 HostB 2 shard1 HostC 3 shard1 HostDNote
As shown in the general CUBRID settings, the content after # is converted to comment.
CUBRID
When the backend shard DB is CUBRID, the format of the connection configuration file is as follows:
# CUBRID # shard-id real-db-name connection-info # shard identifier( >0 ) The real name of backend shard DB host name 0 shard_db_1 host1 1 shard_db_2 host2 2 shard_db_3 host3 3 shard_db_4 host4For CUBRID, a separate backend shard DB port number is not specified in the above configuration file, but the CUBRID_PORT_ID parameter in the cubrid.conf file (the default configuration file of CUBRID) is used. The cubrid.conf file is by default located in the $CUBRID/conf.
$ vi cubrid.conf ... # TCP port id for the CUBRID programs (used by all clients). cubrid_port_id=41523
The CUBRID SHARD loads the shard key configuration file specified in the SHARD_KEY_FILE parameter of shard.conf, the default configuration file, to determine which backend shard DB should process the user requests.
If SHARD_KEY_FILE is not specified in shard.conf, it loads the shard_key.txt file by default.
Format
The example and format of a shard key configuration file are as follows:
[%student_no] #min max shard_id 0 31 0 32 63 1 64 95 2 96 127 3 128 159 0 160 191 1 192 223 2 224 255 3
- [%shard_key_name]: Specifies the name of the shard key.
- min: The minimum value range of the shard key hash results.
- max: The maximum range of the shard key hash results.
- shard_id: The shard identifier
Note
As shown in the general CUBRID settings, the content after # is converted to comment.
Warning
- min of the shard key should always start from 0.
- max should be up to 255.
- No empty value between min and max is allowed.
- The default hash function should not exceed the value of the SHARD_KEY_MODULAR parameter(min. 1, max 256).
- The result of shard key hashing should be within a range from 0 to (SHARD_KEY_MODULAR -1).
Setting User-Defined Hash Function¶
To select a shard that will perform queries, the CUBRID SHARD uses the results of hashing the shard key and the metadata configuration information. For this, users can use the default hash function or define a hash function.
Default Hash Function
When the SHARD_KEY_LIBRARY_NAME and SHARD_KEY_FUNCTION_NAME parameters of shard.conf are not set, the shard key is hashed by using the default hash function. The default hash function is as follows:
When the shard_key is an integer
Default hash function (shard_key) = shard_key mod SHARD_KEY_MODULAR parameter (default value: 256)
When the shard_key is a string
Default hash function (shard_key) = shard_key[0] mod SHARD_KEY_MODULAR parameter (default value: 256)
Setting User-Defined Hash Function
The CUBRID SHARD can hash the shard key by using the user-defined hash function, in addition to the default hash function.
Implementing and Creating a Library
The user-defined hash function must be implemented as a .so library loadable at runtime. Its prototype is as shown below:
94 /* 95 return value : 96 success - shard key id(>0) 97 fail - invalid argument(ERROR_ON_ARGUMENT), shard key id make fail(ERROR_ON_MAKE_SHARD_KEY) 98 type : shard key value type 99 val : shard key value 100 */ 101 typedef int (*FN_GET_SHARD_KEY) (const char *shard_key, T_SHARD_U_TYPE type, 102 const void *val, int val_size);
- The return value of the hash function should be within the range of the hash results of the shard_key.txt configuration file.
- To build a library, the $CUBRID/include/shard_key.h file of the CUBRID source must be included. The file lets you know the details such as error code that can be returned.
Changing the shard.conf Configuration File
To apply a user-defined hash function, the SHARD_KEY_LIBRARY_NAME and SHARD_KEY_FUNCTION_NAME parameters of shard.conf should be set according to the implementation.
- SHARD_KEY_LIBRARY_NAME : The (absolute) path of the user-defined hash library.
- SHARD_KEY_FUNCTION_NAME : The name of the user-defined hash function.
Example
The following example shows how to use a user-defined hash. First, check the shard_key.txt configuration file.
[%student_no] #min max shard_id 0 31 0 32 63 1 64 95 2 96 127 3 128 159 0 160 191 1 192 223 2 224 255 3To set the user-defined hash function, implement a .so shared library that is loadable at runtime. The result of the hash function should be within the range of hash function results defined in the shard_key.txt configuration file. The following example shows a simple implementation.
- When the shard_key is an integer
- Select shard #0 when the shard_key is an odd number
- Select shard #1 when the shard_key is an even number
- When the shard_key is a string
- Select shard #0 when the shard_key string starts with 'a' or 'A'.
- Select shard #1 when the shard_key string starts with 'b' or 'B'.
- Select shard #2 when the shard_key string starts with 'c' or 'C'.
- Select shard #3 when the shard_key string starts with 'd' or 'D'.
// <shard_key_udf.c> 1 #include <string.h> 2 #include <stdio.h> 3 #include <unistd.h> 4 #include "shard_key.h" 5 6 int 7 fn_shard_key_udf (const char *shard_key, T_SHARD_U_TYPE type, 8 const void *value, int value_len) 9 { 10 unsigned int ival; 11 unsigned char c; 12 13 if (value == NULL) 14 { 15 return ERROR_ON_ARGUMENT; 16 } 17 18 switch (type) 19 { 20 case SHARD_U_TYPE_INT: 21 ival = (unsigned int) (*(unsigned int *) value); 22 if (ival % 2) 23 { 24 return 32; // shard #1 25 } 26 else 27 { 28 return 0; // shard #0 29 } 30 break; 31 32 case SHARD_U_TYPE_STRING: 33 c = (unsigned char) (((unsigned char *) value)[0]); 34 switch (c) 36 case 'a': 37 case 'A': 38 return 0; // shard #0 39 case 'b': 40 case 'B': 41 return 32; // shard #1 42 case 'c': 43 case 'C': 44 return 64; // shard #2 45 case 'd': 46 case 'D': 47 return 96; // shard #3 48 default: 49 return ERROR_ON_ARGUMENT; 50 } 51 52 break; 53 54 default: 55 return ERROR_ON_ARGUMENT; 56 } 57 return ERROR_ON_MAKE_SHARD_KEY; 58 }Build the user-defined function as a shared library. The following example is Makefile for building a hash function.
# Makefile CC = gcc LIBS = $(LIB_FLAG) CFLAGS = $(CFLAGS_COMMON) -fPIC -I$(CUBRID)/include -I$(CUBRID_SRC)/src/broker SHARD_CC = gcc -g -shared -Wl,-soname,shard_key_udf.so SHARD_KEY_UDF_OBJS = shard_key_udf.o all:$(SHARD_KEY_UDF_OBJS) $(SHARD_CC) $(CFLAGS) -o shard_key_udf.so $(SHARD_KEY_UDF_OBJS) $(LIBS) clean: -rm -f *.o core shard_key_udf.soTo include the user-defined hash function, modify the SHARD_KEY_LIBRARY_NAME and SHARD_KEY_FUNCTION_NAME parameters as shown in the above implementation.
[%student_no] SHARD_KEY_LIBRARY_NAME =$CUBRID/conf/shard_key_udf.so SHARD_KEY_FUNCTION_NAME =fn_shard_key_udf
Running and Monitoring¶
By using the CUBRID SHARD utility, CUBRID SHARD can be started or stopped and various status information can be retrieved.
Starting CUBRID SHARD¶
To start the CUBRID SHARD, enter the following:
% cubrid shard start
@ cubrid shard start
++ cubrid shard start: success
If the CUBRID SHARD has already been started, the following message will appear:
% cubrid shard start
@ cubrid shard start
++ cubrid shard is running.
While executing cubrid shard start, the information of the CUBRID SHARD configuration file (shard.conf) are read to start all components of the configuration. All metadata DBs and shard DBs should be started before starting the CUBRID SHARD because it accesses them.
CUBRID SHARD cannot be started even if one thing like DB connection is failed among all configured items; you can find the cause of failure through the SHARD error logs written on the $CUBRID/log/broker/ directory.
Stopping CUBRID SHARD¶
Enter the following to stop the CUBRID SHARD.
% cubrid shard stop
@ cubrid shard stop
++ cubrid shard stop: success
If the CUBRID SHARD has already been stopped, the following message will appear:
$ cubrid shard stop
@ cubrid shard stop
++ cubrid shard is not running.
Registering SHARD to cubrid service¶
If you register shard to CUBRID service, it is comfortable that you can start/stop all SHARD related processes by using cubrid service utility or see the SHARD status. You can register cubrid services to the service parameter in the [service] section of the cubrid.conf file. If you include shard to this parameter, you can start/stop all service processes and SHARD related processes by using cubrid service start / stop command.
The following is an example of configuring a cubrid.conf file.
# cubrid.conf
...
[service]
...
service=server,broker,shard
...
Dynamic change of CUBRID SHARD parameters¶
You can configure the parameters related to running CUBRID SHARD in the environment configuration file (shard.conf). Additionally, you can some CUBRID SHARD parameters while it is running by using the shard_broker_changer utility. For details about configuration of CUBRID SHARD parameters and dynamically changeable parameters see Configuration and Setup.
Syntax
The shard_broker_changer syntax used to change parameter while CUBRID SHARD is running is as follows: Enter the name of CUBRID SHARD running in shard-name and enter dynamically changeable parameters in parameter. value must be specified based on the parameter to be modified. You can apply changes in a specific CUBRID SHARD by specifying an identifier of CUBRID SHARD. proxy-number represents PROXY-ID displayed in the cubrid shard status command.
shard_broker_changer shard-name [proxy-number] parameter value
Example
Even though SQL logs are recorded in CUBRID SHARD which is running, you need to enter as follows to configure the SQL_LOG parameter to ON so that SQL logs are recorded in CUBRID SHARD running. Such dynamic parameter change is effective only while CUBRID SHARD is running.
% shard_broker_changer shard1 sql_log on
OK
Checking CUBRID SHARD configuration information¶
cubrid shard info dumps the currently "working" shard parameters' configuration information(cubrid_shard.conf). Shard parameters' information can be dynamically changed by shard_broker_changer command; with cubrid shard info command, you can see the configuration information of the working shard.
% cubrid shard info
As a reference, to see the configuration information of the currently "working" system(cubrid.conf), use cubrid paramdump database_name command. By SET SYSTEM PARAMETERS syntax, the configuration information of the system parameters can be changed dynamically; with cubrid broker info command, you can see the configuration information of the system parameters.
Checking CUBRID SHARD ID¶
cubrid shard getid prints SHARD ID to know in what DB a specific key is included.
cubrid shard getid -b <broker-name> [-f] shard-key
- -b <broker-name>: shard broker name
- -f: prints detail information
- shard-key : shard key
The following shows how to print the SHARD ID for the key 1 within the shard1 shard broker.
$ cubrid shard getid -b shard1 1
@ cubrid shard getid
% shard1
SHARD_ID : 0, SHARD_KEY: 1
The following shows how to print the detail information using the -f option.
$ cubrid shard getid -b shard1 -f 1
@ cubrid shard getid
% shard1
SHARD_ID : 0, SHARD_KEY : 1, KEY_COLUMN : student_no
MODULAR : 256, LIBRARY_NAME : NOT DEFINED, FUNCTION_NAME : NOT DEFINED
RANGE STATISTICS : student_no
MIN ~ MAX : SHARD
---------------------------
0 ~ 31 : 0
SHARD CONNECTION :
SHARD_ID DB NAME CONNECTION_INFO
---------------------------------------------------
0 shard1 192.168.10.1
Checking CUBRID SHARD status¶
cubrid shard status provides a variety of options to check the status information of each shard broker, shard proxy, and shard cas. In addition, it is possible to check the metadata information and the information on the client who has accessed the shard proxy.
cubrid shard status [options] [<expr>]
When <*expr*> is given, the status monitoring is performed for the corresponding CUBRID SHARD. When it is omitted, status monitoring is performed for all CUBRID SHARDs registered to the CUBRID SHARD configuration file (**shard.conf**).
The following shows [options] used in cubrid shard status.
-
-b¶ Displays the status information for the CUBRID broker excluding the information on the CUBRID proxy or the CUBRID CAS.
-
-c¶ Displays the information on the client which has accessed the CUBRID proxy.
-
-m¶ Displays the metadata information.
-
-t¶ Displays in tty mode. The output content can be redirected to a file.
-
-f¶ Displays more detailed information on the CUBRID SHARD.
-
-lSECOND¶ -l option is used together only with -f option. It is used to specify the output period(Unit: second) about the accumulated number of shard CASes which are in a client Waiting/Busy state. If -l SECOND option is omitted, the default is one second.
-
-sSECOND¶ Periodically displays the status information for the CUBRID SHARD at a specified time. Returns to the command prompt if q is entered.
Example
If no options or parameters are given to check the status of all CUBRID SHARDs, the following will be displayed as a result:
$ cubrid shard status
@ cubrid shard status
% test_shard - shard_cas [2576,45000] /home/CUBRID/log/broker/test_shard.err
JOB QUEUE:0, AUTO_ADD_APPL_SERVER:ON, SQL_LOG_MODE:ALL:100000
LONG_TRANSACTION_TIME:60.00, LONG_QUERY_TIME:60.00, SESSION_TIMEOUT:10
KEEP_CONNECTION:AUTO, ACCESS_MODE:RW
----------------------------------------------------------------
PROXY_ID SHARD_ID CAS_ID PID QPS LQS PSIZE STATUS
----------------------------------------------------------------
1 1 1 2580 100 3 55968 IDLE
1 2 1 2581 200 4 55968 IDLE
- % test_shard: The proxy name
- shard_cas: The application server format
- [2576, 45000]: The proxy process ID and the proxy access port number
- /home/CUBRID/log/broker/test_shard.err: The error log file of test_shard
- JOB QUEUE: The number of standing by jobs in the job queue
- SQL_LOG_MODE: The SQL_LOG parameter value of the shard.conf file has been set to ALL in order to log in all SQL.
- SLOW_LOG: The SLOW_LOG parameter value of the shard.conf file has been set to ON in order to log the query where any long-duration execution query or any error has occurred to the SLOW SQL LOG file.
- LONG_TRANSACTION_TIME: The execution time of a transaction to be considered as a long-duration transaction. When the execution time of a transaction exceeds 60 seconds, it is considered as a long-duration transaction.
- LONG_QUERY_TIME: The execution time of a query to be considered as a long-duration query. When the execution time of a query exceeds 60 seconds, it is considered as a long-duration query.
- SESSION_TIMEOUT: The timeout value to terminate a CAS session that has made no requests without any commit or rollback after starting the transaction. When this time is expired in this status, the connection between the application client and the application server (CAS) is terminated. The SESSION_TIMEOUT parameter value of the shard.conf is 300 (secs).
- ACCESS_MODE: The shard broker operation mode. The RW mode allows modification of the database as well as retrieval.
- PROXY_ID: The serial number of a proxy which has been sequentially given in the shard broker
- SHARD_ID: The serial number of a shard DB set in the proxy
- CAS_ID: The serial number of an application server (CAS) which accesses the shard DB
- PID: The ID of an application server (CAS) process which accesses the shard DB
- QPS: The number of queries processed per second
- LQS: The number of long-duration queries processed per second
- PSIZE: The size of the application server process
- STATUS: The current status of the application server, such as BUSY/IDLE/CLIENT_WAIT/CLOSE_WAIT/CON_WAIT.
To check the status of the shard broker, enter the following:
$ cubrid shard status -b
@ cubrid shard status
NAME PID PORT Active-P Active-C REQ TPS QPS K-QPS NK-QPS LONG-T LONG-Q ERR-Q
==========================================================================================================
* test_shard 3548 45000 1 2 0 0 0 0 0 0/60.0 0/60.0 0
- NAME: The proxy name
- PID: The process ID of the proxy
- PORT: The proxy port number
- Active-P: The number of proxy
- Active-C: The number of application servers (CASes)
- REQ: The number of client requests processed by the proxy
- TPS: The number of transactions processed per second (calculated only when the option is -b -s <sec>)
- QPS: The number of queries processed per second (calculated only when the option is -b -s <sec>)
- K-QPS: QPS for the queries which include a shard key
- NK-QPS: QPS for the queries which do not include a shard key
- LONG-T: The number of transactions that exceed the LONG_TRANSACTION_TIME time / LONG_TRANSACTION_TIME parameter value
- LONG-Q: The number of queries that exceeds the LONG_QUERY_TIME time / LONG_QUERY_TIME parameter value
- ERR-Q: The number of queries where errors have occurred
To check details on the status of the shard broker, enter as follows:
$ cubrid shard status -b -f
@ cubrid shard status
NAME PID PSIZE PORT Active-P Active-C STMT-Q SHARD-Q TPS QPS K-QPS (H-KEY H_ID H-ALL) NK-QPS LONG-T LONG-Q ERR-Q UNIQUE-ERR-Q CANCELED ACCESS_MODE SQL_LOG #CONNECT
=============================================================================================================================================================================================================================
* test_shard 17826 112676 25511 1 32 0 0 1549 1552 1552 1552 0 0 0 0/60.0 0/60.0 4 0 0 RW ALL 0
- NAME: The proxy name
- PID: The process ID of the proxy
- PSIZE: The process size of the proxy
- PORT: The proxy port number
- Active-P: The number of proxies
- Active-C: The number of application servers (CASes)
- STMT-Q: The number of client requests; the client is waiting to run prepare at the time to run shard status
- SHARD-Q: The number of client requests; the client is waiting the enable CAS at the time to run shard status
- TPS: The number of transactions processed per second (calculated only when the option is -b -s <sec>)
- QPS: The number of queries processed per second (calculated only when the option is -b -s <sec>)
- K-QPS: QPS for the queries which include a shard key
- H-KEY: QPS for the queries which include the shard_key hint
- H-ID: QPS for the queries which include the shard_id hint
- H-ALL: QPS for the queries which include the shard_all hint
- NK-QPS: QPS for the queries which do not include a shard key
- LONG-T: The number of transactions that exceeds the LONG_TRANSACTION_TIME time / LONG_TRANSACTION_TIME parameter value
- LONG-Q: The number of queries that exceeds the LONG_QUERY_TIME time / LONG_QUERY_TIME parameter value
- ERR-Q: The number of queries where an error has occurred
- UNIQUE-ERR-Q: The number of queries where an unique violation error has occurred
- CANCELED: The number of queries which have been canceled due to user interruption after the shard broker had been started (the number accumulations for N seconds in case of using with the -l N option)
- ACCESS_MODE: The shard broker operation mode. The RW mode allows modification of the database as well as retrieval
- SQL_LOG: The SQL_LOG parameter value of the shard.conf file is ALL in order to leave the SQL log
- #CONNECT: The count that the application client have accessed shard CAS after starting shard broker
STMT-Q is an abbreviation of "Statement Waiting Queue". If you try to run "prepare" about the same query at the same time, "prepare" execution requests of the other clients except the firstly executed client are waiting for a while on STMT-Q to run because let the other clients use the meta information of the query which the firstly executed client had run. If the value of STMT-Q is larger, it means that "prepare" is rerun frequently; statement pooling is used inefficiently. Therefore, you can consider to enlarge the value of PROXY_MAX_PREPARED_STMT_COUNT.
SHARD-Q is an abbreviation of "Shard Waiting Queue". If SHARD proxy process requested to run the query but there was no SHARD CAS process to run this, then this request is waiting on SHARD-Q for a while. If the value of SHARD-Q is larger, it means that waiting cases are more. Therefore, you can consider to enlarge the value of MAX_NUM_APPL_SERVER.
By using the -s option, enter the monitoring interval of the shard broker which includes test_shard, and then enter the following to monitor the shard broker status periodically. If test_shard is not entered as a parameter,the status monitoring is periodically made for all shard brokers. If q is entered, the monitoring screen returns to the command prompt.
$ cubrid shard status -b test_shard -s 1 -t
@ cubrid shard status
NAME PID PORT Active-P Active-C STMT-Q SHARD-Q TPS QPS SELECT INSERT UPDATE DELETE OTHERS K-QPS NK-QPS LONG-T LONG-Q ERR-Q UNIQUE-ERR-Q #CONNECT
=====================================================================================================================================================================================================
* test_shard 17826 25511 1 32 0 0 42 43 0 43 0 0 0 43 0 0/60.0 0/60.0 1 0 0
Output TPS and QPS information to a file by using the -t option. To stop the output as a file, press <Ctrl+C> to stop the program.
% cubrid shard status -b -s 1 -t > log_file
Output the metadata information by using the -m option. For details on the parameter of shard.conf, see Default Configuration File, shard.conf.
$ cubrid shard status -m
@ cubrid shard status
% test_shard [299009]
MODULAR : 256, LIBRARY_NAME : NOT DEFINED, FUNCTION_NAME : NOT DEFINED
SHARD STATISTICS
ID NUM-KEY-Q NUM-ID-Q NUM-NO-HINT-Q SUM
------------------------------------------------------------
0 1281 0 0 1281
1 1281 0 0 1281
2 1281 0 0 1281
3 1281 0 0 1281
- test_shard: The proxy name
- [299009]: The decimal value of the METADATA_SHM_ID parameter of shard.conf
- MODULAR: The SHARD_KEY_MODULR parameter value of shard.conf
- LIBRARY_NAME: The SHARD_KEY_LIBRARY_NAME parameter value of shard.conf
- FUNCTION_NAME: The SHARD_KEY_FUNCTION_NAME parameter value of shard.conf
- SHARD STATISTICS: The shard ID query information
- ID: The shard DB serial number (shard ID)
- NUM-KEY-Q: The number of query requests which include the shard key
- NUM-ID-Q: The number of query requests which include the shard ID
- NUM-NO-HINT-Q: The number of requests handled by load balancing without hint when IGNORE_SHARD_HINT is configured
- SUM: NUM-KEY-Q + NUM-ID-Q
Use the -m -f option to display more detailed metadata information. For details on the parameter of shard.conf, see Default Configuration File, shard.conf.
$ cubrid shard status -m -f
@ cubrid shard status
% test_shard [299009]
MODULAR : 256, LIBRARY_NAME : NOT DEFINED, FUNCTION_NAME : NOT DEFINED
SHARD : 0 [HostA] [shard1], 1 [HostB] [shard1], 2 [HostC] [shard1], 3 [HostD] [shard1]
SHARD STATISTICS
ID NUM-KEY-Q NUM-ID-Q NUM-NO-HINT-Q SUM
------------------------------------------------------------
0 2309 0 0 2309
1 2309 0 0 2309
2 2309 0 0 2309
3 2309 0 0 2309
RANGE STATISTICS : user_no
MIN ~ MAX : SHARD NUM-Q
------------------------------------
0 ~ 31 : 0 1157
32 ~ 63 : 1 1157
64 ~ 95 : 2 1157
96 ~ 127 : 3 1157
128 ~ 159 : 0 1152
160 ~ 191 : 1 1152
192 ~ 223 : 2 1152
224 ~ 255 : 3 1152
DB Alias : shard1 [USER : shard, PASSWD : shard123]
- test_shard: The proxy name
- [299009]: The decimal value of the METADATA_SHM_ID parameter of shard.conf
- MODULAR: The SHARD_KEY_MODULR parameter value of shard.conf
- LIBRARY_NAME: The SHARD_KEY_LIBRARY_NAME parameter value of shard.conf
- FUNCTION_NAME: The SHARD_KEY_FUNCTION_NAME parameter value of shard.conf
- SHARD: The shard DB information in the proxy
- 0: The shard DB serial number (shard ID)
- [HostA]: The shard access information
- [shard1]: The actual DB name
- ID: The shard DB serial number (shard ID)
- NUM-KEY-Q: The number of query requests which include a shard key
- NUM-ID-Q: The number of query requests which include a shard ID
- SUM: NUM-KEY-Q + NUM-ID-Q
- RANGE STATISTICS: The shard key query information
- user_no: The shard key name
- MIN: The minimum range of a shard key
- MAX: The maximum range of a shard key
- SHARD: The shard DB serial number (shard ID)
- NUM-Q: The number of query requests which include the shard key
Displays the information on the client that has accessed the shard proxy by using the -c option.
$ cubrid shard status -c
@ cubrid shard status
% test_shard(0), MAX-CLIENT : 10000
------------------------------------------------------------------------------------------------
CLIENT-ID CLIENT-IP CONN-TIME LAST-REQ-TIME LAST-RES-TIME
------------------------------------------------------------------------------------------------
0 10.24.18.68 2011/12/15 16:33:31 2011/12/15 16:33:31 2011/12/15 16:33:31
- CLIENT-ID: The client serial number sequentially given in the proxy
- CLIENT-IP: The client IP address
- CONN-TIME: The time that the proxy has been accessed
- LAST-REQ-TIME: The time at which the last request had been made to the proxy
- LAST-RES-TIME: The time at which the last response has been received from the proxy
Limit shard proxy access¶
To limit the applications to access shard proxy, ACCESS_CONTROL in cubrid_shard.conf should be set to ON and the name of a file of which the list of users, databases and IPs which allow permission to access are written should be defined in ACCESS_CONTROL_FILE parameter. The default value of ACCESS_CONTROL parameter is OFF.
The ACCESS_CONTROL and ACCESS_CONTROL_FILE parameters should be written under [shard] which are located in common parameters.
The format of ACCESS_CONTROL_FILE is as follows:
[%<shard_name>]
<db_name>:<db_user>:<ip_list_file>
...
- <shard_name>: Shard proxy name. It is one of shared proxies specified by cubrid_broker.conf.
- <db_name>: Database name. If it is specified as *, every database can be permitted.
- <db_user>: The user ID of the database. If it is specified as *, the user ID of every database is permitted.
- <ip_list_file>: The file name where the list of accessable IPs is stored. You can use a comma to separate each file such as ip_list_file1, ip_list_file2, ??
You can additionally specify [%<broker_name>] and <db_name>:<db_user>:<ip_list_file> for each shard proxy and separate line can be added for the same <db_name> and <db_user>.
The format of writing ip_list_file is as follows:
<ip_addr>
...
- <ip_addr>: The name of IP of which access is permitted. If * is enterd in back part, it means every IP is permitted.
While the value of ACCESS_CONTROL is ON and ACCESS_CONTROL_FILE is not specified, shard proxy allows access request from localhost.
If the analysis of ACCESS_CONTROL_FILE and ip_list_file fails when starting a shard proxy, shard proxy will not be run.
# cubrid_broker.conf
[broker]
MASTER_SHM_ID =30001
ADMIN_LOG_FILE =log/broker/cubrid_broker.log
ACCESS_CONTROL =ON
ACCESS_CONTROL_FILE =/home1/cubrid/access_file.txt
[%QUERY_EDITOR]
SERVICE =ON
BROKER_PORT =30000
......
The following is an example of ACCESS_CONTROL_FILE. * means everything; it can be used when you specifying the database name, database user ID, and the list of IP list file.
[%QUERY_EDITOR]
dbname1:dbuser1:READIP.txt
dbname1:dbuser2:WRITEIP1.txt,WRITEIP2.txt
*:dba:READIP.txt
*:dba:WRITEIP1.txt
*:dba:WRITEIP2.txt
[%SHARD2]
dbname:dbuser:iplist2.txt
[%SHARD3]
dbname:dbuser:iplist2.txt
[%SHARD4]
dbname:dbuser:iplist2.txt
The shard proxy specified above is QUERY_EDITOR, SHARD2, and SHARD3, SHARD4. The QUERY_EDITOR shard proxy allows only access of the same applications.
- A user logging in with dbuser1 to dbname1 accesses IP registered in READIP.txt
- A user logging in with dbuser1 to dbname1 accesses IP registered in WRITEIP1.txt or WRITEIP2.txt
- A user logging in with DBA to every database accesses IP registered in READIP.txt, WRITEIP1.txt, or WRITEIP2.txt
The following shows how to configure IPs accessible in ip_list_file.
192.168.1.25
192.168.*
10.*
*
The IPs specified above are as follows:
- The configuration of the first line allows 192.168.1.25.
- The configuration of the second line allows every IP starting with 192.168.
- The configuration of the third line allows every IP starting with 10.
- The configuration of the fourth line allows every IP.
For shard proxy which has been running, you can re-apply configuration by using the following command or check the current status.
To apply changes to server after database, database user ID, and IP allowed in shard proxy is configured, use the following command.
cubrid shard acl reload [<SP_NAME>]
- SP_NAME : shard proxy name. If this value is specified, changes are applied to specific shard proxy; if it is omitted, changes are applied to every shard proxy.
To output IP configuration of which database, database user ID, and IP allowed in shard proxy to screen, use the following command.
cubrid shard acl status [<SP_NAME>]
- SP_NAME : shard proxy name. If this value is specified, changes are applied to specific shard proxy; if it is omitted, changes are applied to every shard proxy.
Note
For details, see Limiting Database Server Access.
Managing specific shard¶
Enter the following to run shard1.
$ cubrid shard on shard1
If shard1 is not configured in shared memory, the following message will output.
% cubrid shard on shard1
Cannot open shared memory
To exit shard1, enter the following.
$ cubrid shard off shard1
To restart shard1, enter the following.
$ cubrhd shard restart shard1
The shard proxy reset feature disconnects exiting connection and makes new connection when shard proxy is connected unwanted database server due to failover in HA. If SHARD_DB_NAME, SHARD_DB_USER, SHARD_DB_PASSWORD is changed dynamically, it will try to connect with the changed value.
% cubrid shard reset shard1
CUBRID SHARD Log¶
There are four types of logs that relate to starting the shard: access, proxy, error and SQL logs. Changing the directory of each log is available through LOG_DIR, ERROR_LOG_DIR, and PROXY_LOG_DIR parameters of the shard configuration file (shard.conf).
SHARD PROXY Log¶
Access Log
- Parameter: ACCESS_LOG
- Description: Log the client access (the existing broker logs at CAS).
- Default directory: $CUBRID/log/broker/
- File name: <broker_name>_<proxy_index>.access
- Log type: All strings, except the access log and the cas_index from CAS, are identical
10.24.18.67 - - 1340243427.828 1340243427.828 2012/06/21 10:50:27 ~ 2012/06/21 10:50:27 23377 - -1 shard1 shard1
10.24.18.67 - - 1340243427.858 1340243427.858 2012/06/21 10:50:27 ~ 2012/06/21 10:50:27 23377 - -1 shard1 shard1
10.24.18.67 - - 1340243446.791 1340243446.791 2012/06/21 10:50:46 ~ 2012/06/21 10:50:46 23377 - -1 shard1 shard1
10.24.18.67 - - 1340243446.821 1340243446.821 2012/06/21 10:50:46 ~ 2012/06/21 10:50:46 23377 - -1 shard1 shard1
Proxy Log
- Parameter: PROXY_LOG_DIR
- Description: Log the behavior of the inner proxy.
- Default directory: $CUBRID/log/broker/proxy_log
- File name: <broker_name>_<proxy_index>.log
06/21 10:50:46.822 [SRD] ../../src/broker/shard_proxy_io.c(1045): New socket io created. (fd:50).
06/21 10:50:46.822 [SRD] ../../src/broker/shard_proxy_io.c(2517): New client connected. client(client_id:3, is_busy:Y, fd:50, ctx_cid:3, ctx_uid:4).
06/21 10:50:46.825 [DBG] ../../src/broker/shard_proxy_io.c(3298): Shard status. (num_cas_in_tran=1, shard_id=2).
06/21 10:50:46.827 [DBG] ../../src/broker/shard_proxy_io.c(3385): Shard status. (num_cas_in_tran=0, shard_id=2).
Proxy Log Level
- Parameter: PROXY_LOG
- Proxy log level policy: When the upper level is set, all logs of the lower level will be left.
- Ex) Set SCHEDULE and then all ERROR | TIMEOUT | NOTICE | SHARD | SCHEDULE logs will be left.
- Proxy Log Levell Item
- NONE or OFF: No log is left.
- ERROR (default): An internal error occurs and logging is not successfully processed
- TIMEOUT: Timeout such as session timeout or query timeout
- NOTICE: When the error is not a query without hint or other errors
- SHARD: Scheduling that shows which shard and which CAS the client request have sent to and whether the request has responded to the client or not
- SCHEDULE: Shard processing such as getting the shard key ID through parsing the hit or hashing
- ALL: All logs
SHARD CAS Log¶
SQL Log
- Parameter: SQL_LOG
- Description: Log queries such as prepare/execute/fetch and other CAS information.
- Default directory: $CUBRID/log/broker/sql_log
- File name: <broker_name>_<proxy_index>_<shard_index>_<cas_index>.sql.log
13-06-21 10:13:00.005 (0) STATE idle
13-06-21 10:13:01.035 (0) CAS TERMINATED pid 31595
13-06-21 10:14:20.198 (0) CAS STARTED pid 23378
13-06-21 10:14:21.227 (0) connect db shard1@HostA user dba url shard1 session id 3
13-06-21 10:14:21.227 (0) DEFAULT isolation_level 3, lock_timeout -1
13-06-21 10:50:28.259 (1) prepare srv_h_id 1
13-06-21 10:50:28.259 (0) auto_rollback
13-06-21 10:50:28.259 (0) auto_rollback 0
Error log
- Parameter: ERROR_LOG_DIR
- Description: For CUBRID, the cs library logs EID and error strings to the corresponding file.
- Default directory: $CUBRID/log/broker/error_log
- File name: <broker_name>_<proxy_index>_<shard_index>_<cas_index>.err
Time: 06/21/12 10:50:27.776 - DEBUG *** file ../../src/transaction/boot_cl.c, line 1409
trying to connect 'shard1@localhost'
Time: 06/21/12 10:50:27.776 - DEBUG *** file ../../src/transaction/boot_cl.c, line 1418
ping server with handshake
Time: 06/21/12 10:50:27.777 - DEBUG *** file ../../src/transaction/boot_cl.c, line 966
boot_restart_client: register client { type 4 db shard1 user dba password (null) program cubrid_cub_cas_1 login cubrid_user host HostA pid 23270 }
Constraints¶
Linux only support
CUBRID SHARD feature can be used only in Linux.
One transaction can be run on only one shard DB
One transaction should be performed within only one shard DB, so the following constraints exist.
- It is unavailable to change data in several shard DBs through changing the shard key (UPDATE). If necessary, use DELETE / INSERT.
- A query about more than one shard DB, such as join, sub-query, or, union, group by, between, like, in, exist, or any/some/all, is not supported.
Session information is valid only in each shard DB
Session information is valid within each shard DB only. Therefore, the results from session-related functions such as LAST_INSERT_ID() may be different from the intended result.
auto increment is valid only in each shard DB
The auto increment attribute or SERIAL is valid within each shard DB only. So a result different from the intended result may be returned.
