CUBRID HA

High Availability (HA) refers to a feature to provide uninterrupted service in the event of hardware, software, or network failure. This ability is a critical element in the network computing area where services should be provided 24/7. An HA system consists of more than two server systems, each of which provides uninterrupted services, even when a failure occurs in one of them.

CUBRID HA is an implementation of High Availability. CUBRID HA ensures database synchronization among multiple servers when providing service. When an unexpected failure occurs in the system which is operating services, this feature minimizes the service down time by allowing the other system to carry out the service automatically.

CUBRID HA is in a shared-nothing structure. To synchronize data from an active server to a standby server, CUBRID HA executes the following two steps.

  1. Transaction log multiplexing: Replicates the transaction logs created by an active server to another node in real time.
  2. Transaction log reflection: Analyzes replicated transaction logs in real time and reflects the data to a standby server.

CUBRID HA executes the steps described above in order to always maintain data synchronization between an active server and a standby server. For this reason, if an active server is not working properly because of a failure occurring in the master node that had been providing service, the standby server of the slave node provides service instead of the failed server. CUBRID HA monitors the status of the system and CUBRID in real time. It uses heartbeat messages to execute an automatic failover when a failure occurs.

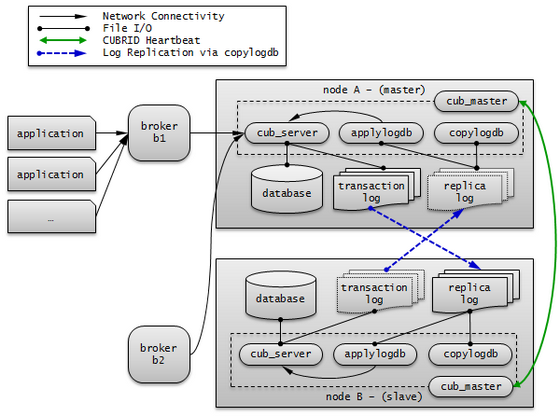

_images/image13.png

CUBRID HA Concept

Nodes and Groups

A node is a logical unit that makes up CUBRID HA. It can become one of the following nodes according to its status: master node, slave node, or replica node.

  • Master node : A node to be replicated. It provides all services which are read, write, etc. using an active server.
  • Slave node : A node that has the same information as a master node. Changes made in the master node are automatically reflected to the slave node. It provides the read service using a standby server, and a failover will occur when the master node fails.
  • Replica node : A node that has the same information as a master node. Changes made in the master node are automatically reflected to the replica node. It provides the read service using a standby server, and no failover will occur when the master node fails.

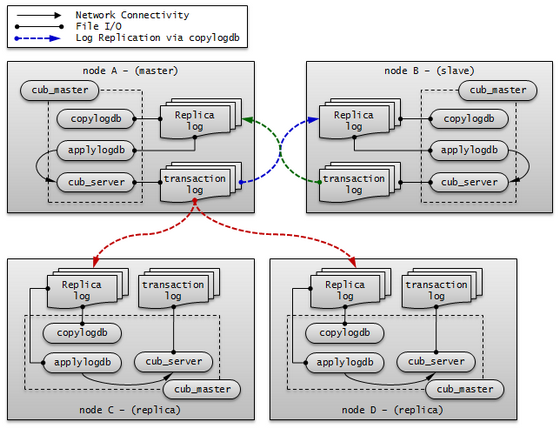

The CUBRID HA group consists of the nodes described above. You can configure the members of this group by using the ha_node_list and ha_replica_list in the cubrid_ha.conf file. Nodes in a group have the same information. They exchange status checking messages periodically and a failover will occurs when the master node fails.

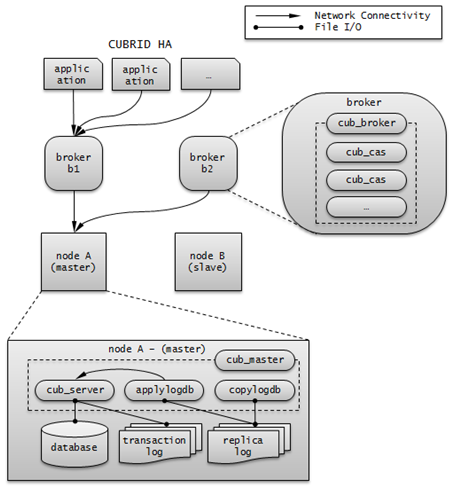

A node includes the master process (cub_master), the database server process (cub_server), the replication log copy process (copylogdb), the replication log reflection process (applylogdb), etc.

_images/image14.png

Processes

A CUBRID HA node consists of one master process (cub_master), one or more database server processes (cub_server), one or more replication log copy processes (copylogdb), and one or more replication log reflection processes (applylogdb). When a database is configured, database server processes, replication log copy processes, and replication log reflection processes will start. Because copy and reflection of a replication log are executed by different processes, the delay in replicating reflections does not affect the transaction that is being executed.

  • Master process (cub_master) : Exchanges heartbeat messages to control the internal management processes of CUBRID HA.
  • Database server process (cub_server) : Provides services such as read or write to the user. For details, see Servers.
  • Replication log copy process (copylogdb) : Copies all transaction logs in a group. When the replication log copy process requests a transaction log from the database server process of the target node, the database server process returns the corresponding log. The location of copied transaction logs can be configured in the ha_copy_log_base of cubrid_ha.conf. Use cubrid applyinfo utility to verify the information of copied replication logs. The replication log copy process has following two modes: SYNC and ASYNC. You can configure it with the ha_copy_sync_mode of cubrid_ha.conf. For details on these modes, see Log Multiplexing.

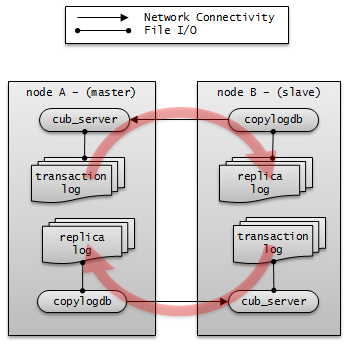

_images/image15.png
  • Replication log reflection process (applylogdb) : Reflects the log that has been copied by the replication log copy process to a node. The information of reflected replications is stored in the internal catalog (db_ha_apply_info). You can use the cubrid applyinfo utility to verify this information.
_images/image16.png

Servers

Here, the word "server" is a logical representation of database server processes. Depending on its status, a server can be either an active server or a standby server.

  • Active server : A server that belongs to a master node; the status is active. An active server provides all services, including read, write, etc. to the user.
  • Standby server : A standby server that belongs to a non-master node; the status is standby. A standby server provides only the read service to the user.

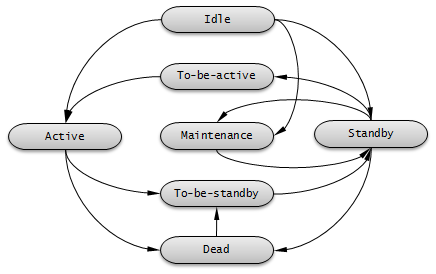

The server status changes based on the status of the node. You can use the cubrid changemode utility to verify server status. The maintenance mode exists for operational convenience and you can change it by using the cubrid changemode utility.

_images/image17.png
  • active : The status of servers that run on a master node is usually active. In this status, all services including read, write, etc. are provided.
  • standby : The status of servers that run on a slave node or a replica node is standby. In this status, only the read service is provided.
  • maintenance : The status of servers can be manually changed for operational convenience is maintenance. In this status, only a csql can access and no service is provided to the user.
  • to-be-active : The status in which a standby server will become active for reasons such as failover, etc. is to-be-active. In this status, servers prepare to become active by reflecting transaction logs from the existing master node to its own server.
  • Other : This status is internally used.

When the node status is changed, on cub_master process log and cub_server process log, following error messages are saved. But, they are saved only when the value of error_log_level in cubrid.conf is error or less.

  • The following log information of cub_master process is saved on $CUBRID/log/<hostname>_master.err file.

    HA generic: Send changemode request to the server. (state:1[active], args:[cub_server demodb ], pid:25728).
    HA generic: Receive changemode response from the server. (state:1[active], args:[cub_server demodb ], pid:25728).

  • The following log information of cub_server is saved on $CUBRID/log/server/<db_name>_<date>_<time>.err file.

    Server HA mode is changed from 'to-be-active' to 'active'.


heartbeat Message

As a core element to provide HA, it is a message exchanged among master, slave, and replica nodes to monitor the status of other nodes. A master process periodically exchanges heartbeat messages with all other master processes in the group. A heartbeat message is exchanged through the UDP port configured in the ha_port_id parameter of cubrid_ha.conf. The exchange interval of heartbeat messages is determined by an internally configured value.

When the master node fails, a failover occurs to a slave node.

_images/image18.png

failover and failback

A failover means that the highest priority slave node automatically becomes a new master node when the original master node fails to provide services due to a failure. A master process calculates scores for all nodes in the CUBRID HA group based on the collected information, promotes slave nodes to master modes when it is necessary, and then notifies the management process of the changes it has made.

A failback means that the previously failed master node automatically becomes a master node back after the failure node is restored. The CUBRID HA does not currently support this functionality.

_images/image19.png

If a heartbeat message fails to deliver, a failover will occur. For this reason, servers with unstable connection may experience failover even though no actual failures occur. To prevent a failover from occurring in the situation described above, configure ha_ping_ports. Configuring ha_ping_ports will send a ping message to a node specified in ha_ping_ports in order to verify whether the network is stable or not when a heartbeat message fails to deliver. For details on configuring ha_ping_ports, see cubrid_ha.conf.

Broker Mode

A broker can access a server with one of the following modes: Read Write, Read Only or Standby Only. This configuration value is determined by a user.

A broker finds and connects to a suitable server by trying to establish a connection in the order of server connections; this is, if it fails to establish a connection, it tries another connection to the next server defined until it reaches the last server. If no connection is made even after trying all servers, the broker fails to connect to a server.

For details on how to configure broker mode, see cubrid_broker.conf.

Read Write

"ACCESS_MODE=RW"

A broker that provides read and write services. This broker is usually connected to an active server. If no active servers exist, this broker will be connected to a standby server. For this reason, a Read Write broker can be temporarily connected to a standby server.

When the broker temporarily establishes a connection to a standby server, it will disconnect itself from the standby server at the end of every transaction so that it can attempt to find an active server at the beginning of the next transaction. When it is connected to the standby server, only read service is available. Any write requests will result in a server error.

The order of server connection is described below:

  1. The broker tries to establish a connection to an existing server connected (if exists). The active status of the server means the connection is complete.
  2. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence. The active status of the server means the connection is complete.
  3. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence and connects to the first available host.

The following picture shows how a broker connects to the host through the db-host configuration.

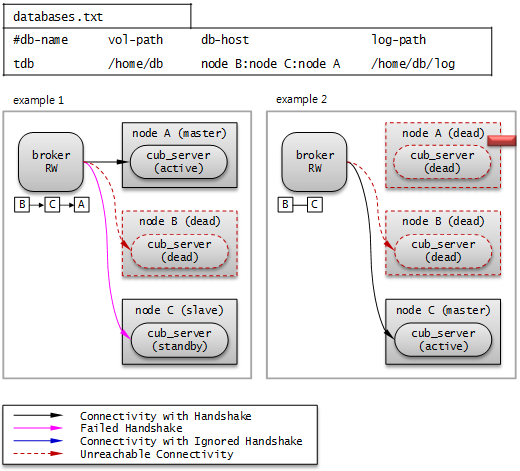

_images/image20.png

The broker tries to connect as the order of B, C, A because db-host in databases.txt is "node B:node C:node A". At this time, "node B:node C:node A" specified in db-host is the real host names defined in the /etc/hosts file.

  • Example 1. node B is crashed, node C is in standby status, and node A is in active status. Therefore, at last, the broker connects to node A.
  • Example 2. node B is crashed, and node C is in active status. Therefore, at last, the broker connects to node C.

Read Only

"ACCESS_MODE=RO"

A broker that provides the read service. This broker is connected to a standby server if possible. For this reason, the Read Only broker can be connected to an active server temporarily.

Once it establishes a connection with an active server, it will maintain that connection even if a standby server exists. To disconnect from the active server and reconnect to a standby server, you should execute the cubrid broker reset command. An error will occur when the Read Only broker receives write requests; therefore, only the read service will be available even if it is connected to an active server.

The order of server connection is described below:

  1. The broker tries to establish a connection to an existing server connected (if exists). The standby status of the server means the connection is complete.
  2. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence. The standby status of the server means the connection is complete.
  3. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence and connects to the first available host.

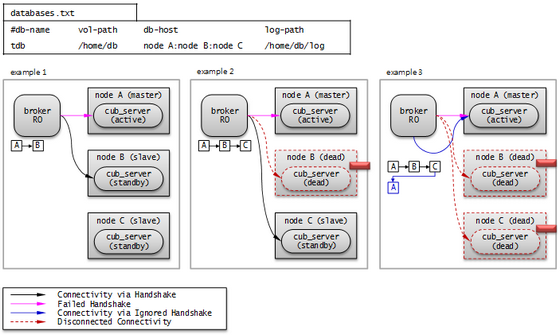

The following picture shows how a broker connects to the host through the db-host configuration.

_images/image21.png

The broker tries to connect as the order of A, B, C because db-host in databases.txt is "node A:node B:node C". At this time, "node A:node B:node C" specified in db-host is the real host names defined in the /etc/hosts file.

  • Example 1. node A is in active status, node B is in standby status. Therefore, at last, the broker connects to node B.
  • Example 2. node A is in active status, node B is crashed, and node C is in standby status. Therefore, at last, the broker connects to node C.
  • Example 3. node A is in active status, node B and node C are crashed. Therefore, at last, the broker connects to node A.

Standby Only

"ACCESS_MODE=SO"

A broker that provides the read service. This broker can only be connected to a standby server. If no standby server exists, no service will be provided.

The order of server connection is described below:

  1. The broker tries to establish a connection to an existing server connected (if exists). The standby status of the server means the connection is complete.
  2. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence. The standby status of the server means the connection is complete.

The following picture shows how a broker connects to the host through the db-host configuration.

_images/image22.png

The broker tries to connect as the order of A, B, C because db-host in databases.txt is "node A:node B:node C". At this time, "node A:node B:node C" specified in db-host is the real host names defined in the /etc/hosts file.

  • Example 1. node A is in active status, node B is in standby status. Therefore, at last, the broker connects to node B.
  • Example 2. node A is in active status, node B is crashed, and node C is in standby status. Therefore, at last, the broker connects to node C.
  • Example 3. node A is in active status, node B and node C are crashed. Therefore, at last, the broker does not connect to any node. This is the difference with Read Only broker.

Preferred Host Read Only

A broker that provides the read service. This works in the same manner as the Read Only broker except its server connection order and server selecting criteria. The server connection order and server selecting criteria can be configured in PREFERRED_HOSTS. For details on configuring these, see cubrid_broker.conf.

The order of server connection is described below:

  1. The broker tries to establish a connection to the hosts specified in PREFERRED_HOSTS in a sequence and connects to the first available host.
  2. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence. The standby status of the server means the connection is complete.
  3. The broker tries to establish a connection to the hosts specified in the databases.txt file in a sequence and connects to the first available host.

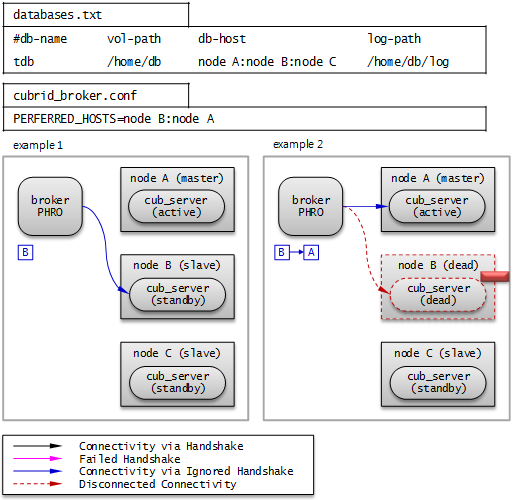

_images/image23.png

CUBRID HA Features

Duplexing Servers

Duplexing servers is building a system by configuring duplicate hardware equipment to provide CUBRID HA. This method will prevent any interruptions in a server in case of occurring a hardware failure.

Server failover

A broker defines server connection order and connects to a server according to the defined order. If the connected server fails, the broker connects to the server with the next highest priority. This requires no processing in the application side. The actions taken when the broker connects to another server may differ according to the current mode of the broker. For details on the server connection order and configuring broker mode, see cubrid_broker.conf.

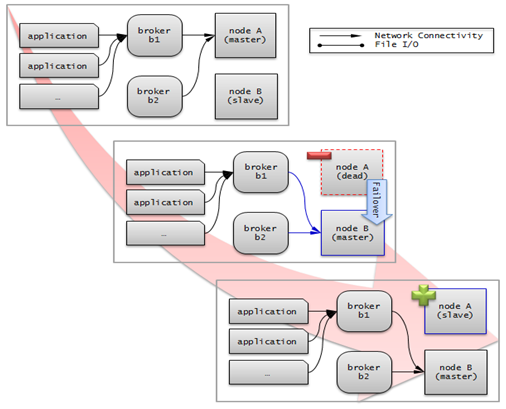

_images/image24.png

Server failback

CUBRID HA does not automatically support server failback. Therefore, to manually apply failback, restore the master node that has been abnormally terminated and run it as a slave node, terminate the node that has become the master from the slave due to failover, and finally, change the role of each node again.

For example, when nodeA is the master and nodeB is the slave, nodeB becomes the master and nodeA becomes the slave after a failover. After terminating nodeB (cubrid heartbeat stop) check (cubrid heartbeat status) whether the status of nodeA has become active. Start (cubrid heartbeat start) nodeB and it will become the slave.

Duplexing Brokers

As a 3-tier DBMS, CUBRID has middleware called the broker which relays applications and database servers. To provide HA, the broker also requires duplicate hardware equipment. This method will prevent any interruptions in a broker in case of occurring a hardware failure.

The configuration of broker redundancy is not determined by the configuration of server redundancy; it can be user-defined. In addition, it can be separated by piece of individual equipment.

To use the failover and failback functionalities of a broker, the altHosts attribute must be added to the connection URL of the JDBC, CCI, or PHP. For a description of this, see JDBC Configuration, CCI Configuration and PHP Configuration.

To set a broker, configure the cubrid_broker.conf file. To set the order of failovers of a database server, configure the databases.txt file. For more information, see Configuring and Starting Broker, and Verifying the Broker Status.

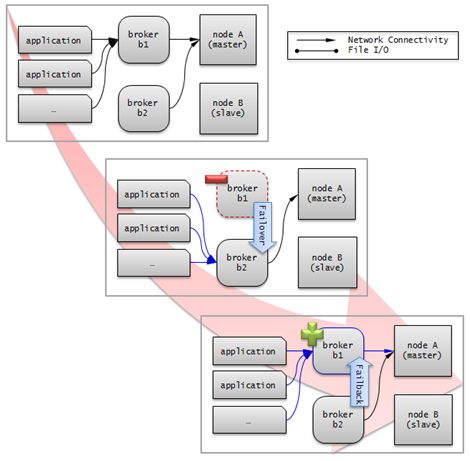

The following is an example in which two Read Write (RW) brokers are configured. When the first connection broker of the application URL is set to broker B1 and the second connection broker to broker B2, the application connects to broker B2 when it cannot connect to broker B1. When broker B1 becomes available again, the application reconnects to broker B1.

_images/image25.png

The following is an example in which the Read Write (RW) broker and the Read Only (RO) broker are configured in each piece of equipment of the master node and the slave node. First, the app1 and the app2 URL connect to broker A1 (RW) and broker B2 (RO), respectively. The second connection (altHosts) is made to broker A2 (RO) and broker B1 (RW). When equipment that includes nodeA fails, app1 and the app2 connect to the broker that includes nodeB.

_images/image26.png

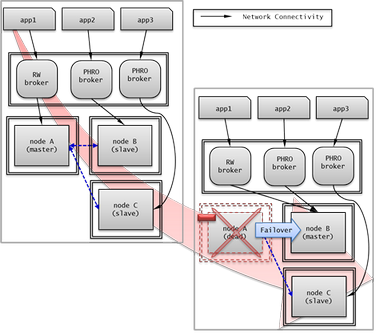

The following is an example of a configuration in which broker equipment includes one Read Write broker (master node) and two Preferred Host Read Only brokers (slave nodes). The Preferred Host Read Only brokers are connected to nodeB and nodeC to distribute the reading load.

_images/image27.png

Broker failover

The broker failover is not automatically failed over by the settings of system parameters. It is available in the JDBC, CCI, and PHP applications only when broker hosts are configured in the altHosts of the connection URL. Applications connect to the broker with the highest priority. When the connected broker fails, the application connects to the broker with the next highest priority. Configuring the altHosts of the connection URL is the only necessary action, and it is processed in the JDBC, CCI, and PHP drivers.

Broker failback

If the failed broker is recovered after a failover, the connection to the existing broker is terminated and a new connection is established with the recovered broker which has the highest priority. This requires no processing in the application side as it is processed within the JDBC, CCI, and PHP drivers. Execution time of failback depends on the value configured in JDBC connection URL. For details, see JDBC Configuration.

Log Multiplexing

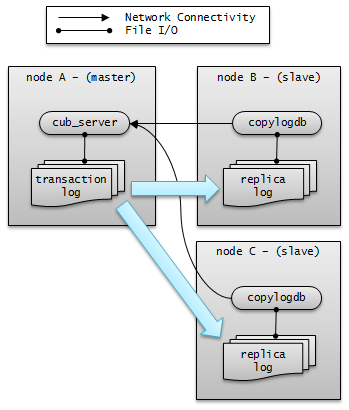

CUBRID HA keeps every node in the CUBRID HA group with the identical structure by copying and reflecting transaction logs to all nodes included in the CUBRID HA group. As the log copy structure of CUBRID HA is a mutual copy between the master and the slave nodes, it has a disadvantage of increasing the size of a log volume. However, it has an advantage of flexibility in terms of configuration and failure handling, comparing to the chain-type copy structure.

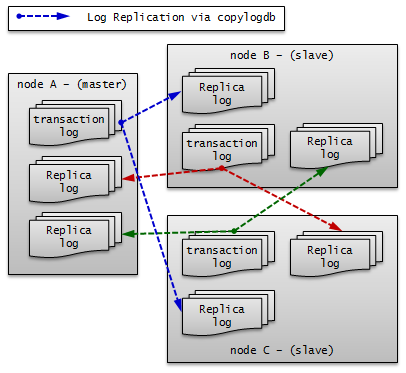

_images/image28.png

The modes of copying transaction log include SYNC and ASYNC. This value can be configured by the user in cubrid_ha.conf file.

SYNC Mode

When transactions are committed, the created transaction logs are copied to the slave node and stored as a file. The transaction commit is complete after receiving a notice on its success. Although the time it takes to execute commit in this mode may be longer than that in other modes, this is the safest method because the copied transaction logs are always guaranteed to be reflected to the standby server even if a failover occurs.

ASYNC Mode

When transactions are committed, commit is complete without verifying the transfer of transaction logs to a slave node. Therefore, it is not guaranteed that committed transactions are reflected to a slave node in a master node side.

Although ASYNC mode provides a better performance as it has almost no delay when executing commit, there may be data inconsistency in its nodes.

Note

SEMISYNC mode which has existed from the previous versions operates in the same way as SYNC mode.

Quick Start

This chapter simply explains how to build a master node and a slave node as 1:1 from DB creation. To build a new slave node from already operating DB server, see Scenario of Building New Slave Node.

Preparation

Structure Diagram

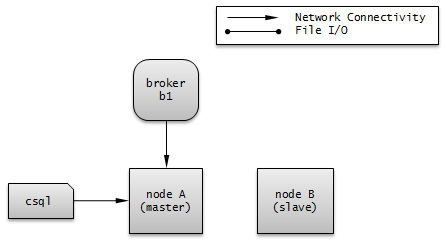

The diagram below aims to help users who are new to CUBRID HA, by explaining a simple procedure of the CUBRID HA configuration.

_images/image29.png

Specifications

Linux and CUBRID version 2008 R2.2 or later must be installed on the equipment to be used as the master and the slave nodes. CUBRID HA does not support Windows operating system.

Specifications of Configuring the CUBRID HA Equipment

  CUBRID Version OS
For master nodes CUBRID 2008 R2.2 or later Linux
For slave nodes CUBRID 2008 R2.2 or later Linux

Note

This document describes the HA configuration in CUBRID 2008 R4.1 Patch 2 or later versions. Note that the previous versions have different settings. For example, cubrid_ha.conf is only available in CUBRID 2008 R4.0 or later. ha_make_slavedb.sh describes CUBRID 2008 R4.1 Patch 2 or later.

Creating Databases and Configuring Servers

Creating Databases

Create databases to be included in CUBRID HA at each node of the CUBRID HA in the same manner. Modify the options for database creation as needed.

[nodeA]$ cd $CUBRID_DATABASES
[nodeA]$ mkdir testdb
[nodeA]$ cd testdb
[nodeA]$ mkdir log
[nodeA]$ cubrid createdb -L ./log testdb
Creating database with 512.0M size. The total amount of disk space needed is 1.5G.

CUBRID 2008 R4.4

[nodeA]$

cubrid.conf

Ensure ha_mode of $CUBRID/conf/cubrid.conf in every CUBRID HA node has the same value. Especially, take caution when configuring the log_max_archives and force_remove_log_archives parameters (logging parameters) and the ha_mode parameter (HA parameter).

# Service parameters
[service]
service=server,broker,manager

# Common section
[common]
service=server,broker,manager

# Server parameters
server=testdb
data_buffer_size=512M
log_buffer_size=4M
sort_buffer_size=2M
max_clients=100
cubrid_port_id=1523
db_volume_size=512M
log_volume_size=512M

# Adds when configuring HA (Logging parameters)
log_max_archives=100
force_remove_log_archives=no

# Adds when configuring HA (HA mode)
ha_mode=on

cubrid_ha.conf

Ensure ha_port_id, ha_node_list, ha_db_list of $CUBRID/conf/cubrid_ha.conf in every CUBRID HA node has the same value. In the example below, we assume that the host name of a master node is nodeA and that of a slave node is nodeB.

[common]
ha_port_id=59901
ha_node_list=cubrid@nodeA:nodeB
ha_db_list=testdb
ha_copy_sync_mode=sync:sync
ha_apply_max_mem_size=500

databases.txt

Ensure that you must configure the host names (nodeA:nodeB) of master and slave nodes in db-host of $CUBRID_DATABASES/databases.txt; if $CUBRID_DATABASES is not configured, do it in $CUBRID/databases/databases.txt).

#db-name vol-path db-host log-path lob-base-path
testdb /home/cubrid/DB/testdb nodeA:nodeB /home/cubrid/DB/testdb/log file:/home/cubrid/DB/testdb/lob

Starting and Verifying CUBRID HA

Starting CUBRID HA

Execute the cubrid heartbeat start at each node in the CUBRID HA group. Note that the node executing cubrid heartbeat start first will become a master node. In the example below, we assume that the host name of a master node is nodeA and that of a slave node is nodeB.

  • Master node

    [nodeA]$ cubrid heartbeat start

  • Slave node

    [nodeB]$ cubrid heartbeat start


Verifying CUBRID HA Status

Execute cubrid heartbeat status at each node in the CUBRID HA group to verify its configuration status.

[nodeA]$ cubrid heartbeat status
@ cubrid heartbeat list
 HA-Node Info (current nodeA-node-name, state master)
   Node nodeB-node-name (priority 2, state slave)
   Node nodeA-node-name (priority 1, state master)
 HA-Process Info (nodeA 9289, state nodeA)
   Applylogdb testdb@localhost:/home1/cubrid1/DB/testdb_nodeB.cub (pid 9423, state registered)
   Copylogdb testdb@nodeB-node-name:/home1/cubrid1/DB/testdb_nodeB.cub (pid 9418, state registered)
   Server testdb (pid 9306, state registered_and_active)

[nodeA]$

Use the cubrid changemode utility at each node in the CUBRID HA group to verify the status of the server.

  • Master node

    [nodeA]$ cubrid changemode testdb@localhost
    The server 'testdb@localhost''s current HA running mode is active.

  • Slave node

    [nodeB]$ cubrid changemode testdb@localhost
    The server 'testdb@localhost''s current HA running mode is standby.


Verifying the CUBRID HA Operation

Verify that action is properly applied to standby server of the slave node after performing write in an active server of the master node. To make a success connection via the CSQL Interpreter in HA environment, you must specify the host name to be connected after the database name like "@<host_name>"). If you specify a host name as localhost, it is connected to local node.

Warning

Ensure that primary key must exist when creating a table to have replication successfully processed.

  • Master node

    [nodeA]$ csql -u dba testdb@localhost -c "create table abc(a int, b int, c int, primary key(a));"
    [nodeA]$ csql -u dba testdb@localhost -c "insert into abc values (1,1,1);"
    [nodeA]$

  • Slave node

    [nodeB]$ csql -u dba testdb@localhost -l -c "select * from abc;"
    === <Result of SELECT Command in Line 1> ===
    <00001> a: 1
            b: 1
            c: 1
    [nodeB]$


Configuring and Starting Broker, and Verifying the Broker Status

Configuring the Broker

To provide normal service during a database failover, it is necessary to configure an available database node in the db-host of databases.txt. And ACCESS_MODE in the cubrid_broker.conf file must be specified; if it is omitted, the default value is configured to Read Write mode. If you want to divide into a separate device, you must configure cubrid_broker.conf and databases.txt in the broker device.

  • databases.txt

    #db-name        vol-path                db-host         log-path        lob-base-path
    testdb          /home1/cubrid1/CUBRID/testdb  nodeA:nodeB        /home1/cubrid1/CUBRID/testdb/log file:/home1/cubrid1/CUBRID/testdb/lob

  • cubrid_broker.conf

    [%testdb_RWbroker]
    SERVICE                 =ON
    BROKER_PORT             =33000
    MIN_NUM_APPL_SERVER     =5
    MAX_NUM_APPL_SERVER     =40
    APPL_SERVER_SHM_ID      =33000
    LOG_DIR                 =log/broker/sql_log
    ERROR_LOG_DIR           =log/broker/error_log
    SQL_LOG                 =ON
    TIME_TO_KILL            =120
    SESSION_TIMEOUT         =300
    KEEP_CONNECTION         =AUTO
    CCI_DEFAULT_AUTOCOMMIT  =ON

    # broker mode parameter
    ACCESS_MODE             =RW


Starting Broker and Verifying its Status

A broker is used to access applications such as JDBC, CCI or PHP. Therefore, to simply test server redundancy, execute the CSQL interpreter that is directly connected to the server processes, without having to start a broker. To start a broker, execute cubrid broker start. To stop it, execute cubrid broker stop.

The following example shows how to execute a broker from the master node.

[nodeA]$ cubrid broker start
@ cubrid broker start
++ cubrid broker start: success
[nodeA]$ cubrid broker status
@ cubrid broker status
% testdb_RWbroker
---------------------------------------------------------
ID   PID   QPS   LQS PSIZE STATUS
---------------------------------------------------------
 1  9532     0     0  48120  IDLE

Configuring Applications

Specifies the host name (nodeA_broker, nodeB_broker) and port for an application to connect in the connection URL. The altHosts attribute defines the broker where the next connection will be made when the connection to a broker fails. The following is an example of a JDBC program. For more information on CCI and PHP, see CCI Configuration and PHP Configuration.

Connection connection = DriverManager.getConnection("jdbc:CUBRID:nodeA_broker:33000:testdb:::?charSet=utf-8&altHosts=nodeB_broker:33000", "dba", "");

Environment Configuration

cubrid.conf

The cubrid.conf file that has general information on configuring CUBRID is located in the $CUBRID/conf directory. This page provides information about cubrid.conf parameters used by CUBRID HA.

HA or Not

ha_mode

ha_mode is a parameter used to configure whether to use CUBRID HA. The default value is off. CUBRID HA does not support Windows; it supports Linux only.

  • off : CUBRID HA is not used.
  • on : CUBRID HA is used. Failover is supported for its node.
  • replica : CUBRID HA is used. Failover is not supported for its node.

The ha_mode parameter can be re-configured in the [@<database>] section; however, only off can be entered in the case. An error is returned if a value other than off is entered in the [@<database>] section.

If ha_mode is on, the CUBRID HA values are configured by reading cubrid_ha.conf.

This parameter cannot be modified dynamically. To modify the value of this parameter, you must restart it.

Logging

log_max_archives

log_max_archives is a parameter used to configure the minimum number of archive log files to be archived. The minimum value is 0 and the default is INT_MAX (2147483647). The behavior of the parameter is affected by force_remove_log_archives.

The existing archive log files to which the activated transaction refers or the archive log files of the master node not reflected to the slave node in HA environment will not be deleted. For details, see the following force_remove_log_archives.

For details about log_max_archives, see Logging-Related Parameters.

force_remove_log_archives

It is recommended to configure force_remove_log_archives to no so that archive logs to be used by HA-related processes always can be maintained to set up HA environment by configuring ha_mode to on.

If you configure the value for force_remove_log_archives to yes, the archive log files which will be used in the HA-related process can be deleted, and this may lead to an inconsistency between replicated databases. If you want to maintain free disk space even though doing this could lead to risk, you can configure the value to yes.

For details about force_remove_log_archives, see Logging-Related Parameters.

Note

From 2008 R4.3 in replica mode, it will be always deleted except for archive logs as many as specified in the log_max_archives parameter, regardless the force_remove_log_archives value specified.

Access

max_clients

max_clients is a parameter used to configure the maximum number of clients to be connected to a database server simultaneously. The default is 100.

Because the replication log copy and the replication log reflection processes start by default if CUBRID HA is used, you must configure the value to twice the number of all nodes in the CUBRID HA group, except the corresponding node. Furthermore, you must consider the case in which a client that is connected to another node at the time of failover attempts to connect to that node.

For details about max_clients, see Connection-Related Parameters.

The Parameters That Must Have the Same Value for All Nodes

  • log_buffer_size : The size of a log buffer. This must be same for all nodes, as it affects the protocol between copylogdb that duplicate the server and logs.
  • log_volume_size : The size of a log volume. In CUBRID HA, the format and contents of a transaction log are the same as that of the replica log. Therefore, the parameter must be same for all nodes. If each node creates its own DB, the cubrid createdb options (--db-volume-size, --db-page-size, --log-volume-size, --log-page-size, etc.) must be the same.
  • cubrid_port_id : The TCP port number for creating a server connection. It must be same for all nodes in order to connect copylogdb that duplicate the server and logs.
  • HA-related parameters : HA parameters included in cubrid_ha.conf must be identical by default. However, the following parameters can be set differently according to the node.

The Parameters That Can be Different Among Nodes

  • The ha_mode parameter in replica node
  • The ha_copy_sync_mode parameter
  • The ha_ping_hosts parameter

Example

The following example shows how to configure cubrid.conf. Please take caution when configuring log_max_archives and force_remove_log_archives (logging-related parameters), and ha_mode (an HA-related parameter).

# Service Parameters
[service]
service=server,broker,manager

# Server Parameters
server=testdb
data_buffer_size=512M
log_buffer_size=4M
sort_buffer_size=2M
max_clients=200
cubrid_port_id=1523
db_volume_size=512M
log_volume_size=512M

# Adds when configuring HA (Logging parameters)
log_max_archives=100
force_remove_log_archives=no

# Adds when configuring HA (HA mode)
ha_mode=on
log_max_archives=100

cubrid_ha.conf

The cubrid_ha.conf file that has generation information on CUBRID HA is located in the $CUBRID/conf directory. CUBRID HA does not support Windows; it supports Linux only.

Node

ha_node_list

ha_node_list is a parameter used to configure the group name to be used in the CUBRID HA group and the host name of member nodes in which failover is supported. The group name is separated by @. The name before @ is for the group, and the names after @ are for host names of member nodes. A colon (:) is used to separate individual host names. The default is localhost@localhost.

Note

The host name of the member nodes specified in this parameter cannot be replaced with the IP. You should use the host names which are registered in /etc/hosts.

A node in which the ha_mode value is set to on must be specified in ha_node_list. The value of the ha_node_list of all nodes in the CUBRID HA group must be identical. When a failover occurs, a node becomes a master node in the order specified in the parameter.

This parameter can be modified dynamically. If you modify the value of this parameter, you must execute cubrid heartbeat reload to apply the changes.

ha_replica_list

ha_replica_list is parameter used to configure the group name - which is used in the CUBRID HA group - and the replica node names - which are host names of member nodes in which failover is not supported. There is no need to specify this if you do not construct replica nodes. The group name is separated by @. The name before @ is for the group, and the names after @ are for host names of member nodes. A comma(,) or colon(:) is used to separate individual host names. The default is NULL.

The group name must be identical to the name specified in ha_replica_list. The host names of member nodes and the host names of nodes specified in this parameter must be registered in /etc/hosts. A node in which the ha_mode value is set to replica must be specified in ha_replica_list. The ha_replica_list values of all nodes in the CUBRID HA group must be identical.

This parameter can be modified dynamically. If you modify the value of this parameter, you must execute cubrid heartbeat reload to apply the changes.

Note

The host name of the member nodes specified in this parameter cannot be replaced with the IP. You should use the host names which are registered in /etc/hosts.

ha_db_list

ha_db_list is a parameter used to configure the name of the database that will run in CUBRID HA mode. The default is NULL. You can specify multiple databases by using a comma (,).

Note

The host name of the member nodes specified in this parameter cannot be replaced with the IP. You should use the host names which are registered in /etc/hosts.

Access

ha_port_id

ha_port_id is a parameter used to configure the UDP port number; the UDP port is used to detect failure when exchanging heartbeat messages. The default is 59,901.

If a firewall exists in the service environment, the firewall must be configured to allow the configured port to pass through it.

ha_ping_hosts

ha_ping_hosts is a parameter used to configure the host which verifies whether or not a failover occurs due to unstable network when a failover has started in a slave node. The default is NULL.

The host name of the member nodes specified in this parameter can be replaced with the IP. When a host name is used, the name must be registered in /etc/hosts.

Configuring this parameter can prevent split-brain, a phenomenon in which two master nodes simultaneously exist as a result of the slave node erroneously detecting an abnormal termination of the master node due to unstable network status and then promoting itself as the new master. When specifying multiple hosts, separate each host with a colon (:).

Replication

ha_copy_sync_mode

ha_copy_sync_mode is a parameter used to configure the mode of storing the replication log, which is a copy of transaction log. The default is SYNC.

The value can be one of the following: SYNC, SEMISYNC, or ASYNC. The number of values must be the same as the number of nodes specified in ha_node_list. They must be ordered by the specified value. You can specify multiple nodes by using a colon (:). The replica node is always working in ASNYC mode regardless of this value.

For details, see Log Multiplexing.

ha_copy_log_base

ha_copy_log_base is a parameter used to configure the location of storing the replication log. The default is $CUBRID_DATABASES.

For details, see Log Multiplexing.

ha_copy_log_max_archives

ha_copy_log_max_archives is a parameter used to configure the maximum number of keeping replication log files. The default is 1. Replicated log files which are not applied to the current database are not deleted.

To prevent wasting needless disk space, it is recommended to keep this value as 1, the default.

ha_apply_max_mem_size

ha_apply_max_mem_size is a parameter used to configure the value of maximum memory that the replication log reflection process of CUBRID HA can use. The default and maximum values are 500 (unit: MB). When the value is larger than the size allowed by the system, memory allocation fails and the HA replication reflection process may malfunction. For this reason, you must check whether or not the memory resource can handle the specified value before setting it.

ha_applylogdb_ignore_error_list

ha_applylogdb_ignore_error_list is a parameter used to configure for proceeding replication in CUBRID HA process by ignoring an error occurrence. The error codes to be ignored are separated by a comma (,). This value has a high priority. Therefore, when this value is the same as the value of the ha_applylogdb_retry_error_list parameter or the error code of "List of Retry Errors," the values of the ha_applylogdb_retry_error_list parameter or the error code of "List of Retry Errors" are ignored and the tasks that cause the error are not retried. For "List of Retry Errors," see the description of ha_applylogdb_retry_error_list below.

ha_applylogdb_retry_error_list

ha_applylogdb_retry_error_list is a parameter used to configure for retrying tasks that caused an error in the replication log reflection process of CUBRID HA until the task succeeds. When specifying errors to be retried, separate each error with a comma (,). The following table shows the default "List of Retry Errors." If these values exist in ha_applylogdb_ignore_error_list, the error will be overridden.

List of Retry Errors

Error Code Name Error Code
ER_LK_UNILATERALLY_ABORTED -72
ER_LK_OBJECT_TIMEOUT_SIMPLE_MSG -73
ER_LK_OBJECT_TIMEOUT_CLASS_MSG -74
ER_LK_OBJECT_TIMEOUT_CLASSOF_MSG -75
ER_LK_PAGE_TIMEOUT -76
ER_PAGE_LATCH_TIMEDOUT -836
ER_PAGE_LATCH_ABORTED -859
ER_LK_OBJECT_DL_TIMEOUT_SIMPLE_MSG -966
ER_LK_OBJECT_DL_TIMEOUT_CLASS_MSG -967
ER_LK_OBJECT_DL_TIMEOUT_CLASSOF_MSG -968
ER_LK_DEADLOCK_CYCLE_DETECTED -1021

The following example shows how to configure cubrid_ha.conf.

[common]
ha_node_list=cubrid@nodeA:nodeB
ha_db_list=testdb
ha_copy_sync_mode=sync:sync
ha_apply_max_mem_size=500

ha_copy_log_timeout

This is the maximum value of the time in which a node's database server process (cub_server) waits a response from another node's replication-log-copy process (copylogdb). The default is 5(seconds). If this value is -1, this means to be infinite wait.

ha_monitor_disk_failure_interval

CUBRID judges the disk failure for each time which is set to the value of this parameter. The default is 30, and the unit is second.

  • If the value of ha_copy_log_timeout parameter is -1, the value of ha_monitor_disk_failure_interval parameter is ignored and the disk failure is not judged.
  • If the value of ha_monitor_disk_failure_interval parameter is smaller than the value of ha_copy_log_timeout parameter, the disk failure is judged for each ha_copy_log_timeout + 20 seconds.

Note

The following example shows how to configure the value of /etc/hosts (a host name of a member node: nodeA, IP: 192.168.0.1).

127.0.0.1 localhost.localdomain localhost
192.168.0.1 nodeA

cubrid_broker.conf

The cubrid_broker.conf file that has general information on configuring CUBRID broker is located in the $CUBRID/conf directory. This section explains the parameters of cubrid_broker.conf that are used by CUBRID HA.

Access Target

ACCESS_MODE

ACCESS_MODE is a parameter used to configure the mode of a broker. The default is RW.

Its value can be one of the following: RW (Read Write), RO (Read Only), SO (Slave Only), or PHRO (Preferred Host Read Only). For details, see Broker Mode.

PREFERRED_HOSTS

PREFERRED_HOSTS is a parameter used only when the ACCESS_MODE parameter value is PHRO. The default value is NULL.

You can specify multiple nodes by using a colon (:). First, it tries to connect to host in the following order: host specified in the PREFERRED_HOSTS parameter first and then host specified in $CUBRID_DATABASES/databases.txt. For details, see Broker Mode.

The following example shows how to configure cubrid_broker.conf.

[%PHRO_broker]
SERVICE                 =ON
BROKER_PORT             =33000
MIN_NUM_APPL_SERVER     =5
MAX_NUM_APPL_SERVER     =40
APPL_SERVER_SHM_ID      =33000
LOG_DIR                 =log/broker/sql_log
ERROR_LOG_DIR           =log/broker/error_log
SQL_LOG                 =ON
TIME_TO_KILL            =120
SESSION_TIMEOUT         =300
KEEP_CONNECTION         =AUTO
CCI_DEFAULT_AUTOCOMMIT  =ON

# Broker mode setting parameter
ACCESS_MODE             =PHRO
PREFERRED_HOSTS         =nodeA:nodeB:nodeC

databases.txt

The databases.txt file that has information on servers to be connected by the CAS of a broker and their order is located in the $CUBRID_DATABASES (if not specified, $CUBRID/databases) directory; the information can be configured by using db_hosts. You can specify multiple nodes by using a colon (:).

The following example shows how to configure databases.txt.

#db-name    vol-path        db-host     log-path     lob-base-path
testdb       /home/cubrid/DB/testdb nodeA:nodeB   /home/cubrid/DB/testdb/log  file:/home/cubrid/DB/testdb/lob

JDBC Configuration

To use CUBRID HA in JDBC, you must specify the connection information of another broker (nodeB_broker) to be connected when a failure occurs in broker (nodeA_broker). The attribute configured for CUBRID HA is altHosts which represents information of one or more broker nodes to be connected. For details, see Configuration Connection.

The following example shows how to configure JDBC:

Connection connection = DriverManager.getConnection("jdbc:CUBRID:nodeA_broker:33000:testdb:::?charSet=utf-8&altHosts=nodeB_broker:33000", "dba", "");

CCI Configuration

To use CUBRID HA in CCI, you must use the cci_connect_with_url() function which additionally allows specifying connection information in connection URL; the connection information is used when a failure occurs in broker. The attribute configured for CUBRID HA is altHosts which represents information of one or more broker nodes to be connected.

The following example shows how to configure CCI.

con = cci_connect_with_url ("cci:CUBRID:nodeA_broker:33000:testdb:::?altHosts=nodeB_broker:33000", "dba", NULL);
if (con < 0)
{
      printf ("cannot connect to database\n");
      return 1;
}

PHP Configuration

To use the functions of CUBRID HA in PHP, connect to the broker by using cubrid_connect_with_url , which is used to specify the connection information of the failover broker in the connection URL. The attribute specified for CUBRID HA is altHosts, the information on one or more broker nodes to be connected when a failover occurs.

The following example shows how to configure PHP.

<?php
$con = cubrid_connect_with_url ("cci:CUBRID:nodeA_broker:33000:testdb:::?altHosts=nodeB_broker:33000", "dba", NULL);
if ($con < 0)
{
      printf ("cannot connect to database\n");
      return 1;
}
?>

Note

If you want to run smoothly the broker's failover in the environment which the broker's failover is enabled by setting altHosts, you should set the value of disconnectOnQueryTimeout in URL as true.

If this value is true, an application program releases the existing connection from a broker and reconnects to the other broker which is specified on altHosts.

Running and Monitoring

cubrid heartbeat Utility

cubrid heartbeat command can be run as cubrid hb, the abbreviated command.

start

This utility is used to activate CUBRID HA feature and start all processes of CUBRID HA in the node(database server process, replication log copy process, and replication log reflection process). Note that a master node or a slave node is determined based on the execution order of cubrid heartbeat start.

How to execute the command is as shown below.

$ cubrid heartbeat start

The database server process configured in HA mode cannot be started with the cubrid server start command.

Specify the database name at the end of the command to run only the HA configuration processes (database server process, replication log copy process, and replication log reflection process) of a specific database in the node. For example, use the following command to run the database testdb only:

$ cubrid heartbeat start testdb

stop

This utility is used to disable and stop all components of CUBRID. The node that executes this command stops and a failover occurs to the next slave node according to the CUBRID HA configuration.

How to use this utility is as shown below.

$ cubrid heartbeat stop

The database server process cannot be stopped with the cubrid server stop command.

If you want to deactivate CUBRID HA feature immediately, add -i option into the "cubrid heartbeat stop" command. This option is used when the speedy quitting is required because the DB server process is working improperly.

$ cubrid heartbeat stop -i
or
$cubrid heartbeat stop --immediately

reload

This utility is used to retrieve the CUBRID HA information again, and it starts or stops the CUBRID HA components according to new CUBRID HA configuration. Used to add or delete a node; it starts the HA processes which correspond to the added nodes after modification or it stops the HA processes which correspond to the deleted nodes.

How to use this utility is as shown below.

$ cubrid heartbeat reload

Reconfigurable parameters are ha_node_list and ha_replica_list. Even if an error occurs on a special node during running this command, the left jobs are continued. After reload command is finished, check if the reconfiguration of nodes is applied well or not. If it fails, find the reason and resolve it.

deregister

This utility is used to terminate applylogdb or copylogdb, the CUBRID HA configuration processes. Specifies the process to be terminated when executing deregister by using the process ID. It is used to pause the replication of the HA log (copylogdb) or the reflection of replication logs (applylogdb) for reconfiguring the master node. To restart HA functionalities, manually execute cub_admin copylogdb and cub_admin applylogdb.

It is recommended that this command only be used when it is unavoidable.

The following example shows how to use it.

$ cubrid heartbeat deregister <process-id>

The following is an example of re-executing the copylogdb after executing deregister. The -L option is used to specify the location where the copy of a transaction log will be stored. The -m option is used to store the replica of the transaction log; it behaves like the ha_copy_sync_mode parameter of cubrid_ha.conf. Specify the option values with the values set in the cubrid_ha.conf file.

$ cub_admin copylogdb -L /home/cubrid/DB/testdb_nodeA -m async testdb@node-hostname &

The following is an example of re-executing the applylogdb after executing deregister. The -L option is used to specify the location where the saved transaction log will be read. The --max_mem-size is the maximum memory size that the applylogdb will use. This behaves like the ha_apply_max_mem_size parameter in the cubrid_ha.conf file. Specify the option values with the values set in the cubrid_ha.conf file.

$ cub_admin applylogdb -L /home/cubrid/DB/testdb_nodeA --max-mem-size=500 testdb@localhost &

status

This utility is used to output the information of CUBRID HA group and CUBRID HA components. How to use this utility is as shown below.

$ cubrid heartbeat status
@ cubrid heartbeat status

 HA-Node Info (current nodeB, state slave)
   Node nodeB (priority 2, state slave)
   Node nodeA (priority 1, state master)


 HA-Process Info (master 2143, state slave)
   Applylogdb testdb@localhost:/home/cubrid/DB/testdb_nodeB (pid 2510, state registered)
   Copylogdb testdb@nodeA:/home/cubrid/DB/testdb_nodeA (pid 2505, state registered)
   Server testdb (pid 2393, state registered_and_standby)

Registering HA to cubrid service

If you register heartbeat to CUBRID service, you can use the utilities of cubrid service to start, stop or check all the related processes at once. The processes specified by service parameter in [service] section in cubrid.conf file are registered to CUBRID service. If this parameter includes heartbeat, you can start/stop all the service processes and the HA-related processes by using cubrid service start / stop command.

How to configure cubrid.conf file is shown below.

# cubrid.conf

...

[service]

...

service=broker,heartbeat

...

[common]

...

ha_mode=on

cubrid applyinfo

This utility is used to check the copied and applied status of replication logs by CUBRID HA.

cubrid applyinfo [option] <database-name>
  • database-name : Specifies the name of a server to monitor. A node name is not included.

The following shows the [options] used on cubrid applyinfo.

-r, --remote-host-name=HOSTNAME

Configures the name of a target node in which transaction logs are copied. Using this option will output the information of active logs (Active Info.) of a target node.

-a, --applied-info

Outputs the information of replication reflection of a node executing cubrid applyinfo. The -L option is required to use this option.

-L, --copied-log-path=PATH

Configures the location of transaction logs copied from the other node. Using this option will output the information of transaction logs copied (Copied Active Info.) from the other node.

-p, --pageid=ID

Outputs the information of a specific page in the copied logs. This is available only when the -L option is enabled. The default is 0, it means the active page.

-v

Outputs detailed information.

-i, --interval=SECOND

Outputs the copied status and applied status of transaction logs per specified seconds. To see the delayed status of the replicated log, this option is mandatory.

Example

The following example shows how to check log information (Active Info.) of the master node, the status information of log copy (Copied Active Info.) of the slave node, and the applylogdb info (Applied Info.) of the slave node by executing applyinfo in the slave node.

  • Applied Info.: Shows the status information after the slave node applies the replication log.
  • Copied Active Info.: Shows the status information after the slave node copies the replication log.
  • Active Info.: Shows the status information after the master node records the transaction log.
  • Delay in Copying Active Log: Shows the status information which the transaction logs' copy is delayed.
  • Delay in Applying Copied Log: Shows the status information which the transaction logs' application is delayed.
[nodeB] $ cubrid applyinfo -L /home/cubrid/DB/testdb_nodeA -r nodeA -a -i 3 testdb

 *** Applied Info. ***
Insert count                   : 289492
Update count                   : 71192
Delete count                   : 280312
Schema count                   : 20
Commit count                   : 124917
Fail count                     : 0

 *** Copied Active Info. ***
DB name                        : testdb
DB creation time               : 04:29:00.000 PM 11/04/2012 (1352014140)
EOF LSA                        : 27722 | 10088
Append LSA                     : 27722 | 10088
HA server state                : active

 *** Active Info. ***
DB name                        : testdb
DB creation time               : 04:29:00.000 PM 11/04/2012 (1352014140)
EOF LSA                        : 27726 | 2512
Append LSA                     : 27726 | 2512
HA server state                : active

 *** Delay in Copying Active Log ***
Delayed log page count         : 4
Estimated Delay                : 0 second(s)

 *** Delay in Applying Copied Log ***
Delayed log page count         : 1459
Estimated Delay                : 22 second(s)

The items shown by each status are as follows:

  • Applied Info.
    • Committed page: The information of committed pageid and offset of a transaction reflected last through replication log reflection process. The difference between this value and the EOF LSA of "Copied Active Info. represents the amount of replication delay.
    • Insert Count: The number of Insert queries reflected through replication log reflection process.
    • Update Count: The number of Update queries reflected through replication log reflection process.
    • Delete Count: The number of Delete queries reflected through replication log reflection process.
    • Schema Count: The number of DDL statements reflected through replication log reflection process.
    • Commit Count: The number of transactions reflected through replication log reflection process.
    • Fail Count: The number of DML and DDL statements in which log reflection through replication log reflection process fails.
  • Copied Active Info.
    • DB name: Name of a target database in which the replication log copy process copies logs
    • DB creation time: The creation time of a database copied through replication log copy process
    • EOF LSA: Information of pageid and offset copied at the last time on the target node by the replication log copy process. There will be a delay in copying logs as much as difference with the EOF LSA value of "Active Info." and with the Append LSA value of "Copied Active Info."
    • Append LSA: Information of pageid and offset written at the last time on the disk by the replication log copy process. This value can be less than or equal to EOF LSA. There will be a delay in copying logs as much as difference between the EOF LSA value of "Copied Active Info." and this value.
    • HA server state: Status of a database server process which replication log copy process receives logs from. For details on status, see Servers.
  • Active Info.
    • DB name: Name of a database of which the node was configured in the -r option.
    • DB creation time: Database creation time of a node that is configured in the -r option.
    • EOF LSA: The last information of pageid and offset of a database transaction log of a node that is configured in the -r option. There will be a delay in copying logs as much as difference between the EOF LSA value of "Copied Active Info." and this value.
    • Append LSA: Information of pageid and offset written at the last time on the disk by the database of which the node was configured in the -r option.
    • HA server state: The server status of a database server of which the node was configured in the -r option.
  • Delay in Copying Active Log
    • Delayed log page count: the count of transaction log pages which the copy is delayed.
    • Estimated Delay: the expected time which the logs copying is completed.
  • Delay in Applying Copied Log
    • Delayed log page count: the count of transaction log pages which the application is delayed.
    • Estimated Delay: the expected time which the logs applying is completed.

cubrid changemode

This utility is used to check and change the server status of CUBRID HA.

cubrid changemode [options] <database-name@node-name>
  • database-name@node-name : Specifies the name of a server to be checked or changed and separates each node name by using @.

The following shows [options] used in cubrid changemode.

-m, --mode=MODE

Changes the server status. You can enter one of the following:

standby, maintenance or active.

-f, --force

Configures whether or not to forcibly change the server status. This option must be configured if you want to change the server status from to-be-active to active. |

If it is not configured, the status will not be changed to active. Forcibly change may cause data inconsistency among replication nodes; so it is not recommended. |

-t, --timeout=SECOND

The default is 5(seconds). Configures the waiting time for the normal completion of the transaction that is being processed when the node status switches from standby to maintenance.

If the transaction is still in progress beyond the configured time, it will be forced to terminate and switch to maintenance status; if all transactions have completed normally within the configured time, it will switch to maintenance status immediately.

Status Changeable

This table shows changeable modes depending on current status.

  Changeable
active standby maintenance
Current Status standby X O O
to-be-standby X X X
active O X X
to-be-active O* X X
maintenance X O O

* When the server status is to-be-active, forcibly change may cause data inconsistency among replication nodes. It is not recommended if you are not skilled enough.

Example

The following example shows how to switch the testdb server status in the localhost node to maintenance. The waiting time for all transactions in progress to complete normally is 5 seconds, which is the default value for the -t option. If all transactions are complete within this time limit, the status will be switched immediately. However, if there are transactions still being processed after this time limit, they will be rolled back before changing the status.

$ cubrid changemode -m maintenance testdb@localhost
The server 'testdb@localhost''s current HA running mode is maintenance.

The following example shows how to retrieve status of the testdb server in the localhost node.

$ cubrid changemode testdb@localhost
The server 'testdb@localhost''s current HA running mode is active.

Monitoring CUBRID Manager HA

CUBRID Manager is a dedicated CUBRID database management tool that provides the CUBRID database management and query features in a GUI environment. CUBRID Manager provides the HA dashboard, which shows the relationship diagram for the CUBRID HA group and server status. For details, see CUBRID Manager manual.

Structures of HA

There are four possible structures for CUBRID HA: The default structure, multiple-slave node structure, load balancing structure, and multiple-standby server structure. In the table below, M stands for a master node, S for a slave node, and R for a replica node.

Structure Node structure (M:S:R) Characteristic
Default Structure 1:1:0 The most basic structure of CUBRID HA consists of one master node and one slave node and provides availability which is a unique feature of CUBRID HA.
Multiple-Slave Node Structure 1:N:0 This is a structure in which availability is increased by several slave nodes. However, note that there may be a situation in which data is inconsistent in the CUBRID HA group when multiple failures occur.
Load Balancing Structure 1:1:N Several replica nodes are added in the basic structure. Read service load can be distributed, and the HA load is reduced, comparing to a multiple-slave node structure. Note that replica nodes do not failover.
Multiple-Standby Server Structure 1:1:0 Basically, this structure is the same as the basic structure. However, several slave nodes are installed on a single physical server.

Default Structure of HA

The most basic structure of CUBRID HA consists of one master node and one slave node.

The default configuration is one master node and one slave node. To distribute the write load, a multi-slave node or load-distributed configuration is recommended. In addition, to access a specific node such as a slave node or replica node in read-only mode, configure the Read Only broker or the Preferred Host Read Only broker. For details about broker configuration, see Duplexing Brokers.

An Example of Node Configuration

_images/image30.png

You can configure each node in the basic structure of HA as shown below:

  • node A (master node)

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf:

      ha_port_id=59901
      ha_node_list=cubrid@nodeA:nodeB
      ha_db_list=testdb

  • node B (slave node): Configure this node in the same manner as node A.

For the databases.txt file of a broker node, it is necessary to configure the list of hosts configured as HA in db-host according to their priority. The following example shows the databases.txt file.

#db-name    vol-path                  db-host       log-path                   lob-base-path
testdb     /home/cubrid/DB/testdb     nodeA:nodeB   /home/cubrid/DB/testdb/log file:/home/cubrid/DB/testdb/lob

The cubrid_broker.conf file can be set in a variety of ways according to configuration of the broker. It can also be configured as separate equipment with the databases.txt file.

The example below shows that the RW broker is set in each node, and node A and node B have the same value.

[%RW_broker]
...

# Broker mode setting parameter
    ACCESS_MODE             =RW

Connection Configuration of Applications

See JDBC Configuration, CCI Configuration, and PHP Configuration in Environment Configuration.

Remark

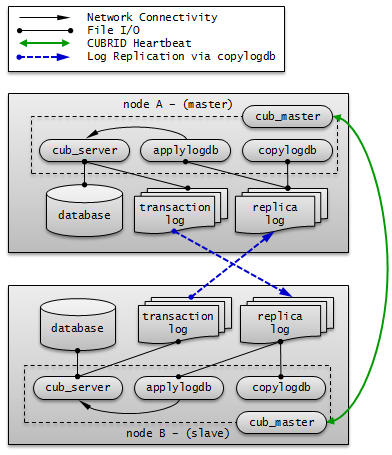

The moving path of a transaction log in these configurations is as follows:

_images/image31.png

Multiple-Slave Node Structure

In multiple-slave node structure, there is one master node and several slave nodes to improve the service availability of CUBRID.

Because replication log copy process and replication log reflection process are running at all nodes in the CUBRID HA group, a load of copying replication log occurs. Therefore, all nodes in the CUBRID HA group have high network and disk usage.

Because there are many nodes with HA enabled, read and write services never fail as long as a single node is alive.

In the multiple-slave node structure, the node becoming a master node when failover occurs is determined by the order specified in ha_node_list. If the value of ha_node_list is node1:node2:node3 and the master node is node A, node B will become a new master node when the master node fails.

An Example of Node Configuration

_images/image32.png

You can configure each node in the basic structure of HA as shown below:

  • node A (master node)

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf:

      ha_port_id=59901
      ha_node_list=cubrid@nodeA:nodeB:nodeC
      ha_db_list=testdb

  • node B, node C (slave node): Configure this node in the same manner as node A.

You must enter the list of hosts configured in HA in order of priority in the databases.txt file of a broker node. The following is an example of the databases.txt file.

#db-name    vol-path                  db-host             log-path                   lob-base-path
testdb     /home/cubrid/DB/testdb     nodeA:nodeB:nodeC   /home/cubrid/DB/testdb/log file:/home/cubrid/DB/testdb/lob

The cubrid_broker.conf file can be set in a variety of ways according to configuration of the broker. It can also be configured as separate equipment with the databases.txt file. In this example, the RW broker is configured in node A, node B, and node C.

The following is an example of the databases.txt file in node A, node B, and node C.

[%RW_broker]
...

# Broker mode setting parameter
ACCESS_MODE             =RW

Connection Configuration of Applications

Connect the application to access to the broker of node A, node B, or node C.

Connection connection = DriverManager.getConnection(
    "jdbc:CUBRID:nodeA:33000:testdb:::?charSet=utf-8&altHosts=nodeB:33000,nodeC:33000", "dba", "");

For details, see JDBC Configuration, CCI Configuration, and PHP Configuration in Environment Configuration.

Note

The data in the CUBRID HA group may lose integrity when there are multiple failures in this structure and the example is shown below.

  • n a situation where a failover occurs in the first slave node while replication in the second slave node is being delayed due to restart
  • In a situation where a failover re-occurs before replication reflection of a new master node is not complete due to frequent failover

In addition, if the mode of replication log copy process is ASYNC, the data in the CUBRID HA group may lose integrity.

If the data in the CUBRID HA group loses integrity for any of the reasons above, you can fix it by using Rebuilding Replication.

Remark

The moving path of a transaction log in these configurations is as follows:

_images/image33.png

Load Balancing Structure

The load balancing structure increases the availability of the CUBRID service by placing several nodes in the HA configuration (one master node and one slave node) and distributes read-load.

Because the replica nodes receive replication logs from the nodes in the HA configuration and maintain the same data, and because the nodes in the HA configuration do not receive replication logs from the replica nodes, its network and disk usage rate is lower than that of the multiple-slave structure.

Because replica nodes are not included in the HA structure, they provide read service without failover, even when all other nodes in the HA structure fail.

An Example of Node Configuration

_images/image34.png

You can configure each node in load balancing structure as shown below:

  • node A (master node)

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf:

      ha_port_id=59901
      ha_node_list=cubrid@nodeA:nodeB
      ha_replica_list=cubrid@nodeC:nodeD
      ha_db_list=testdb

  • node B (slave node): Configure this node in the same manner as node A.

  • node C, node D (replica node)

    • Configure the ha_mode of the cubrid.conf file to replica.

      ha_mode=replica

    • You can configure the cubrid_ha.conf file in the same manner as node A.

You must enter the list of DB server hosts in the order so that each broker can be connected appropriate HA or load balancing server in the databases.txt file of a broker node.

The following is an example of the databases.txt file in node A and node B.

#db-name    vol-path                  db-host       log-path                   lob-base-path
testdb     /home/cubrid/DB/testdb     nodeA:nodeB   /home/cubrid/DB/testdb/log file:/home/cubrid/CUBRID/testdb/lob

The following is an example of the databases.txt file in node C.

#db-name    vol-path                  db-host       log-path                   lob-base-path
testdb     /home/cubrid/DB/testdb     nodeC         /home/cubrid/DB/testdb/log file:/home/cubrid/CUBRID/testdb/lob

The following is an example the databases.txt in node D.

#db-name    vol-path                  db-host       log-path             lob-base-path
testdb     /home/cubrid/DB/testdb   nodeD   /home/cubrid/DB/testdb/log file:/home/cubrid/CUBRID/testdb/lob

The cubrid_broker.conf can be set in a variety of ways according to configuration of the broker. It can also be configured as separate equipment with the databases.txt file.

In this example, the RW broker is configured in node A and node B and the PHRO broker is configured in node C and node D.

The following is an example of cubrid_broker.conf in node A and node B.

[%RW_broker]
...

# Broker mode setting parameter
ACCESS_MODE             =RW

The following is an example cubrid_broker.conf in node C.

[%PHRO_broker]
...

# Broker mode setting parameter
ACCESS_MODE             =PHRO
PREFERRED_HOSTS         =nodeC:nodeD

The following is an example cubrid_broker.conf in node D.

[%PHRO_broker]
...

# Broker mode setting parameter
ACCESS_MODE             =PHRO
PREFERRED_HOSTS         =nodeD:nodeC

Connection Configuration of Applications

Connect the application to access in read/write mode to the broker of node A or node B. The following is an example of a JDBC application.

Connection connection = DriverManager.getConnection(
    "jdbc:CUBRID:nodeA:33000:testdb:::?charSet=utf-8&altHosts=nodeB:33000", "dba", "");

Connect the application to access in read-only mode to the broker of node C or node D. The following is an example of a JDBC application.

Connection connection = DriverManager.getConnection(
    "jdbc:CUBRID:nodeC:33000:testdb:::?charSet=utf-8&altHosts=nodeD:33000", "dba", "");

For details, see JDBC Configuration, CCI Configuration, and PHP Configuration in Environment Configuration.

Remark

The path of a transaction log in these configurations is as follows:

_images/image35.png

Multiple-Standby Server Structure

Although its node structure has a single master node and a single slave node, many slave nodes from different services are physically configured in a single server.

This structure is for very small services in which the reading load of slave nodes is light. It is strictly for the availability of the CUBRID service. For this reason, when a master node that failed after a failover has been restored, the load must be moved back to the original master node to minimize the load of the server with multiple-slave nodes.

_images/image36.png

An Example of Node Configuration

You can configure each node in the basic structure of HA as shown below:

  • node AM, node AS : Configure them in the same manner.

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf.

      ha_port_id=10000
      ha_node_list=cubridA@Host1:Host5
      ha_db_list=testdbA1,testdbA2

  • node BM, node BS : Configure them in the same manner.

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf.

      ha_port_id=10001
      ha_node_list=cubridB@Host2:Host5
      ha_db_list=testdbB1,testdbB2

  • node CM, node CS : Configure them in the same manner.

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following example shows how to configure cubrid_ha.conf.

      ha_port_id=10002
      ha_node_list=cubridC@Host3:Host5
      ha_db_list=testdbC1,testdbC2

  • node DM, node DS : Configure them in the same manner.

    • Configure the ha_mode of the cubrid.conf file to on.

      ha_mode=on

    • The following is an example of the cubrid_ha.conf configuration.

      ha_port_id=10003
      ha_node_list=cubridD@Host4:Host5
      ha_db_list=testdbD1,testdbD2


HA Constraints

Supported Platforms

Currently, CUBRID HA is supported by Linux only. All nodes within CUBRID HA groups must be configured on the same platforms.

Table Primary Key

CUBRID HA synchronizes data among nodes with the following method (as known as transaction log shipping): It replicates the primary key-based replication logs generated from the server of a master node to a slave node and then reflects the replication logs to the slave node.

If data of the specific table within CUBRID HA groups is not synchronized, you should check whether the appropriate primary key has specified for the table.

Java Stored Procedure

Because using java stored procedures in CUBRID HA cannot be replicated, java stored procedures should be configured to all nodes. For more details, see Environment Configuration for Java Stored Function/Procedure.

Method

CUBRID HA synchronizes data among nodes within CUBRID HA groups based on replication logs. So using method that does not generate replication logs may cause data inconsistency among nodes within CUBRID HA groups.

Therefore, in CUBRID HA environment, it is not recommended to use method.

UPDATE STATISTICS Statement

The UPDATE STATISTICS statement which updates statistics is not replicated to the slave node.

Standalone Mode

The replication logs are not generated as for tasks performed in standalone mode. For this reason, data inconsistency among nodes within CUBRID HA groups may occur when performing tasks in standalone mode.

Serial Cache

To enhance performance, a serial cache does not access Heap and does not generate replication logs when retrieving or updating serial information. Therefore, if you use a serial cache, the current values of serial caches will be inconsistent among the nodes within CUBRID HA groups.

cubrid backupdb -r

This command is used to back up a specified database. If the -r option is used, logs that are not required for recovery will be deleted. This deletion may result in data inconsistency among nodes within CUBRID HA groups. Therefore, you must not use the -r option.

On-line backup

If you want to perform on-line backup in HA environment, add @hostnameafter the database name. hostnameis a name defined in $CUBRID_DATABASES/databases.txt. Specify "@localhost" because you generally perform on-line backup on the local database.

cubrid backupdb -C -D ./ -l 0 -z testdb@localhost

Backup during running database may occur disk I/O load. Therefore, it is recommended to run backup on slave DB than master DB.

INCR/DECR Functions

If you use INCR / DECR (click counter functions) in a slave node of HA configuration, an error is returned.

LOB (BLOB/CLOB) Type

In a CUBRID HA environment, the meta data (Locator) of a LOB column is replicated and LOB data is not replicated. Therefore, if storage of a LOB type is located on the local machine, no tasks corresponding to columns are allowed in slave nodes or master nodes after failover.

Note

On previous version of CUBRID 9.1, using triggers in CUBRID HA can cause duplicate executions. This may cause data inconsistency among nodes within CUBRID HA groups. Therefore, you should not use triggers on the previous version of 9.1.

Operational Scenarios

Scenario of Building New Slave Node

This scenario involves building a new slave node while operating a single master node, making a 1:1 master-slave scheme. Please note that only tables with a default key can be replicated. In addition, all of the volume directories of the master node and the slave node must be identical.

This scenario assumes that the database has been created by below commands.

export CUBRID_DATABASES=/home/cubrid/DB
mkdir $CUBRID_DATABASES/testdb
mkdir $CUBRID_DATABASES/testdb/log
cd $CUBRID_DATABASES/testdb
cubrid createdb testdb -L $CUBRID_DATABASES/testdb/log

At this time, the backup file is saved in the $CUBRID_DATABASES/testdb directory by default if the location is not specified.

Using the above instructions, build a new slave node by following these steps, in the order specified.

  1. Stop the master node service.

    [nodeA]$ cubrid service stop

  2. Set the master node HA and the slave node HA.

    • Set the $CUBRID/conf/cubrid.conf as identical for both the master node and the slave node.

      [service]
      service=server,broker,manager

      # Add the database name to run when starting the service
      server=testdb

      [common]
      ...

      # Add when configuring the HA (Logging parameters)
      log_max_archives=100
      force_remove_log_archives=no

      # Add when configuring the HA (HA mode)
      ha_mode=on

    • Set the $CUBRID/conf/cubrid_ha.conf as identical for both the master node and the slave node.

      [common]
      ha_port_id=59901

      # cubrid is a group name of HA system, nodeA and nodeB are host names.
      ha_node_list=cubrid@nodeA:nodeB

      ha_db_list=testdb
      ha_copy_sync_mode=sync:sync
      ha_apply_max_mem_size=500

    • Set the $CUBRID_DATABASES/databases.txt as identical for both the master node and the slave node.

      #db-name    vol-path        db-host     log-path     lob-base-path
      testdb       /home/cubrid/DB/testdb nodeA:nodeB   /home/cubrid/DB/testdb/log  file:/home/cubrid/DB/testdb/lob

    • Create a database directory to the slave node.

      [nodeB]$ cd $CUBRID_DATABASES
      [nodeB]$ mkdir testdb

    • Create the log directory to the slave node(same location with the master node).

      [nodeB]$ cd $CUBRID_DATABASES/testdb
      [nodeB]$ mkdir log

  3. Back up the database of the master node and copy the backup file to the slave node. If the location where the backup file will be saved in the master node is not specified, the location is set as the log directory of testdb by default. Copy the backup file to the same location in the slave node. testdb _bk0v000 is the backup volume file and testdb _bkvinf is the backup volume information file.

    [nodeA]$ cubrid backupdb -z -S testdb
    Backup Volume Label: Level: 0, Unit: 0, Database testdb, Backup Time: Thu Apr 19 16:05:18 2012
    [nodeA]$ cd $CUBRID_DATABASES/testdb/log
    [nodeA]$ scp testdb_bk* cubrid_usr@nodeB:/home/cubrid_usr/CUBRID/databases/testdb/log
    cubrid_usr@nodeB's password:
    testdb_bk0v000                            100% 6157KB   6.0MB/s   00:00
    testdb_bkvinf                             100%   66     0.1KB/s   00:00

  4. Recover the database in the slave node. At this time, the volume path of the master node must be identical to that of the slave node.

    [nodeB]$ cubrid restoredb -B $CUBRID_DATABASES/testdb/log demodb

  5. Start the master node

    [nodeA]$ cubrid heartbeat start

  6. After confirming that the master node has started, start the slave node. If nodeA is changed from to-be-master to master, it means that the master node has been successfully started.

    [nodeA]$ cubrid heartbeat status
    @ cubrid heartbeat status

     HA-Node Info (current nodeA, state master)
       Node nodeB (priority 2, state unknown)
       Node nodeA (priority 1, state master)

     ...

    [nodeB]$ cubrid heartbeat start

  7. Confirm that the HA configurations of the master node and the slave node are successfully running

    [nodeA]$ csql -u dba testdb@localhost -c"create table tbl(i int primary key);insert into tbl values (1),(2),(3)"

    [nodeB]$ csql -u dba testdb@localhost -c"select * from tbl"

                i
    =============
                1
                2
                3


Operation Scenario during Read/Write Service

The operation scenario written in this page is not affected by read/write services. Therefore, its impact on the services caused by CUBRID operation is very limited. There can be two types of operation scenarios in which failover occurs or it does not occur.

When Failover Does Not Occur

You can perform the following operations without stopping and restarting nodes in CUBRID HA groups.

General Operation Scenario Consideration
Online Backup Operation task is performed at each master node and slave node each during operation. Note that there may be a delay in the transaction of master node due to the operation task.
Schema change (excluding basic key change), index change, authorization change When an operation task occurs at a master node, it is automatically replication reflected to a slave node. Because replication log is copied and reflected to a slave node after an operation task is completed in a master node, operation task time is doubled. Changing schema must be processed without any failover. Index change and authority change other than the schema change can be performed by stopping each node and executing standalone mode (ex: the -S option of the csql utility) when the operation time is important.
Add volume Operation task is performed at each DB regardless of HA structure. Note that there may be a delay in the transaction of master node due to the operation task. If operation task time is an issue, operation task can be performed by stopping each node and executing standalone mode (ex: the -S of the cubrid addvoldb utility).
Failure node server replacement It can be replaced without restarting the CUBRID HA group when a failure occurs. The failure node must be registered in the ha_node_list of CUBRID HA group, and the node name must not be changed during replacement.
Failure broker server replacement It can be replaced without restarting the broker when a failure occurs. The connection to a broker replaced at a client can be made by rcTime which is configured in URL string.
DB server expansion You can execute cubrid heartbeat reload in each node after configuration change (ha_node_list, ha_replica_list) without restarting the previously configured CUBRID HA group. Starts or stops the copylogdb/applylogdb processes which were added or deleted by loading changed configuration information.
Broker server expansion Run additional brokers without restarting existing brokers. Modify the URL string to connect to a broker where a client is added.

When Failover Occurs

You must stop nodes in CUBRID HA group and complete operation before performing the following operations.

General Operation Scenario Consideration
DB server configuration change A node whose configuration is changed is restarted when the configuration in cubrid.conf is changed.
Change broker configuration, add broker, and delete broker A broker whose configuration is changed is restarted when the configuration in cubrid_broker.conf is changed.
DBMS version patch Restart nodes and brokers in HA group after version patch. Version patch means there is no change in the internal protocol, volume, and log of CUBRID.

Operation Scenario during Read Service

The operation scenario written in this page is only applied to read service. It is required to allow read service only or dynamically change mode configuration of broker to Read Only. There can be two types of operation scenarios in which failover occurs or it does not occur.

When Failover Does Not Occur

You can perform the following operations without stopping and restarting nodes in CUBRID HA groups.

General Operation Scenario Consideration
Schema change (primary key change) When an operation task is performed at the master node, it is automatically reflected to the slave node. In order to change the primary key, the existing key must be deleted and a new one added. For this reason, replication reflection may not occur due to the HA internal structure which reflects primary key-based replication logs. Therefore, operation tasks must be performed during the read service.
Schema change (excluding basic key change), index change, authorization change When an operation task is performed at the master node, it is automatically reflected to the slave node. Because replication log is copied and reflected to a slave node after an operation task is completed in a master node, operation task time is doubled. Changing schema must be processed without any failover. Index change and authority change other than the schema change can be performed by stopping each node and executing standalone mode (ex: the span class="nkeyword">-S option of csql ) when the operation time is important.

When Failover Occurs

You must stop nodes in CUBRID HA group and complete operation before performing the following operations.

General Operation Scenario Consideration
DBMS version upgrade Restart each node and broker in the CUBRID HA group after they are upgraded. A version upgrade means that there have been changed in the internal protocol, volume, or log of CUBRID. Because there are two different versions of the protocols, volumes, and logs of a broker and server during an upgrade, an operation task must be performed to make sure that each client and broker (before/after upgrade) are connected to the corresponding counterpart in the same version.
Massive data processing (INSERT/UPDATE/DELETE) Stop the node that must be changed, perform an operation task, and then execute the node. This processes massive data that cannot be segmented.

Operation Scenario after Service Stop

You must stop all nodes in CUBRID HA group before performing the following operation.

General Operation Scenario Consideration
Changing the host name and IP of a DB server Stop all nodes in the CUBRID HA group, and restart them after the operation task. When a host name has been changed, change the databases.txt file of each broker and reset the broker connection with cubrid broker reset.

Detection of Replication Mismatch and Rebuild

Detection of Replication Mismatch

Replication mismatch between replication nodes, indicating that data of the master node and the slave node is not identical, can be detected to some degree by the following process. However, please note that there is no more accurate way to detect a replication mismatch than by directly comparing the data of the master node to the data of the slave node. If it is determined that there has been a replication mismatch, you should rebuild the database of the master node to the slave node (see Rebuilding Replication.)

  • On the slave node, execute cubrid applyinfo to check the "Fail count" value. If the "Fail count" is 0, it can be determined that no transaction has failed in replication (see cubrid applyinfo.)

    [nodeB]$ cubrid applyinfo -L /home/cubrid/DB/testdb_nodeA -r nodeA -a testdb

     *** Applied Info. ***
    Committed page                 : 1913 | 2904
    Insert count                   : 645
    Update count                   : 0
    Delete count                   : 0
    Schema count                   : 60
    Commit count                   : 15
    Fail count                     : 0
    ...

  • To check whether copying replication logs has been delayed or not on the slave node, execute cubrid applyinfo and compare the "Append LSA" value of "Copied Active Info." to the "Append LSA" value of "Active Info.". If there is a big difference between the two values, it means that delay has occurred while copying the replication logs to the slave node (see cubrid applyinfo.)

    [nodeB]$ cubrid applyinfo -L /home/cubrid/DB/testdb_nodeA -r nodeA -a testdb

    ...

     *** Copied Active Info. ***
    DB name                        : testdb
    DB creation time               : 11:28:00.000 AM 12/17/2010  (1292552880)
    EOF LSA                        : 1913 | 2976
    Append LSA                     : 1913 | 2976
    HA server state                : active

     ***  Active Info. ***
    DB name                        : testdb
    DB creation time               : 11:28:00.000 AM 12/17/2010  (1292552880)
    EOF LSA                        : 1913 | 2976
    Append LSA                     : 1913 | 2976
    HA server state                : active

  • If a delay seems to occur when copying the replication logs, check whether the network line speed is slow, whether there is sufficient free disk space, disk I/O is normal, etc.

  • To check the delay in applying the replication log in the slave node, execute cubrid applyinfo and compare the "Committed page" value of "Applied Info." to the "EOF LSA" value of "Copied Active Info.". If there is a big difference between the two values, it means that a delay has occurred while applying the replication logs to the slave database (see cubrid applyinfo.)

    [nodeB]$ cubrid applyinfo -L /home/cubrid/DB/testdb_nodeA -r nodeA -a testdb

     *** Applied Info. ***
    Committed page                 : 1913 | 2904
    Insert count                   : 645
    Update count                   : 0
    Delete count                   : 0
    Schema count                   : 60
    Commit count                   : 15
    Fail count                     : 0

     *** Copied Active Info. ***
    DB name                        : testdb
    DB creation time               : 11:28:00.000 AM 12/17/2010  (1292552880)
    EOF LSA                        : 1913 | 2976
    Append LSA                     : 1913 | 2976
    HA server state                : active
    ...

  • If the delay in applying the replication logs is too long, it may be due to a transaction with a long execution time. If the transaction is performed normally, a delay in applying the replication logs may normally occur. To determine whether it is normal or abnormal, continuously execute cubrid applyinfo and check whether applylogdb continuously applies replication logs to the slave node or not.

  • Check the error log message created by the copylogdb process and the applylogdb process (see the error message).

  • Compare the number of records on the master database table to that on the slave database table.

HA Error Messages

Replication Log Copy Process (copylogdb)

The error messages from the replication log copy process are stored in $CUBRID/log/db-name@remote-node-name_copylogdb.err. The severity levels of error messages found in the replication log copy process are as follows: fatal, error, and notification. The default level is error. Therefore, to record notification error messages, it is necessary to change the value of error_log_level in the cubrid.conf file. For details, see Error Message-Related Parameters.

Initialization Error Messages

The error messages that can be found in initialization stage of replication log copy process are as follows:

Error Code Error Message Severity Description Solution
10 Cannot mount the disk volume ?. error Fails to open a replication log file. Check if replication logs exist. For the location of replication logs, see Default Environment Configuration.
78 Internal error: an I/O error occurred while reading logical log page ? (physical page ?) of ? fatal Fails to read a replication log. Check the replication log by using the cubrid applyinfo utility.
81 Internal error: logical log page ? may be corrupted. fatal A replication log page error, in which the replication log copy process has been copied from the connected database server process. Check the error log of the database server process to which the replication log copy process is connected. This error log can be found in $CUBRID/log/server.
1039 log writer: log writer has been started. mode: ? error The replication log copy process has been successfully initialized and started. No action is required because this error message is recorded to display the start information of the replication log copy process. Ignore any error messages which are displayed between the start of replication log copy process and output of this error message since there is a possibility that an error message is shown up even in normal situation.

Replication Log Request and Reception Error Messages

The replication log copy process requests a replication log from the connected database server and receives the corresponding replication log. Error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
89 Log ? is not included in the given database. error The previously replicated log and the log to be replication do not match. Check information of the database server/host to which the replication log copy process is connected. If you need to change the database server/host information, reinitialize it by deleting the existing replication log and then restarting.
186 Data receiver error from the server error Incorrect information has been received from the database server to which the replication log copy process is connected. It will be internally recovered.
199 The server is not responding. error The connection to the database server has been terminated. It will be internally recovered.

Replication Log Write Error Messages

The replication log copy process copies the replication log that was received from the connected database server process to the location (ha_copy_log_base) specified in the cubrid_ha.conf file. Error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
10 Cannot mount the disk volume ?. error Fails to open a replication log file. Check if replication logs exist.
79 Internal error: an I/O error occurred while writing logical log page ? (physical page ?) of ?. fatal Fails to write a replication log. It will be internally recovered.
80 An error occurred due to insufficient space in operating system device while writing logical log page ? (physical page ?) of ?. Up to ? bytes in size are allowed. fatal Fails to write a replication log due to insufficient file system space. Check if there is sufficient space left in the disk partition.

Replication Log Archive Error Messages

The replication log copy process periodically archives the replication logs that have been received from the connected database server process. Error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
78 Internal error: an I/O error occurred while reading logical log page ? (physical page ?) of ?. fatal Fails to read a replication log during archiving. Check the replication log by using the cubrid applyinfo utility.
79 Internal error: an I/O error occurred while writing logical log page ? (physical page ?) of ?. fatal Fails to write an archive log. It will be internally recovered.
81 Internal error: logical log page ? may be corrupted. fatal Found an error on the replication log during archiving. Check the replication log by using the cubrid applyinfo utility.
98 Cannot create an archive log ? to archive pages from ? to ?. fatal Fails to create an archive log file. Check if there is sufficient space left in the disk partition.
974 An archive log ? to archive pages from ? to ? has been created. notification Information on an archive log file No action is required because this error message is recorded to keep information on newly created archive.

Stop and Restart Error Messages

Error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
1037 log writer: log writer is terminated by signal. error The copylogdb process has been terminated by a specified signal. It will be internally recovered.

Replication Log Reflection Process (applylogdb)

The error messages from the replication log reflection process are stored in $CUBRID/log/db-name@local-node-name_applylogdb_db-name_remote-node-name.err. The severity levels of error message found in the replication log reflection process are as follow: fatal, error, and notification. The default level is error. Therefore, to record notification error messages, it is necessary to change the value of error_log_level in the cubrid.conf file. For details, see Error Message-Related Parameters.

Initialization Error Messages

The error messages that can be found in initialization stage of replication log reflection process are as follows:

Error Code Error Message Severity Description Solution
10 Cannot mount the disk volume ?. error An applylogdb that is trying to reflect the same replication log is already running. Check if there is an applylogdb process that is trying to reflect the same replication log.
1038 log applier: log applier has been started. required LSA: ?|?. last committed LSA: ?|?. error It will be started normally after initialization of applylogdb succeeds. No action is required because this error is recorded to display the start information of the replication log reflection process.

Log Analysis Error Messages

The replication log reflection process reads, analyzes, and reflects the replications logs that have been copied by the replication log copy process. The error message that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
13 An I/O error occurred while reading page ? in volume ?. error Fails to read a log page to be reflected. Check the replication log by using the cubrid applyinfo utility.
17 Internal error: Trying to read page ? of the volume ? which has been already released. fatal Trying to read a log page that does not exist in the replication log. Check the replication log by using the cubrid applyinfo utility.
81 Internal error: logical log page ? may be corrupted. fatal There is an inconsistency between an old log under replication reflection and the current log, or there is a replication log record error. Check the replication log by using the cubrid applyinfo utility.
82 Cannot mount the disk volume/file ?. error No replication log file exists. Check if replication logs exist. Check the replication log by using the cubrid applyinfo utility.
97 Internal error: unable to find log page ? in log archives. error No log page exists in the replication log. Check the replication log by using the cubrid applyinfo utility.
897 Decompression failure error Fails to decompress the log record. Check the replication log by using the cubrid applyinfo utility.
1028 log applier: Unexpected EOF log record exists in the Archive log. LSA: ?|?. error Incorrect log record exists in the archive log. Check the replication log by using the cubrid applyinfo utility.
1029 log applier: Incorrect log page/offset. page HDR: ?|?, final: ?|?, append LSA: ?|?, EOF LSA: ?|?, ha file status: ?, is end-of-log: ?. error Incorrect log record exists. Check the replication log by using the cubrid applyinfo utility.
1030 log applier: Incorrect log record. LSA: ?|?, forw LSA: ?|?, backw LSA: ?|?, Trid: ?, prev tran LSA: ?|?, type: ?. error Log record header error Check the replication log by using the cubrid applyinfo utility.

Replication Log Reflection Error Messages

The replication log reflection process reads, analyzes, and reflects the replication logs that have been copied by the replication log copy process. Error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
72 The transaction (index ?, ?@?|?) has been cancelled by system. error Fails to reflect replication due to deadlock, etc. It will be recovered internally.
111 Your transaction has been cancelled due to server failure or a mode change. error Fails to reflect replication because the database server process in which replication is supposed to be reflected has been terminated or its mode has been changed. It will be recovered internally.
191 Cannot connect to server ? on ?. error The connection to the database server process in which replication is supposed to be reflected has been terminated. It will be recovered internally.
195 Server communication error: ?. error The connection to the database server process in which replication is supposed to be reflected has been terminated. It will be recovered internally.
224 The database has not been resumed. error The connection to the database server process in which replication is supposed to be reflected has been terminated. It will be recovered internally.
1027 log applier: Failed to change the reflection status from ? to ?. error Fails to change of replication reflection. It will be recovered internally.
1031 log applier: Failed to reflect the Schema replication log. class: ?, schema: ?, internal error: ?. error Fails to reflect SCHEMA replication. Check the consistency of the replication. If it is inconsistent, reconfigure the HA replication.
1032 log applier: Failed to reflect the Insert replication log. class: ?, key: ?, internal error: ?. error Fails to reflect INSERT replication. Check the consistency of the replication. If it is inconsistent, reconfigure the HA replication.
1033 log applier: Failed to reflect the Update replication log. class: ?, key: ?, internal error: ?. error Fails to reflect UPDATE replication. Check the consistency of the replication. If it is inconsistent, reconfigure the HA replication.
1034 log applier: Failed to reflect the Delete replication log. class: ?, key: ?, internal error: ?. error Fails to reflect DELETE replication. Check the consistency of the replication. If it is inconsistent, reconfigure the HA replication.
1040 HA generic: ?. notification Changes the last record of the archive log or replication reflection status. No action is required because this error message is recorded to provide general information.

Stop and Restart Error Messages

The error messages that can be found in this stage are as follows:

Error Code Error Message Severity Description Solution
1035 log applier: The memory size (? MB) of the log applier is larger than the maximum memory size (? MB), or is doubled the starting memory size (? MB) or more. required LSA: ?|?. last committed LSA: ?|?. error The replication log reflection process has been restarted due to reaching the maximum memory size limit. It will be recovered internally.
1036 log applier: log applier is terminated by signal. error The replication log reflection process has been terminated by a specified signal. It will be recovered internally.

Rebuilding Replication

Replication rebuilding is required in CUBRID HA when data in the CUBRID HA group is inconsistent because of multiple failures in multiple-slave node structure, or because of a generic error. Rebuilding replications in CUBRID HA is perform done through a ha_make_slavedb.sh script. With the cubrid applyinfo utility, you can check the replication progress; however replication inconsistency is not detected. If you want to determine whether replication is inconsistent correctly, you must examine data of the master and slave nodes yourself.

For rebuilding replications, the following environment must be the same in the slave, master, and replica nodes.

  • CUBRID version
  • Environmental variable ($CUBRID, $CUBRID_DATABASES, $LD_LIBRARY_PATH, $PATH)
  • The paths of database volume, log, and replication
  • Username and password of the Linux server
  • HA-related parameters except for ha_mode and ha_copy_sync_mode, ha_ping_hosts

ha_make_slavedb.sh Script

To rebuild replications, use the ha_make_slavedb.sh script. This script is located in $CUBRID/share/scripts/ha. Before rebuilding replications, the following items must be configured for the environment of the user. This script is supported since the version 2008 R2.2 Patch 9 and its configuration is different from 2008 R4.1 Patch 2 or earlier. This document describes it in CUBRID 2008 R4.1 Patch 2 or later.

  • target_host : The host name of the source node (master node in general) for rebuilding replication. It should be registered in /etc/hosts. A slave node can rebuild replication by using the master node or the replica node as the source. A replica node can rebuild replication by using the slave node or another replica node as the source. If you want rebuild replication by using the slave node or the replica node as the source, moderately large value of ha_copy_log_max_archives parameter in cubrid_ha.conf should be specified.
  • repl_log_home : Specifies the home directory of the replication log of the master node. It is usually the same as $CUBRID_DATABASES. You must enter an absolute path and should not use a symbolic link. You also cannot use a slash (/) after the path.

The following are optional items:

  • db_name : Specifies the name of the database to be replicated. If not specified, the first name that appears in ha_db_list in $CUBRID/conf/cubrid_ha.conf is used.
  • backup_dest_path : Specifies the path in which the backup volume is created when executing backupdb in source node for rebuilding replication.
  • backup_option : Specifies necessary options when executing backupdb in source node in which replication will be rebuilt.
  • restore_option : Specifies necessary options when executing restoredb in slave node in which replication will be rebuilt.
  • scp_option : Specifies the scp option which enables backup of source node in which replication is rebuilt to copy into the slave node. The default option is -l 131072, which does not impose an overload on network (limits the transfer rate to 16 MB).

Once the script has been configured, execute the ha_make_slavedb.sh script in slave node in which replication will be rebuilt. When the script is executed, rebuilding replication happens in a number of phases. To move to the next stage, the user must enter an appropriate value. The following are the descriptions of available values.

  • yes : Keeps going.
  • no : Does not move forward with any stages from now on.
  • skip: Skips to the next stage. This input value is used to ignore a stage that has not necessarily been executed when retrying the script after it has failed.

Constraints

  • Remote ssh connection must be available when using the script because it executes connection commands in the remote node by using expect and ssh.
  • Online backup of rebuilding replication node : Existing backup of the replica or slave nodes cannot be used for rebuilding replication. Therefore, you must use the online backup of the master node that is automatically created by the script.
  • Error while executing the rebuilding replication script : The rebuilding replication script is not automatically rolled back to its previous stage even when an error occurs during the execution. This is because the slave node cannot provide normal service before rebuilding replication script is executed. To return to the phase before rebuilding replication script is executed, you must back up the existing replication logs and db_ha_apply_info information which is internal catalog of the master and slave nodes before building replication is executed.

Remark

To replicate, you must copy the physical image of the database volume in the target node to the database of the node to be replicated. However, cubrid unloaddb backs up only logical images so replication using cubrid unloaddb and cubrid loaddb is unavailable. Because cubrid backupdb backs up physical images, replication is possible by using this utility. The ha_make_slavedb.sh script performs replication by using cubrid backupdb.

Example

The following example shows how to configure an original node for rebuilding replications as a master mode and rebuild a slave node from the master node.

_images/image37.png
  • The host name in master node: nodeA
  • The host name in slave node: nodeB

Rebuilding replications can be performed while the master node is running, however, it is recommended to execute this when there are just a few transactions per hour in order to minimize replication delay.

Before starting to rebuild replications by executing the ha_make_slavedb.sh script, stop the HA service of the slave node and configure the ha_make_slavedb.sh script as shown below. Configure the host name of the master node to replicate (nodeA) to target_host and configure the home directory of the replication log (default value: $CUBRID_DATABASES) to repl_log_home.

[nodeB]$ cubrid heartbeat stop

[nodeB]$ cd $CUBRID/share/scripts/ha
[nodeB]$ vi ha_make_slavedb.sh
target_host=nodeA

After configuration, execute the ha_make_slavedb.sh script on the slave node.

[nodeB]$ cd $CUBRID/share/scripts/ha
[nodeB]$ ./ha_make_slavedb.sh

When any error occurs while executing the script in step-by-step order, or if the script should be restarted before being stopped by entering n, you can enter s for the steps which have been succeeded and go to the next step.

  1. At this step, enter the password of a Linux account and password of DBA, the CUBRID database account, for HA rebuilding replication. Enter y to the question.

    ##### step 1 ###################################################################
    #
    # get HA/replica user password and DBA password
    #
    #  * warning !!!
    #   - Because ha_make_slavedb.sh uses expect (ssh, scp) to control HA/replica node,
    #     the script has to know these passwords.
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y


    Enter the password of a Linux account of the HA node and the password of DBA, the CUBRID database account. If you have not changed the password of DBA after installing CUBRID, press the <Enter> key without entering the password of DBA.

    HA/replica cubrid_usr's password :
    HA/replica cubrid_usr's password :

    testdb's DBA password :
    Retype testdb's DBA password :

  2. At this step, check whether the environment variables of the slave node are correct. Enter y to the question.

    ##### step 2 ###################################################################
    #
    #  ha_make_slavedb.sh is the script for making slave database more easily
    #
    #  * environment
    #   - db_name           : testdb
    #
    #   - master_host       : nodeA
    #   - slave_host        : nodeB
    #   - replica_hosts     :
    #
    #   - current_host      : nodeB
    #   - current_state     : slave
    #
    #   - target_host       : nodeA
    #   - target_state      : master
    #
    #   - repl_log_home     : /home/cubrid_usr/CUBRID/databases
    #   - backup_dest_path  : /home/cubrid_usr/.ha/backup
    #   - backup_option     :
    #   - restore_option    :
    #
    #  * warning !!!
    #   - environment on slave must be same as master
    #   - database and replication log on slave will be deleted
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

  3. At this step, copy the HA-related scripts of the slave node to the master node. Enter y to the question. Then the password will be asked for when you access the master node in every step. In addition, the password will be asked for when you send a file by using the scp command.

    ##### step 3 ###################################################################
    #
    #  copy scripts to master node
    #
    #  * details
    #   - scp scripts to '~/.ha' on nodeA(master).
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    [nodeB]$ tar -zcf ha.tgz ha
    [nodeA]$ rm -rf /home/cubrid_usr/.ha
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.
    [nodeB]$ scp -l 131072 -r ./../ha.tgz cubrid_usr@nodeA:/home1/cubrid_usr
    cubrid_usr@nodeA's password:
    ha.tgz                    100%   10KB  10.4KB/s   00:00
    [nodeA]$ tar -zxf ha.tgz
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.
    [nodeA]$ mv ha /home/cubrid_usr/.ha
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.
    [nodeA]$ mkdir /home/cubrid_usr/.ha/backup
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.


    To skip the password entry while executing the scp command, configure the secret key of the scp to the slave node and the public key to the master node, as shown below. For more details, see How to Use ssh-keygen for Linux.

    1. Execute ssh-keygen -t rsa to check that .ssh/id_rsa file and .ssh/id_rsa.pub file have been created under the home directory of the Linux user account.
    2. Copy the id_rsa.pub file as a file named authorized_keys under the home directory of the Linux user account in master node.
    3. Execute a test to check that the file is copied without asking for the password (scp test.txt cubrid_usr@:/home/cubrid_usr/).
  4. At this step, copy the HA-related scripts to the replica node. In this scenario, if there is no replica node, skip this step and go to the next step by entering.

    ##### step 4 #####################################
    #
    #  copy scripts to replication node
    #
    #  * details
    #   - scp scripts to '~/.ha' on replication node.
    #
    ##################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    There is no replication server to copy scripts.

  5. At this step, check whether the environment variables of all nodes are correct. Enter y to the question.

    ##### step 5 ###################################################################
    #
    #  check environment of all ha nodes
    #
    #  * details
    #   - test $CUBRID == /home1/cubrid_usr/CUBRID
    #   - test $CUBRID_DATABASES == /home1/cubrid_usr/CUBRID/database
    #   - test -d /home1/cubrid_usr/CUBRID/database/testdb
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

  6. At this step, stop replication of the master node. Enter y to the question.

    ##### step 6 ###################################################################
    #
    #  suspend copylogdb/applylogdb on master if running
    #
    #  * details
    #   - deregister copylogdb/applylogdb on nodeA(master).
    #
    ################################################################################

        continue ? ([y]es / [n]o / [s]kip) : y

    [nodeA]$ sh /home/cubrid_usr/.ha/functions/ha_repl_suspend.sh -l /home/cubrid_usr/CUBRID/databases -d testdb -h nodeB -o /home/cubrid_usr/.ha/repl_utils.output
    cubrid_usr@nodeA's password:
    [nodeA]$ cubrid heartbeat deregister 9408
    suspend: (9408) cub_admin copylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB -m sync testdb@nodeB
    [nodeA]$ cubrid heartbeat deregister 9410
    suspend: (9410) cub_admin applylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB --max-mem-size=300 testdb@localhost


    heartbeat status on nodeA(master).

    [nodeA]$ cubrid heartbeat list
    @ cubrid heartbeat list

     HA-Node Info (current nodeA, state master)
       Node nodeB (priority 2, state unknown)
       Node nodeA (priority 1, state master)


     HA-Process Info (master 8362, state master)
       Copylogdb testdb@nodeB:/home/cubrid_usr/CUBRID/databases/testdb_nodeB (pid 9408, state deregistered)
       Server testdb (pid 9196, state registered_and_active)

    Connection to nodeA closed.
    Wait for 60s to deregister copylogdb/applylogdb.
    ............................................................

  7. At this step, delete the old replication log from the slave node and initialize the HA meta information table of the master node. Enter y to the question.

    ##### step 7 ###################################################################
    #
    #  remove old copy log of slave and init db_ha_apply_info on master
    #
    #  * details
    #   - remove old copy log of slave
    #   - init db_ha_apply_info on master
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    - 1. remove old copy log.

    [nodeA]$ rm -rf /home/cubrid_usr/CUBRID/databases/testdb_nodeB/*
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.

    - 2. init db_ha_apply_info.

    [nodeA]$ csql -C -u dba  --sysadm testdb@localhost -c "delete from db_ha_apply_info where db_name='testdb'"
    cubrid_usr@nodeA's password:
    Connection to nodeA closed.
    [nodeA]$ csql -C -u dba  --sysadm testdb@localhost -c "select * from db_ha_apply_info where db_name='testdb'"
    cubrid_usr@nodeA's password:

    === <Result of SELECT Command in Line 1> ===

    There are no results.
    Connection to nodeA closed.

  8. At this step, initialize the HA meta information table of replica node. In this scenario, if there is no replica node, skip this step and go to the next step by entering s.

    ##### step 8 ###################################################################
    #
    #  remove old copy log of slave and init db_ha_apply_info on replications
    #
    #  * details
    #   - remove old copy log of replica
    #   - init db_ha_apply_info on master
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    There is no replication server to init ha_info

  9. At this step, create a backup volume from the master node (target_host) for HA replication rebuilding. You can skip this step and go to the next step by entering s if there is an existing backup volume. There are some constraints for rebuilding replication by using the existing backup volume, which are as follows:

    • The archive log, including the transaction being executed during backup, must be in the master node (target_host); this means that a backup volume created long ago cannot be used.
    • The backup status information file must be created by using the -o option during backup. At this time, the path must be identical to the path of the backup volume file. The file name must be the db_name.bkup.output format. If the file name is not identical with the format, change the file name according to the format before executing the script.
    • The path of the existing backup volume and the status information file must be specified in the backup_dest_path parameter in the script. In other words, specify the absolute path of the directory containing the backup volume on the master node (target_host) to this parameter.
    ##### step 9 ###################################################################
    #
    #  online backup database  on master
    #
    #  * details
    #   - run 'cubrid backupdb -C -D ... -o ... testdb@localhost' on master
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    [nodeA]$ cubrid backupdb  -C -D /home/cubrid_usr/.ha/backup -o /home/cubrid_usr/.ha/backup/testdb.bkup.output testdb@localhost
    cubrid_usr@nodeA's password:
    Backup Volume Label: Level: 0, Unit: 0, Database testdb, Backup Time: Thu Apr 19 18:52:03 2012
    Connection to nodeA closed.
    [nodeA]$ cat /home/cubrid_usr/.ha/backup/testdb.bkup.output
    cubrid_usr@nodeA's password:
    [ Database(testdb) Full Backup start ]

    - num-threads: 2

    - compression method: NONE

    - backup start time: Thu Apr 19 18:52:03 2012

    - number of permanent volumes: 1

    - HA apply info: testdb 1334739766 715 8680

    - backup progress status

    -----------------------------------------------------------------------------
     volume name                  | # of pages | backup progress status    | done
    -----------------------------------------------------------------------------
     testdb_vinf                  |          1 | ######################### | done
     testdb                       |       6400 | ######################### | done
     testdb_lgar000               |       6400 | ######################### | done
     testdb_lgar001               |       6400 | ######################### | done
     testdb_lginf                 |          1 | ######################### | done
     testdb_lgat                  |       6400 | ######################### | done
    -----------------------------------------------------------------------------

    # backup end time: Thu Apr 19 18:52:06 2012

    [ Database(testdb) Full Backup end ]
    Connection to nodeA closed.

  10. At this step, copy the database backup of the master node to the slave node. Enter y to the question.

    ##### step 10 ###################################################################
    #
    #  copy testdb databases backup to current host
    #
    #  * details
    #   - scp databases.txt from target host if there's no testdb info on current host
    #   - remove old database and replication log if exists
    #   - make new database volume and replication path
    #   - scp  database backup to current host
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y


     - 1. check if the databases information is already registered.


     - there is already testdb information in /home/cubrid_usr/CUBRID/databases/databases.txt
    [nodeB]$ grep testdb /home/cubrid_usr/CUBRID/databases/databases.txt
    testdb          /home/cubrid_usr/CUBRID/databases/testdb        nodeA:nodeB /home/cubrid_usr/CUBRID/databases/testdb/log file:/home/cubrid_usr/CUBRID/databases/testdb/lob

     - 2. get db_vol_path and db_log_path from databases.txt.


     - 3. remove old database and replication log.

    [nodeB]$ rm -rf /home/cubrid_usr/CUBRID/databases/testdb/log
    [nodeB]$ rm -rf /home/cubrid_usr/CUBRID/databases/testdb
    [nodeB]$ rm -rf /home/cubrid_usr/CUBRID/databases/testdb_*

     - 4. make new database volume and replication log directory.

    [nodeB]$ mkdir -p /home/cubrid_usr/CUBRID/databases/testdb
    [nodeB]$ mkdir -p /home/cubrid_usr/CUBRID/databases/testdb/log
    [nodeB]$ mkdir -p /home/cubrid_usr/.ha
    [nodeB]$ rm -rf /home/cubrid_usr/.ha/backup
    [nodeB]$ mkdir -p /home/cubrid_usr/.ha/backup

     - 5. copy backup volume and log from target host

    cubrid_usr@nodeA's password:
    testdb_bkvinf              100%   49     0.1KB/s   00:00
    cubrid_usr@nodeA's password:
    testdb_bk0v000             100% 1540MB   7.8MB/s   03:18
    testdb.bkup.output         100% 1023     1.0KB/s   00:00

  11. At this step, restore the copied database backup to the slave node. Enter y to the question.

    ##### step 11 ###################################################################
    #
    #  restore database testdb on current host
    #
    #  * details
    #   - cubrid restoredb -B ... testdb current host
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    [nodeB]$ cubrid restoredb -B /home/cubrid_usr/.ha/backup  testdb

  12. At this step, configure the HA meta information table value of the slave node. Enter y to the question.

    ##### step 12 ###################################################################
    #
    #  set db_ha_apply_info on slave
    #
    #  * details
    #   - insert db_ha_apply_info on slave
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y



    1. get db_ha_apply_info from backup output(/home1/cubrid_usr/.ha/backup/testdb.bkup.output).

     - db_name       : testdb
     - db_creation   : 1349426614
     - pageid        : 86
     - offset        : 8800
     - log_path      : /home1/cubrid_usr/CUBRID/databases/testdb_nodeA



    2. select old db_ha_apply_info.

    [nodeA]$ csql -u DBA -S testdb -l -c "SELECT db_name, db_creation_time, copied_log_path, committed_lsa_pageid, committed_lsa_offset, committed_rep_pageid, committed_rep_offset, required_lsa_pageid, required_lsa_offset FROM db_ha_apply_info WHERE db_name='testdb'"

    === <Result of SELECT Command in Line 1> ===

    There are no results.



    3. insert new db_ha_apply_info on slave.

    [nodeB]$ csql --sysadm -u dba -S testdb -c "DELETE FROM db_ha_apply_info WHERE db_name='testdb'"
    [nodeB]$ csql --sysadm -u DBA -S testdb -c "INSERT INTO  db_ha_apply_info VALUES (       'testdb',       datetime '10/05/2012 17:43:34',         '/home1/cubrid_usr/DB/testdb_nodeA',         86, 8800,       86, 8800,       86, 8800,       86, 8800,       86, 8800,       86, 8800,       NULL,   NULL,   NULL,   0,      0,      0,      0,      0,      0,      0,      NULL )"
    [nodeB]$ csql -u DBA -S testdb -l -c "SELECT db_name, db_creation_time, copied_log_path, committed_lsa_pageid, committed_lsa_offset, committed_rep_pageid, committed_rep_offset, required_lsa_pageid, required_lsa_offset FROM db_ha_apply_info WHERE db_name='testdb'"

    === <Result of SELECT Command in Line 1> ===

    <00001> db_name             : 'testdb'
            db_creation_time    : 05:43:34.000 PM 10/05/2012
            copied_log_path     : '/home1/cubrid_usr/CUBRID/databases/testdb_nodeA'
            committed_lsa_pageid: 86
            committed_lsa_offset: 8800
            committed_rep_pageid: 86
            committed_rep_offset: 8800
            required_lsa_pageid : 86
            required_lsa_offset : 8800

  13. At this step, initial the replication log of the master node and then copy the storage log of the master node to the slave node. Enter y to the question.

    ##### step 13 ###################################################################
    #
    #  make initial replication active log on master, and copy archive logs from
    #  master
    #
    #  * details
    #   - remove old replication log on master if exist
    #   - start copylogdb to make replication active log
    #   - copy archive logs from master
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y


     - 1. remove old replication log.

    [nodeB]$ rm -rf /home/cubrid_usr/CUBRID/databases/testdb_nodeA
    [nodeB]$ mkdir -p /home/cubrid_usr/CUBRID/databases/testdb_nodeA

     - 2. start copylogdb to initiate active log.


     - cubrid service stop
    [nodeB]$ cubrid service stop >/dev/null 2>&1

     - start cub_master
    [nodeB]$ cub_master >/dev/null 2>&1

     - start copylogdb and wait until replication active log header to be initialized
    [nodeB]$ cub_admin copylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeA -m 3 testdb@nodeA >/dev/null 2>&1 &

    ...

     - cubrid service stop
    [nodeB]$ cubrid service stop >/dev/null 2>&1

     - check copied active log header
    [nodeB]$  cubrid applyinfo -L /home/cubrid_usr/CUBRID/databases/testdb_nodeA testdb | grep -wqs "DB name"

     - 3. copy archive log from target.

    cubrid_usr@nodeA's password:
    testdb_lgar000             100%  512MB   3.9MB/s   02:11

  14. At this step, restart the copylogdb process and the applylogdb process of the master node. Enter y to the question.

    ##### step 14 ###################################################################
    #
    #  restart copylogdb/applylogdb on master
    #
    #  * details
    #   - restart copylogdb/applylogdb
    #
    ################################################################################

       continue ? ([y]es / [n]o / [s]kip) : y

    [nodeA]$ sh /home/cubrid_usr/.ha/functions/ha_repl_resume.sh -i /home/cubrid_usr/.ha/repl_utils.output
    cubrid_usr@nodeA's password:
    [nodeA]$ cub_admin copylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB -m sync testdb@nodeB >/dev/null 2>&1 &
    resume: cub_admin copylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB -m sync testdb@nodeB
    [nodeA]$ cub_admin applylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB --max-mem-size=300 testdb@localhost >/dev/null 2>&1 &
    resume: cub_admin applylogdb -L /home/cubrid_usr/CUBRID/databases/testdb_nodeB --max-mem-size=300 testdb@localhost

     - check heartbeat list on (master).

    [nodeA]$ cubrid heartbeat status
    @ cubrid heartbeat status

     HA-Node Info (current nodeA, state master)
       Node nodeB (priority 2, state unknown)
       Node nodeA (priority 1, state master)

     HA-Process Info (master 11847, state master)
       Server testdb (pid 11853, state registered_and_active)


    Connection to nodeA closed.

  15. At this step, the result of building the slave node is printed to check whether it was successful or failed.

    ##### step 15 ##################################################################
    #
    #  completed
    #
    ################################################################################
    .


    After the ha_make_slavedb.sh script has been stopped, check the HA status from the slave node and then run the HA.

    [NodeB]$ cubrid heartbeat status
    @ cubrid heartbeat status
    ++ cubrid master is not running.
    [NodeB]$ cubrid heartbeat start
    @ cubrid heartbeat start
    @ cubrid master start
    ++ cubrid master start: success

    @ HA processes start
    @ cubrid server start: testdb

    This may take a long time depending on the amount of recovery works to do.

    CUBRID 2008 R4.4

    ++ cubrid server start: success
    @ copylogdb start
    ++ copylogdb start: success
    @ applylogdb start
    ++ applylogdb start: success
    ++ HA processes start: success
    ++ cubrid heartbeat start: success
    [nodeB ha]$ cubrid heartbeat status
    @ cubrid heartbeat status

     HA-Node Info (current nodeB, state slave)
       Node nodeB (priority 2, state slave)
       Node nodeA (priority 1, state master)

     HA-Process Info (master 26611, state slave)
       Applylogdb testdb@localhost:/home/cubrid_usr/CUBRID/databases/testdb_nodeA (pid 26831, state registered)
       Copylogdb testdb@nodeA:/home/cubrid_usr/CUBRID/databases/testdb_nodeA (pid 26829, state registered)
       Server testdb (pid 26617, state registered)
